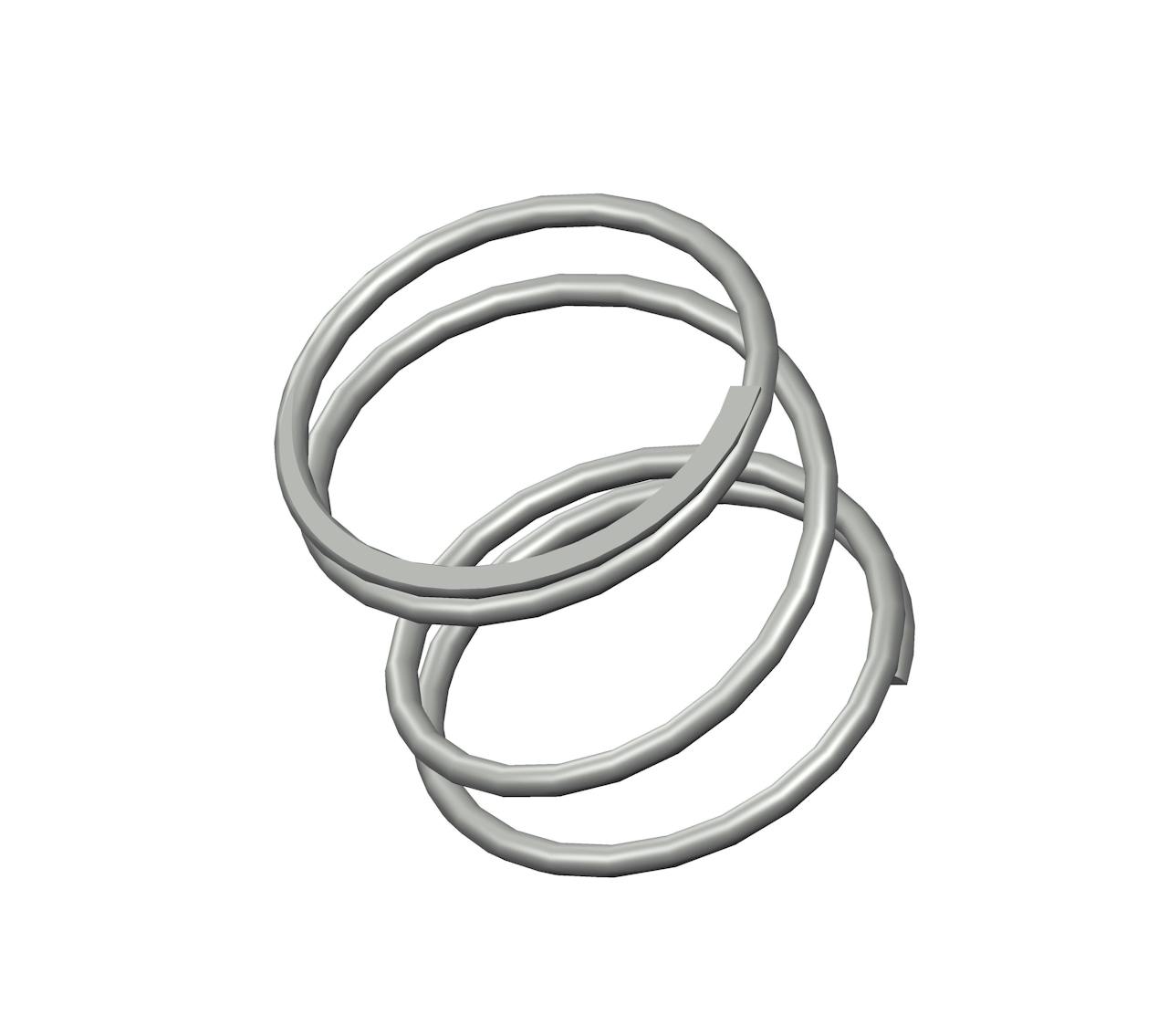

1867 - 1.75 Inch Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Regular compression spring in Spring Steel with 4 total coils and Closed & Ground ends. This spring features an O.D. of 1.906 Inch, and an I.D. of 1.666 Inch.

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 1867
Ends Closed & Ground
Finish Zinc
Free Length 1.75 in
Inside Diameter 1.666 in
Material Spring Steel
Outside Diameter 1.906 in
Part Type Standard
Rate 26 lbs/in
SKU 1867CS
Solid Length 0.48 in
Suggested Max Deflection 1.1 in
Suggested Max Load 29 lbf
Total Coils 4
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 1867
Ends Closed & Ground
Finish Zinc
Free Length 44.45 mm
Inside Diameter 42.32 mm
Material Spring Steel
Outside Diameter 48.41 mm
Part Type Standard
Rate 4.55 N/mm
SKU 1867CS
Solid Length 12.19 mm
Suggested Max Deflection 27.94 mm
Suggested Max Load 128.99 N
Total Coils 4
Wire Diameter 3.05 mm
The 1867 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality hard drawn and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 1867CS compression spring is designed with a free length of 0.59" total of 4 coils, and a rate of 90 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 1867 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
