Century Spring

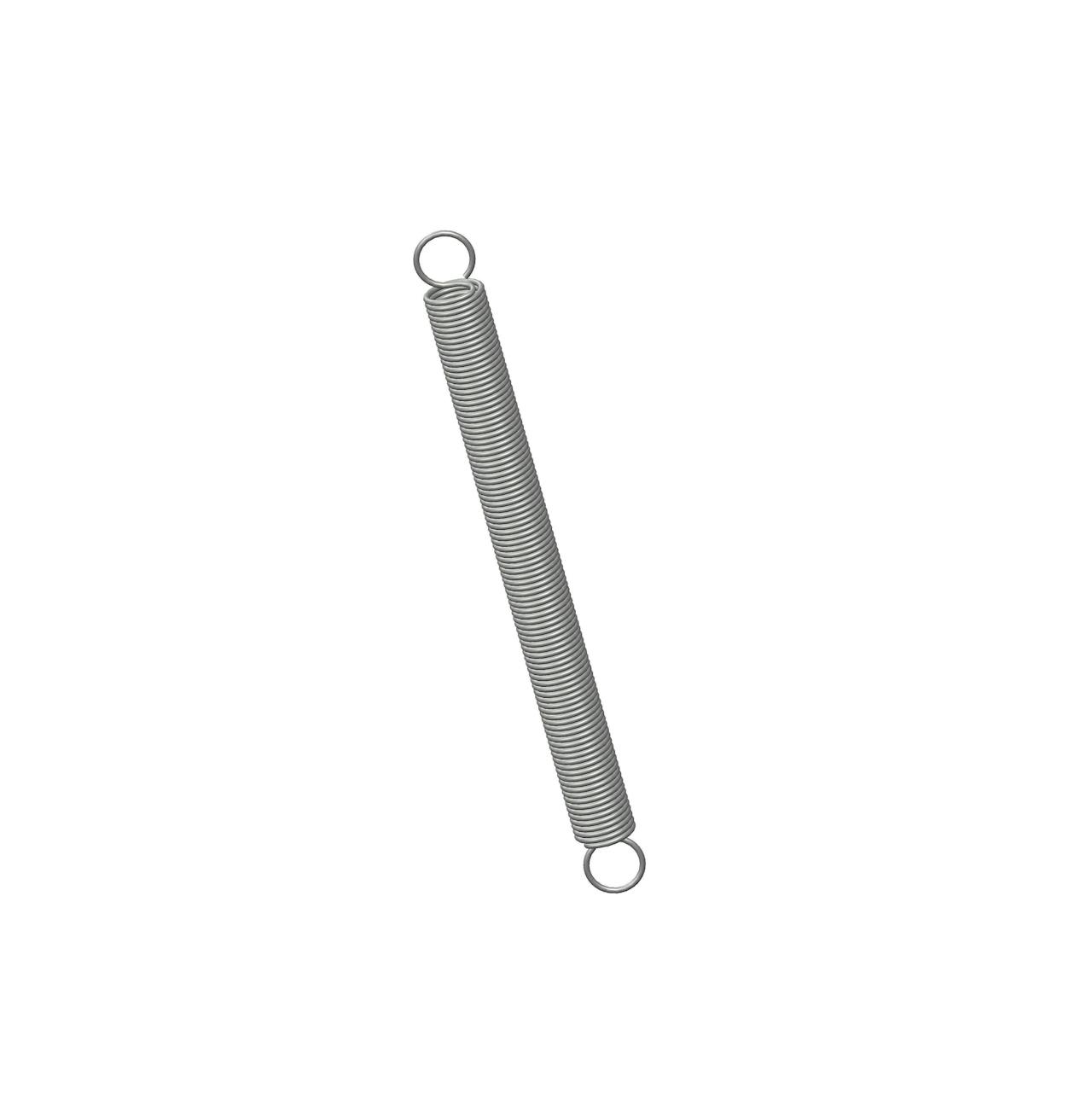

310CS - 3.25 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.281 Inch and an initial tension of 0.4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 310
Ends Full Loop
Finish Zinc
Initial Tension 0.4 lb
Length 3.25 in
Material Music Wire
Outside Diameter 0.281 in
Part Type Standard
Rate 0.53 lbs/in
SKU 310CS
Sugg Max Deflection 6.6 in
Sugg Max Load 3.9 lbf
Wind Direction Left
Wire Diameter 0.028 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 310
Ends Full Loop
Finish Zinc
Initial Tension 0.18 kg
Length 82.55 mm
Material Music Wire
Outside Diameter 7.14 mm
Part Type Standard
Rate 0.09 N/mm
SKU 310CS
Sugg Max Deflection 167.64 mm
Sugg Max Load 17.35 N
Wind Direction Left
Wire Diameter 0.71 mm
