Century Spring

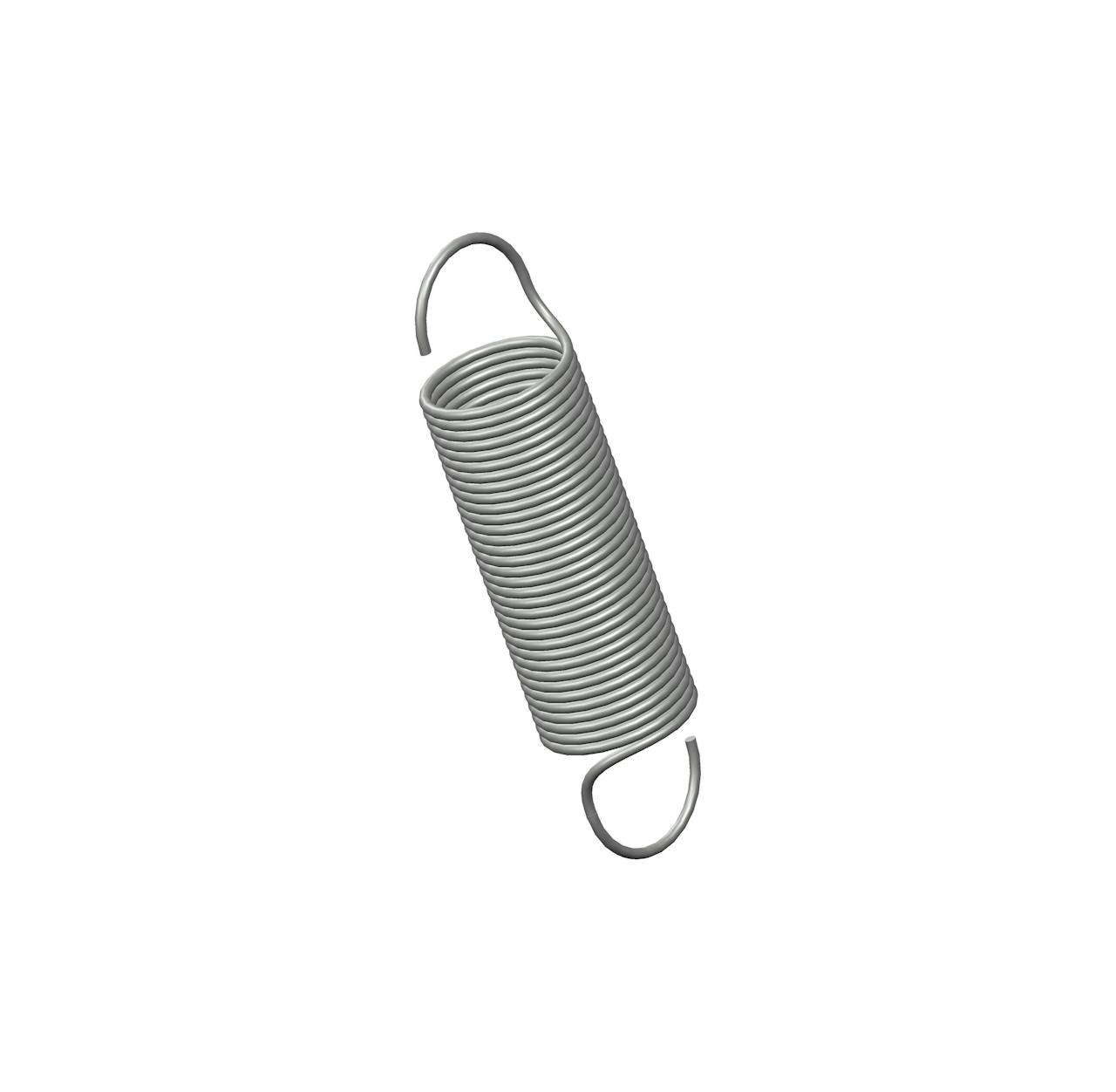

179-ACS - 1.5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.343 Inch and an initial tension of 0.17 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 179-A
Ends Full Loop
Finish Zinc
Initial Tension 0.17 lb
Length 1.5 in
Material Music Wire
Outside Diameter 0.343 in
Part Type Standard
Rate 0.4 lbs/in
SKU 179-ACS
Sugg Max Deflection 5.2 in
Sugg Max Load 2.3 lbf
Wind Direction Left
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 179-A
Ends Full Loop
Finish Zinc
Initial Tension 0.08 kg
Length 38.1 mm
Material Music Wire
Outside Diameter 8.71 mm
Part Type Standard
Rate 0.07 N/mm
SKU 179-ACS
Sugg Max Deflection 132.08 mm
Sugg Max Load 10.23 N
Wind Direction Left
Wire Diameter 0.64 mm
