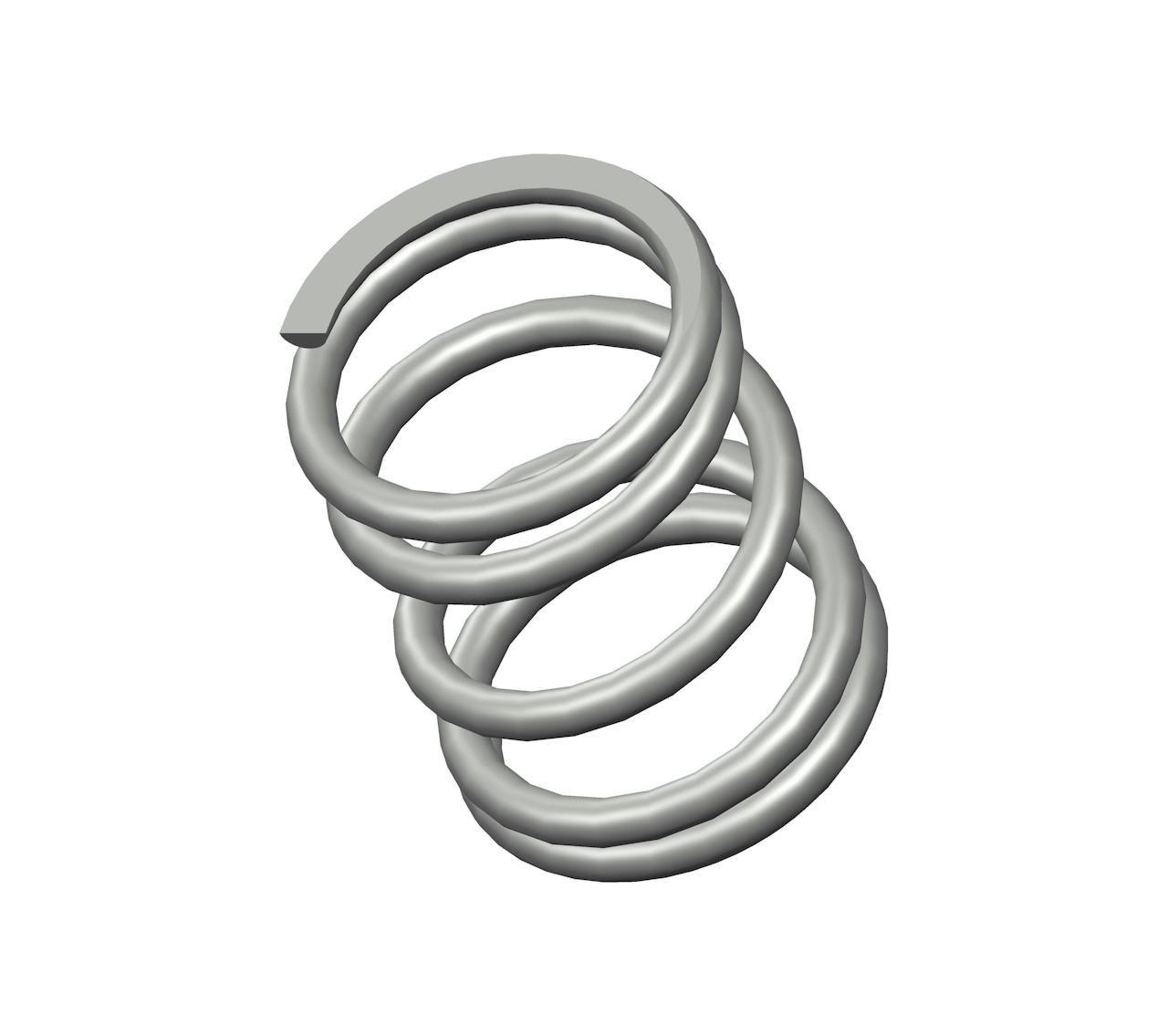

B17-167CS - 1.84" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.437", and an I.D. of 1.125".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-167 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.84 in |
| Inside Diameter | 1.125 in |
| Material | Spring Steel |
| Outside Diameter | 1.437 in |
| Part Type | Standard |
| Rate | 135 lbs/in |
| SKU | B17-167CS |
| Solid Length | 0.78 in |
| Suggested Max Deflection | 0.58 in |
| Suggested Max Load | 79 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.156 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-167 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 46.74 mm |
| Inside Diameter | 28.58 mm |
| Material | Spring Steel |
| Outside Diameter | 36.5 mm |
| Part Type | Standard |
| Rate | 23.64 N/mm |
| SKU | B17-167CS |
| Solid Length | 19.81 mm |
| Suggested Max Deflection | 14.73 mm |
| Suggested Max Load | 351.39 N |
| Total Coils | 5 |
| Wire Diameter | 3.96 mm |
The compression spring B17-167CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B17-167 compression spring design exhibits exceptional tensile strength and resilience.
The B17-167 design is manufactured with a free length of 1.84", with an outer diameter of 1.437", an inner diameter of 1.125", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 135 lbs/in.
The B17-167CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B17-167 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B17-167 design is manufactured with a free length of 1.84", with an outer diameter of 1.437", an inner diameter of 1.125", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 135 lbs/in.
The B17-167CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B17-167 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
