12444CS - 10" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

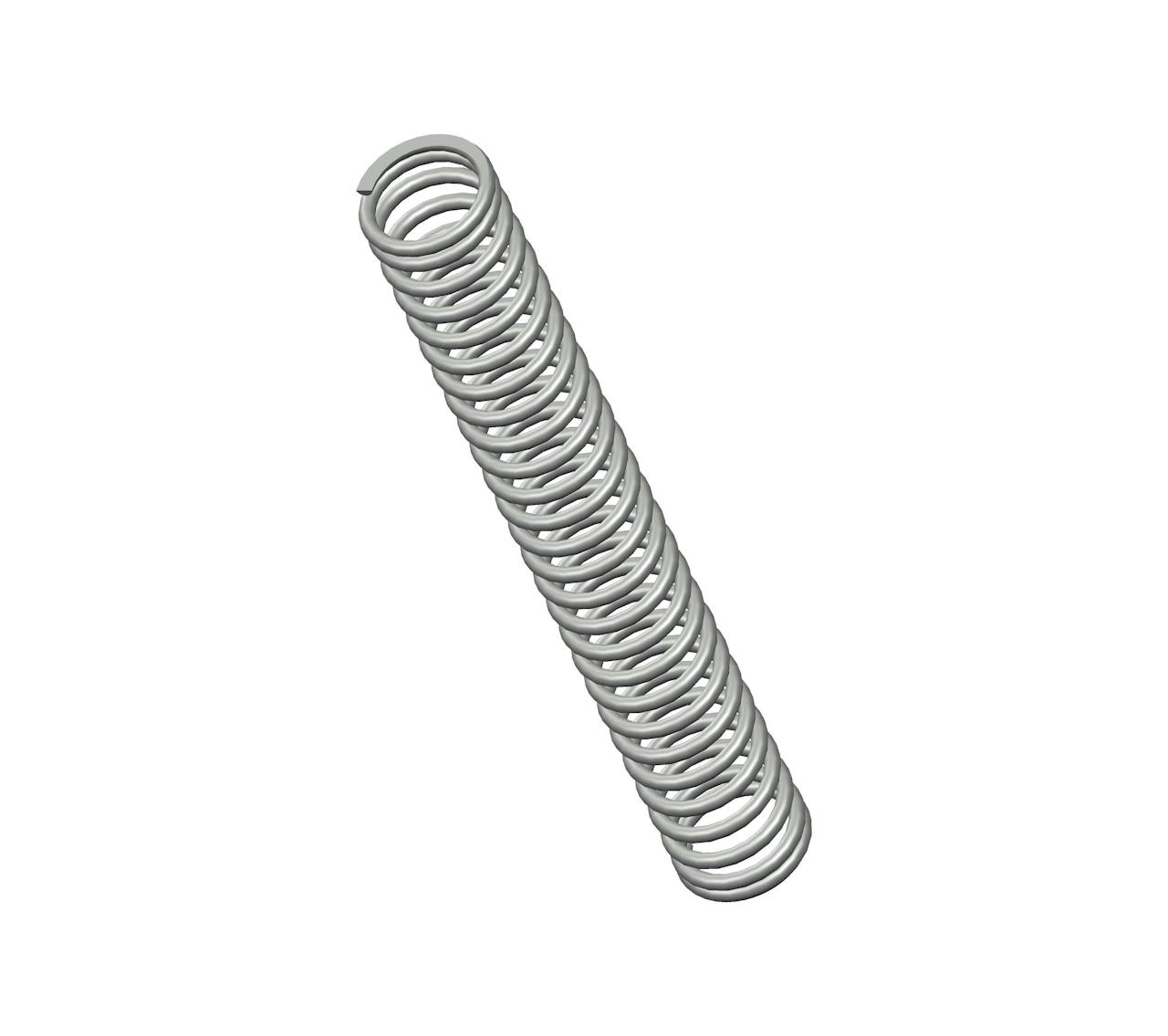

Compression spring manufactured from spring steel with 27 coils and closed ends. This spring features an O.D. of 1.39", and an I.D. of 1.066".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12444
Ends Closed
Finish None
Free Length 10 in
Inside Diameter 1.066 in
Material Spring Steel
Outside Diameter 1.39 in
Part Type Standard
Rate 21 lbs/in
SKU 12444CS
Solid Length 4.54 in
Suggested Max Deflection 4.3 in
Suggested Max Load 91 lbf
Total Coils 27
Wire Diameter 0.162 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12444
Ends Closed
Finish None
Free Length 254 mm
Inside Diameter 27.08 mm
Material Spring Steel
Outside Diameter 35.31 mm
Part Type Standard
Rate 3.68 N/mm
SKU 12444CS
Solid Length 115.32 mm
Suggested Max Deflection 109.22 mm
Suggested Max Load 404.77 N
Total Coils 27
Wire Diameter 4.11 mm
The compression spring 12444CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 12444 compression spring design exhibits exceptional tensile strength and resilience.

The 12444 design is manufactured with a free length of 10", with an outer diameter of 1.39", an inner diameter of 1.066", and a total of 27 coils, expertly designed to deliver consistent compression characteristics including a rate of 21 lbs/in.

The 12444CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 12444 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
