Century Spring

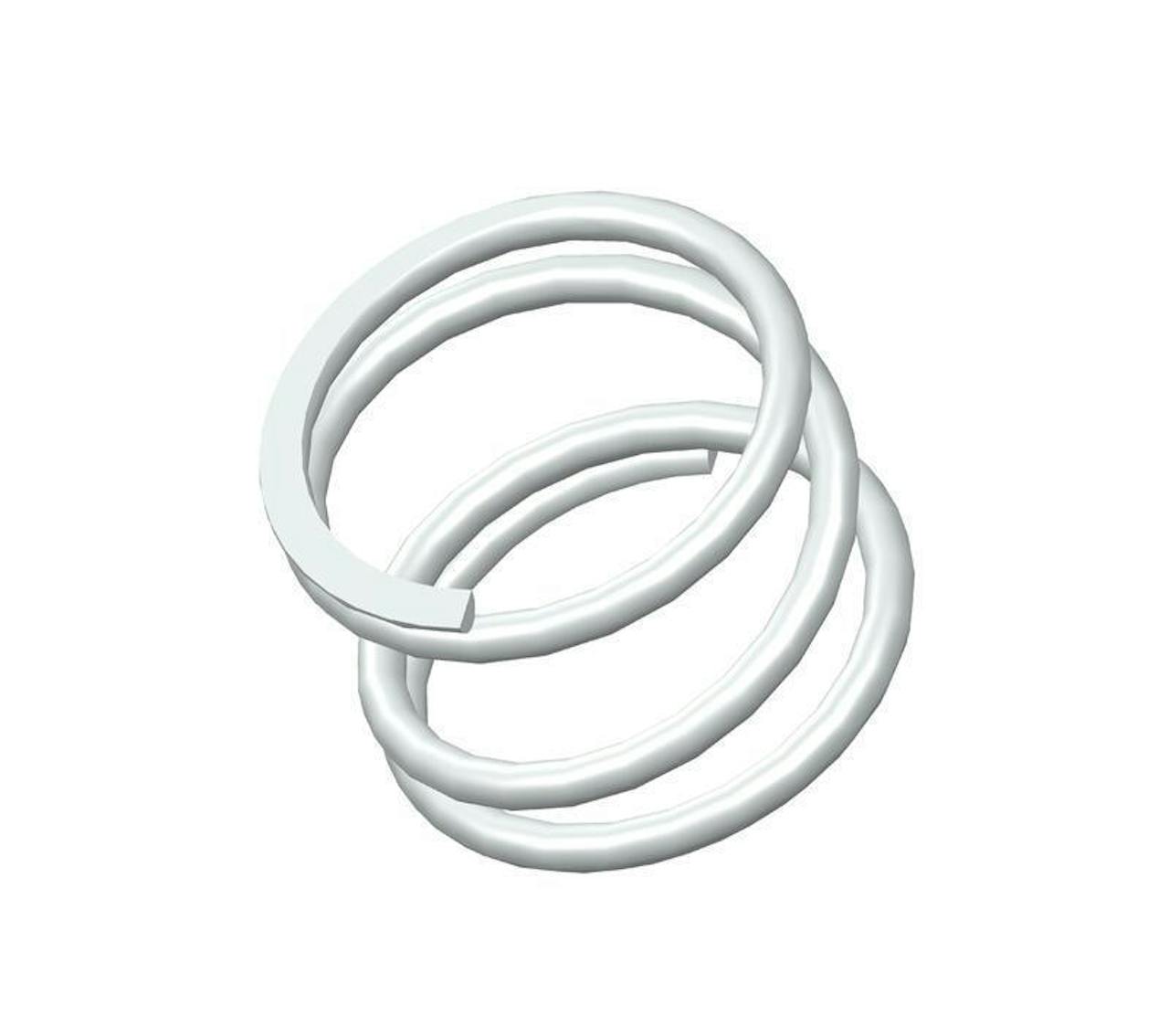

72651SCS - 0.88" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 1.015".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72651S
Ends Closed & Ground
Finish None
Free Length 0.88 in
Inside Diameter 1.015 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 70 lbs/in
SKU 72651SCS
Solid Length 0.37 in
Suggested Max Deflection 0.41 in
Suggested Max Load 29 lbf
Total Coils 3.5
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72651S
Ends Closed & Ground
Finish None
Free Length 22.35 mm
Inside Diameter 25.78 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 12.26 N/mm
SKU 72651SCS
Solid Length 9.4 mm
Suggested Max Deflection 10.41 mm
Suggested Max Load 128.99 N
Total Coils 3.5
Wire Diameter 2.67 mm
The compression spring 72651SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72651S compression spring design exhibits exceptional tensile strength and resilience.

The 72651S design is manufactured with a free length of 0.88", with an outer diameter of 1.225", an inner diameter of 1.015", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 70 lbs/in.

The 72651SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72651S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
