Century Spring

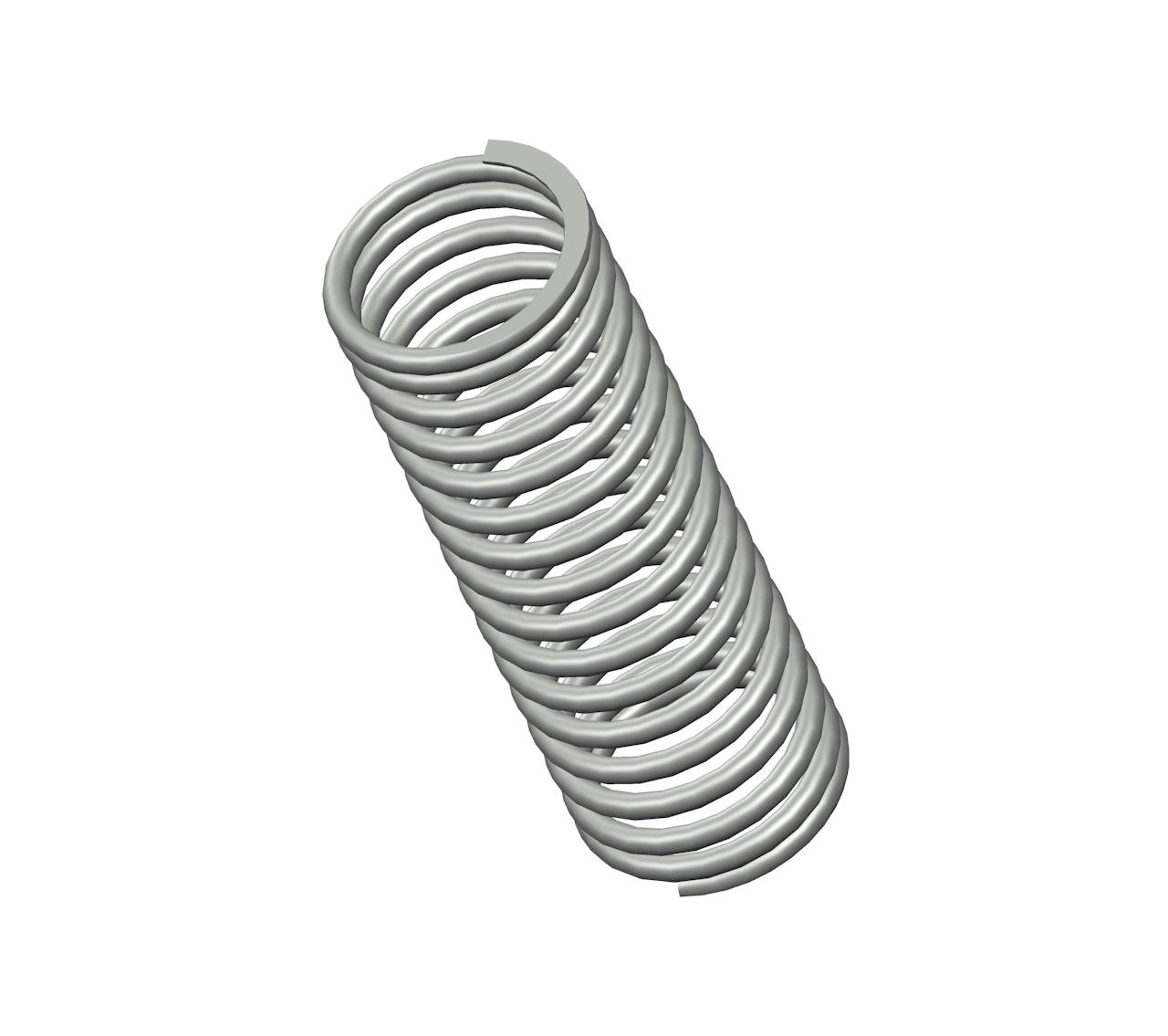

12086CS - 2" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 16.5 coils and closed & ground ends. This spring features an O.D. of 0.671", and an I.D. of 0.541".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12086
Ends Closed & Ground
Finish Zinc
Free Length 2 in
Inside Diameter 0.541 in
Material Spring Steel
Outside Diameter 0.671 in
Part Type Standard
Rate 8 lbs/in
SKU 12086CS
Solid Length 1.07 in
Suggested Max Deflection 0.93 in
Suggested Max Load 7.4 lbf
Total Coils 16.5
Wire Diameter 0.065 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12086
Ends Closed & Ground
Finish Zinc
Free Length 50.8 mm
Inside Diameter 13.74 mm
Material Spring Steel
Outside Diameter 17.04 mm
Part Type Standard
Rate 1.4 N/mm
SKU 12086CS
Solid Length 27.18 mm
Suggested Max Deflection 23.62 mm
Suggested Max Load 32.92 N
Total Coils 16.5
Wire Diameter 1.65 mm
The 12086 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 12086CS compression spring is designed with a free length of 5" total of 34 coils, and a rate of 1.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 12086 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
