Century Spring

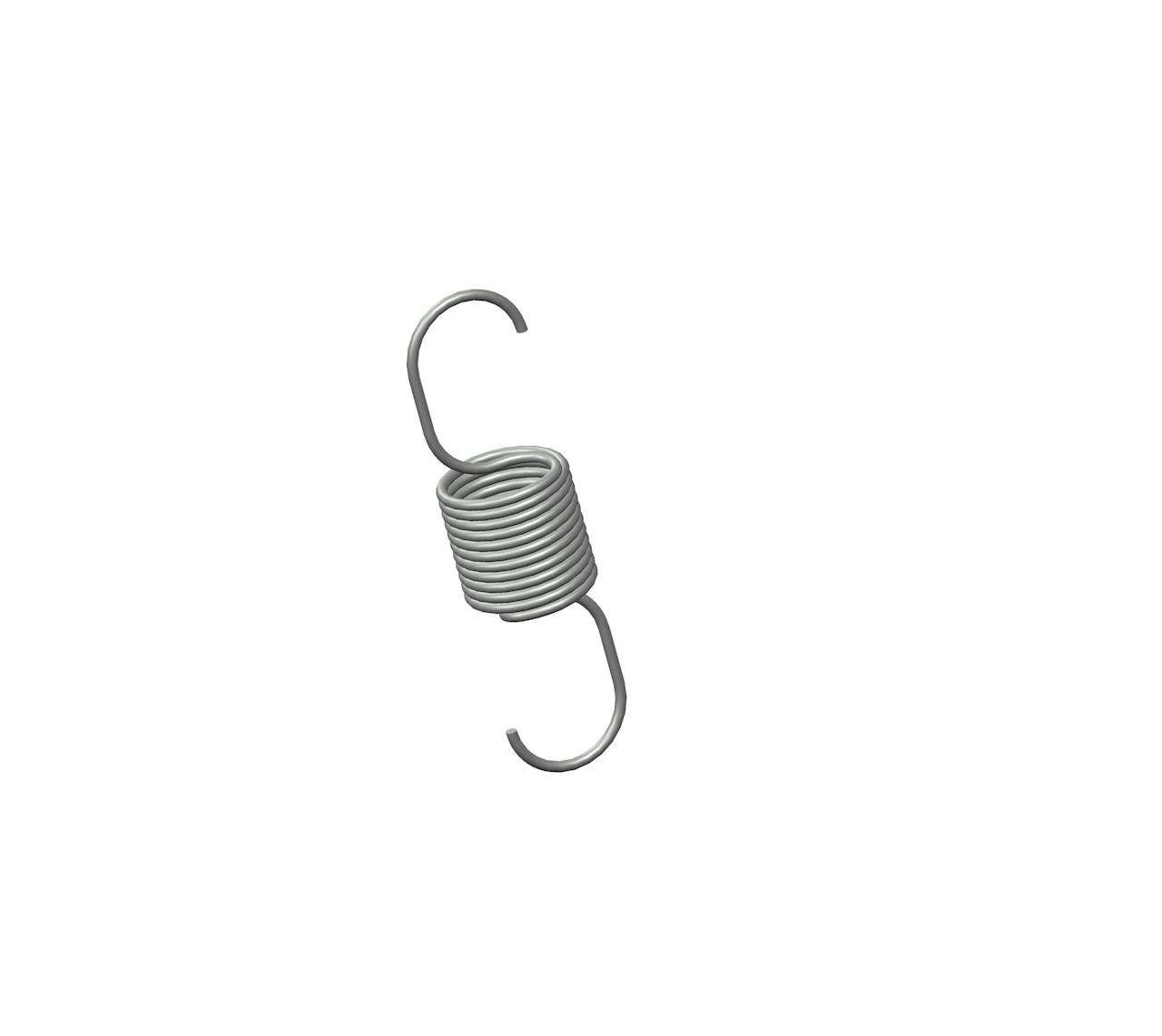

5435CS - 1.25 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.437 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5435
Ends Extended Hook
Finish None
Initial Tension 0.5 lb
Length 1.25 in
Material Spring Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 7 lbs/in
SKU 5435CS
Sugg Max Deflection 0.51 in
Sugg Max Load 4.1 lbf
Wind Direction Left
Wire Diameter 0.037 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5435
Ends Extended Hook
Finish None
Initial Tension 0.23 kg
Length 31.75 mm
Material Spring Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 1.23 N/mm
SKU 5435CS
Sugg Max Deflection 12.95 mm
Sugg Max Load 18.24 N
Wind Direction Left
Wire Diameter 0.94 mm
