Century Spring

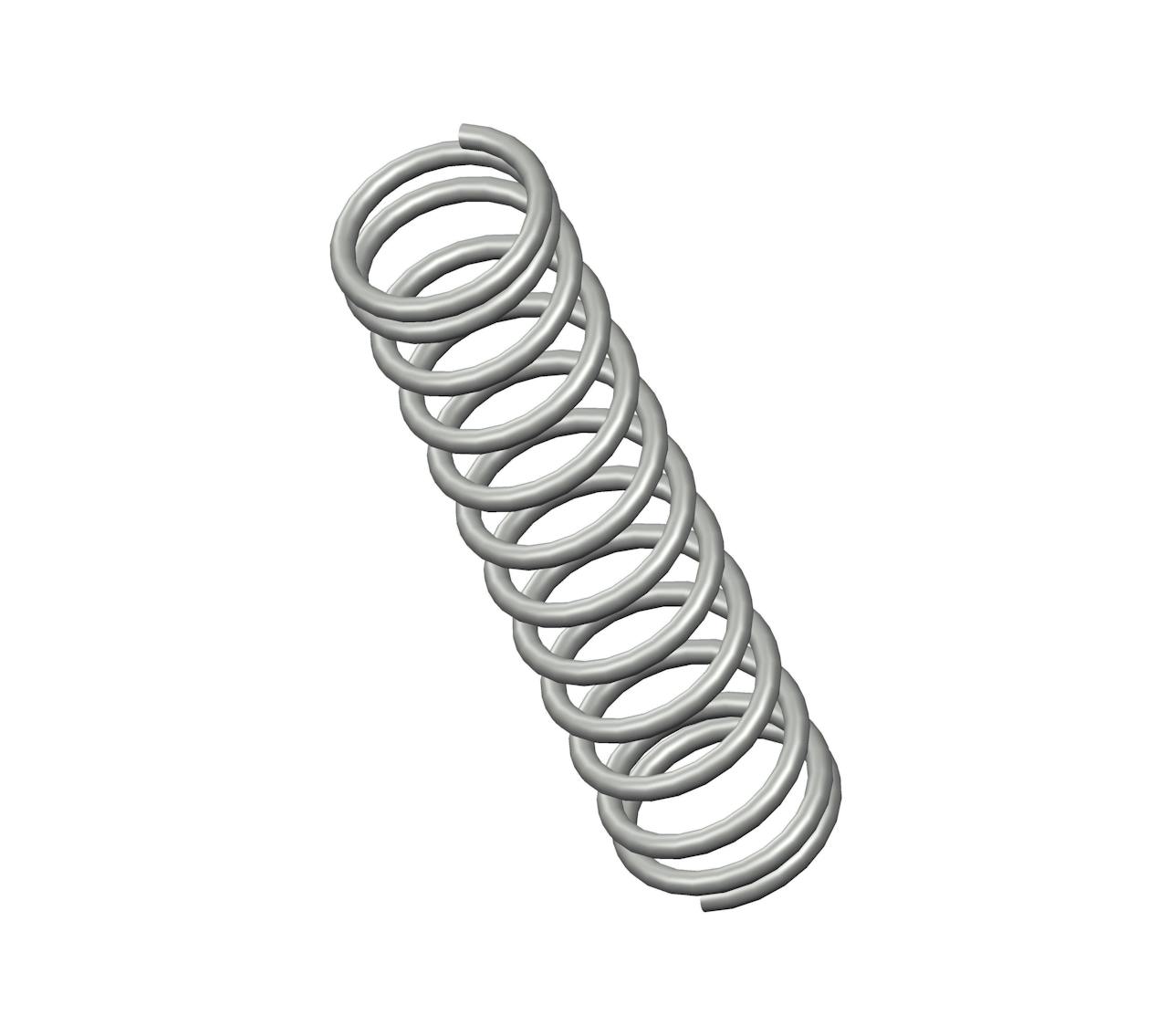

11887CS - 1.88" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 12.5 coils and closed ends. This spring features an O.D. of 0.453", and an I.D. of 0.355".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11887
Ends Closed
Finish None
Free Length 1.88 in
Inside Diameter 0.355 in
Material Spring Steel
Outside Diameter 0.453 in
Part Type Standard
Rate 12 lbs/in
SKU 11887CS
Solid Length 0.66 in
Suggested Max Deflection 0.83 in
Suggested Max Load 9.9 lbf
Total Coils 12.5
Wire Diameter 0.049 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11887
Ends Closed
Finish None
Free Length 47.75 mm
Inside Diameter 9.02 mm
Material Spring Steel
Outside Diameter 11.51 mm
Part Type Standard
Rate 2.1 N/mm
SKU 11887CS
Solid Length 16.76 mm
Suggested Max Deflection 21.08 mm
Suggested Max Load 44.04 N
Total Coils 12.5
Wire Diameter 1.24 mm
The 11887CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.049" diameter spring steel, the 11887 spring design exhibits reliable strength across its 12.5 active coils, withstanding repeated compression cycles with a maximum load of 9.9 lbf without succumbing to fatigue.

We manufacture the 11887 design to provide a compression spring that is 1.88" long at rest and provides a consistent rate of 12 lbs/in along its recommended maximum of 0.83" deflection. For best results, your application should fully accommodate the inner (0.355") and outer (0.453") diameters of this spring and be designed for its closed end configuration.
