Century Spring

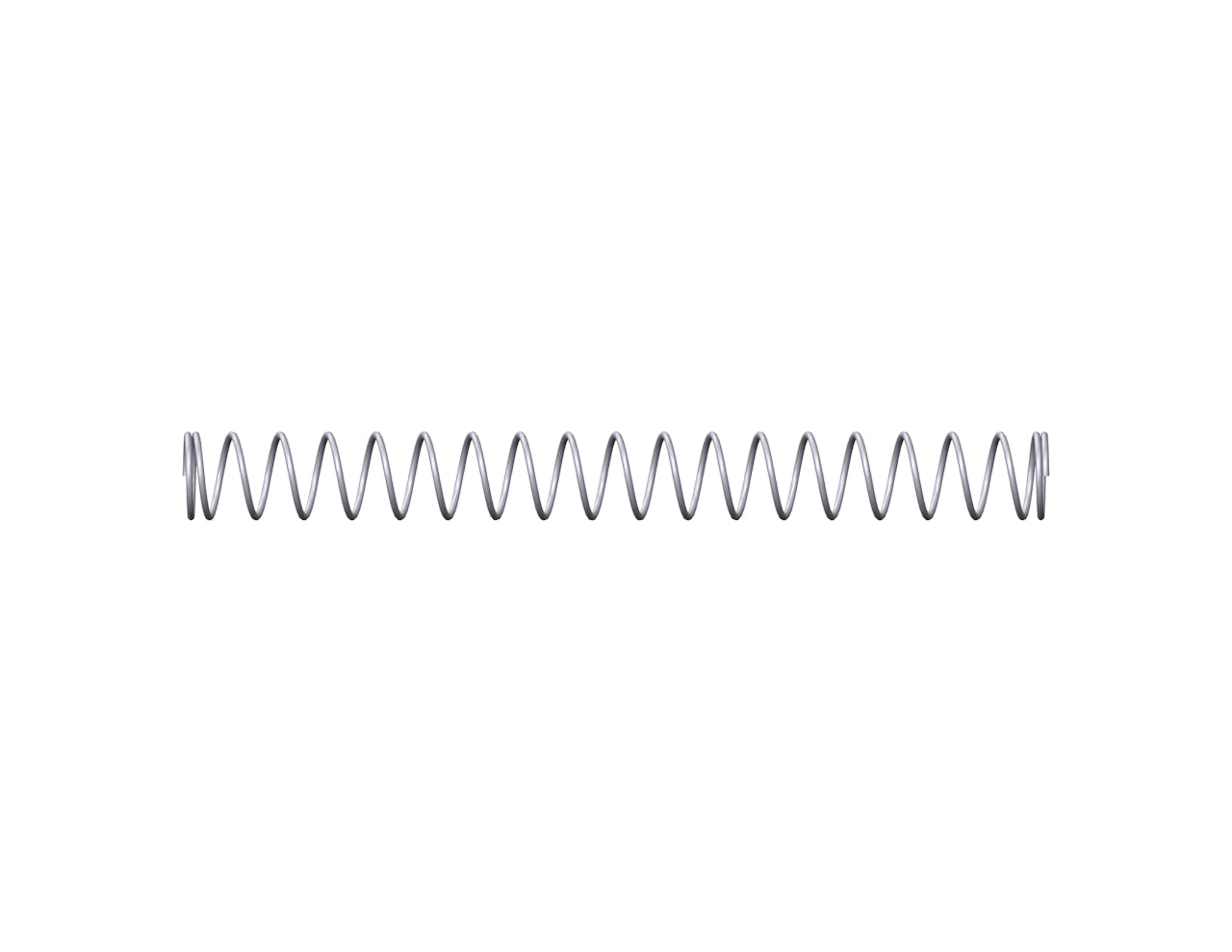

75023SCS - 1.031" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 20.5 coils and closed ends. This spring features an O.D. of 0.106", and an I.D. of 0.09".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75023S
Ends Closed
Finish None
Free Length 1.031 in
Inside Diameter 0.09 in
Material 302/304 Stainless Steel
Outside Diameter 0.106 in
Part Type Metric
Rate 0.272 lbs/in
SKU 75023SCS
Solid Length 0.169 in
Suggested Max Deflection 0.732 in
Suggested Max Load 0.199 lbf
Total Coils 20.5
Wire Diameter 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75023S
Ends Closed
Finish None
Free Length 26.19 mm
Inside Diameter 2.29 mm
Material 302/304 Stainless Steel
Outside Diameter 2.69 mm
Part Type Metric
Rate 0.05 N/mm
SKU 75023SCS
Solid Length 4.29 mm
Suggested Max Deflection 18.59 mm
Suggested Max Load 0.89 N
Total Coils 20.5
Wire Diameter 0.2 mm
The 75023S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75023SCS compression spring is designed with a free length of 1.031" total of 20.5 coils, and a rate of 0.338 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75023S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
