Century Spring

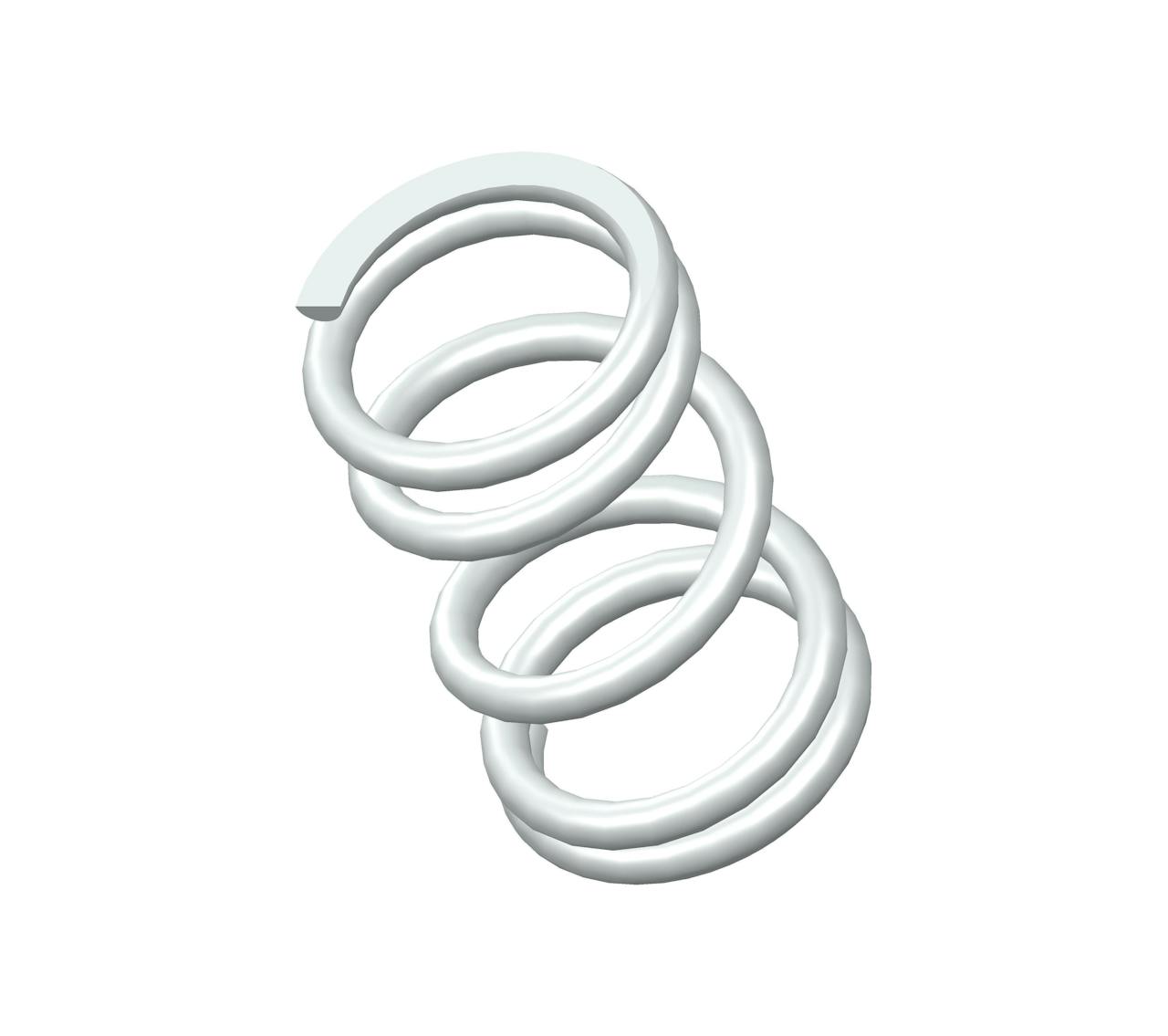

11846CS - 1.72" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.9 coils and closed ends. This spring features an O.D. of 1.015", and an I.D. of 0.767".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11846
Ends Closed
Finish None
Free Length 1.72 in
Inside Diameter 0.767 in
Material 302/304 Stainless Steel
Outside Diameter 1.015 in
Part Type Standard
Rate 142 lbs/in
SKU 11846CS
Solid Length 0.743 in
Suggested Max Deflection 0.382 in
Suggested Max Load 54 lbf
Total Coils 4.9
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11846
Ends Closed
Finish None
Free Length 43.69 mm
Inside Diameter 19.48 mm
Material 302/304 Stainless Steel
Outside Diameter 25.78 mm
Part Type Standard
Rate 24.86 N/mm
SKU 11846CS
Solid Length 18.87 mm
Suggested Max Deflection 9.7 mm
Suggested Max Load 240.19 N
Total Coils 4.9
Wire Diameter 3.18 mm
The 11846CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter 302/304 stainless steel, the 11846 spring design exhibits reliable strength across its 4.9 active coils, withstanding repeated compression cycles with a maximum load of 54 lbf without succumbing to fatigue.

We manufacture the 11846 design to provide a compression spring that is 1.72" long at rest and provides a consistent rate of 142 lbs/in along its recommended maximum of 0.382" deflection. For best results, your application should fully accommodate the inner (0.767") and outer (1.015") diameters of this spring and be designed for its closed end configuration.
