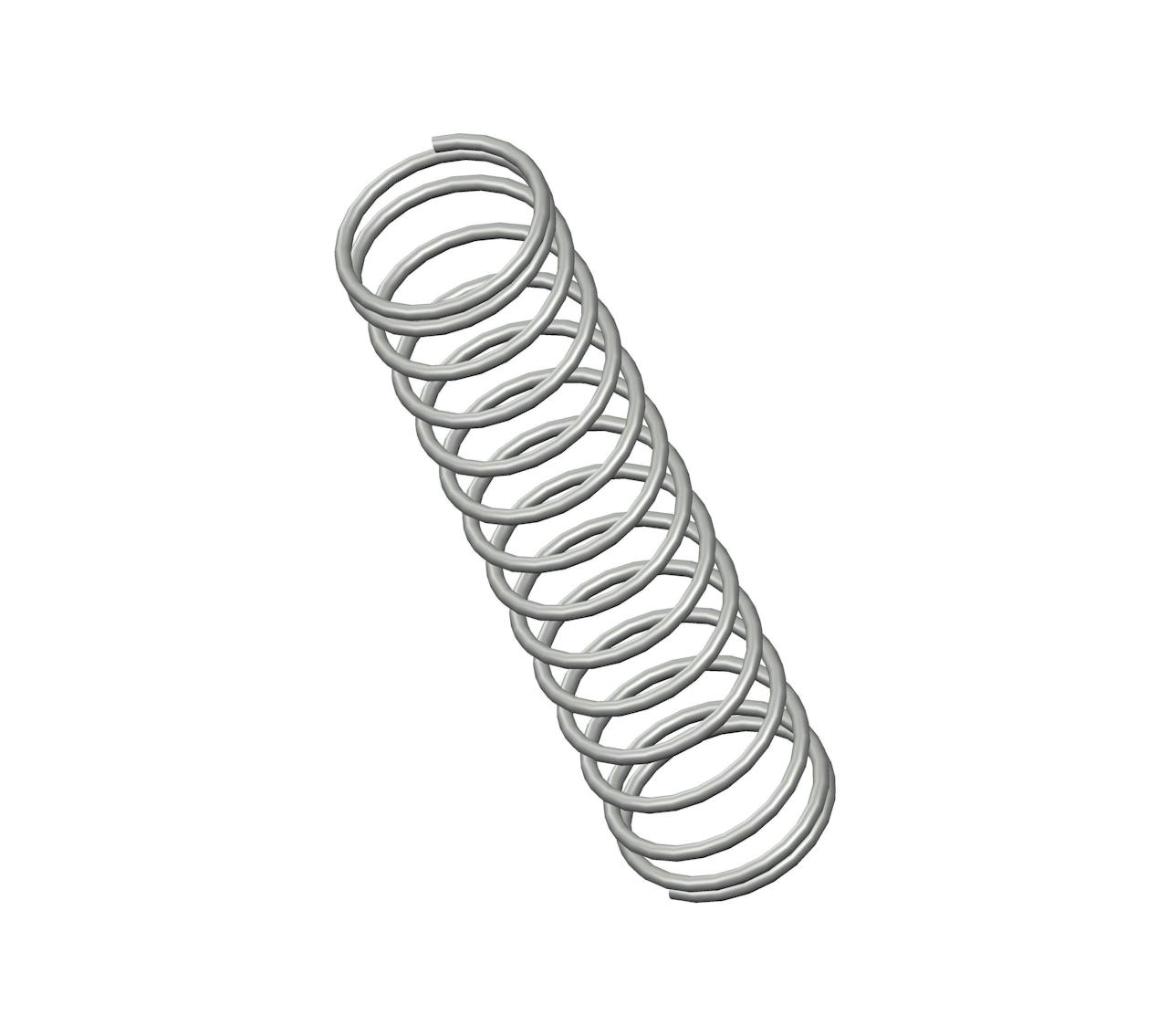

L-32CS - 1.44" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 14.6 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.293".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name L-32
Ends Closed
Finish Zinc
Free Length 1.44 in
Inside Diameter 0.293 in
Material Music Wire
Outside Diameter 0.343 in
Part Type Standard
Rate 1.4 lbs/in
SKU L-32CS
Solid Length 0.39 in
Suggested Max Deflection 1 in
Suggested Max Load 1.4 lbf
Total Coils 14.6
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name L-32
Ends Closed
Finish Zinc
Free Length 36.58 mm
Inside Diameter 7.44 mm
Material Music Wire
Outside Diameter 8.71 mm
Part Type Standard
Rate 0.25 N/mm
SKU L-32CS
Solid Length 9.91 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 6.23 N
Total Coils 14.6
Wire Diameter 0.64 mm
The compression spring L-32CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the L-32 compression spring design exhibits exceptional tensile strength and resilience.

The L-32 design is manufactured with a free length of 1.44", with an outer diameter of 0.343", an inner diameter of 0.293", and a total of 14.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.4 lbs/in.

The L-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring L-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
