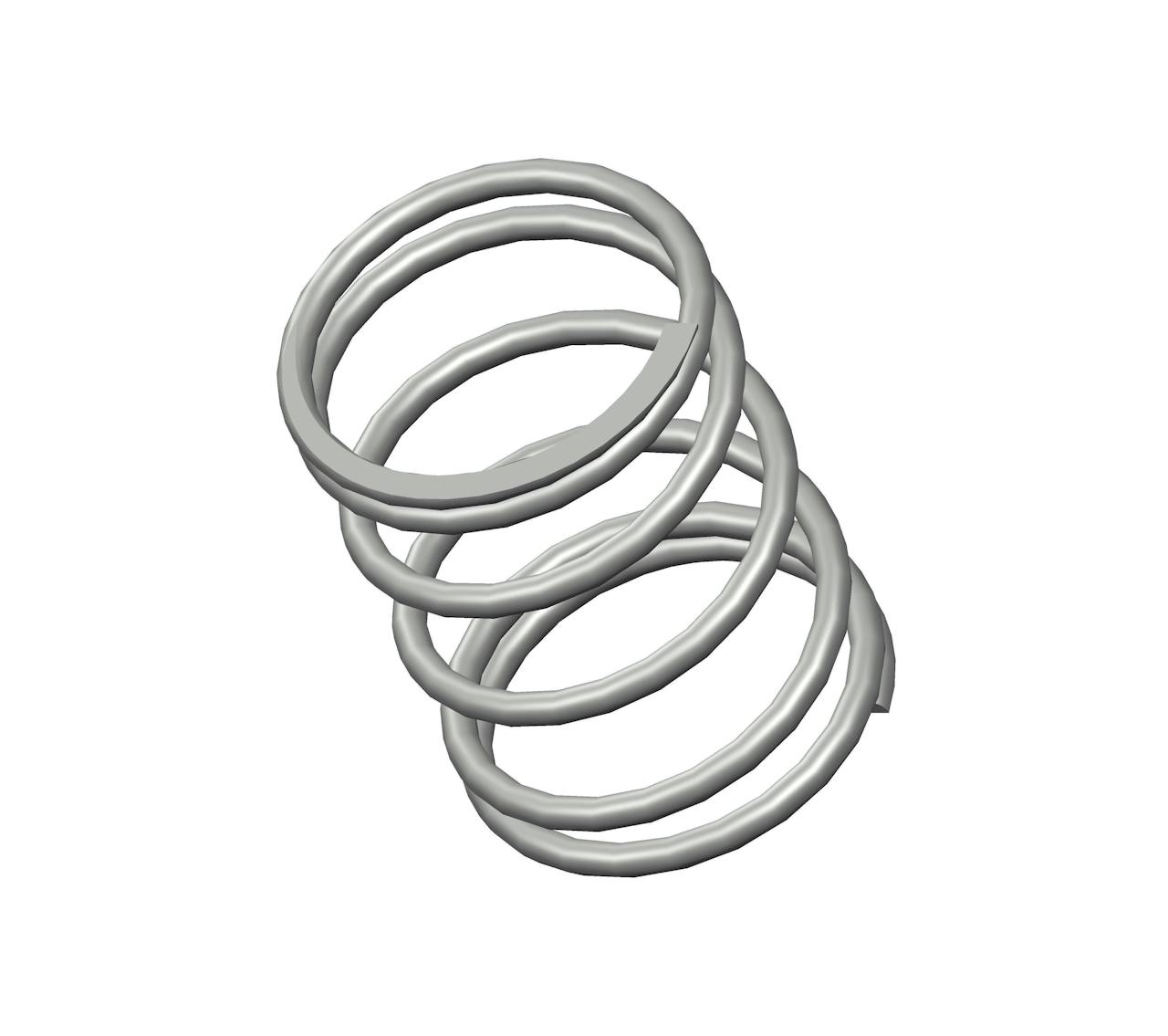

11574CS - 2.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 1.906", and an I.D. of 1.61".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11574
Ends Closed & Ground
Finish None
Free Length 2.63 in
Inside Diameter 1.61 in
Material Spring Steel
Outside Diameter 1.906 in
Part Type Standard
Rate 32 lbs/in
SKU 11574CS
Solid Length 1.04 in
Suggested Max Deflection 1.6 in
Suggested Max Load 50 lbf
Total Coils 6
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11574
Ends Closed & Ground
Finish None
Free Length 66.8 mm
Inside Diameter 40.89 mm
Material Spring Steel
Outside Diameter 48.41 mm
Part Type Standard
Rate 5.6 N/mm
SKU 11574CS
Solid Length 26.42 mm
Suggested Max Deflection 40.64 mm
Suggested Max Load 222.4 N
Total Coils 6
Wire Diameter 3.76 mm
The 11574CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter spring steel, the 11574 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 50 lbf without succumbing to fatigue.

We manufacture the 11574 design to provide a compression spring that is 2.63" long at rest and provides a consistent rate of 32 lbs/in along its recommended maximum of 1.6" deflection. For best results, your application should fully accommodate the inner (1.61") and outer (1.906") diameters of this spring and be designed for its closed & ground end configuration.
