Century Spring

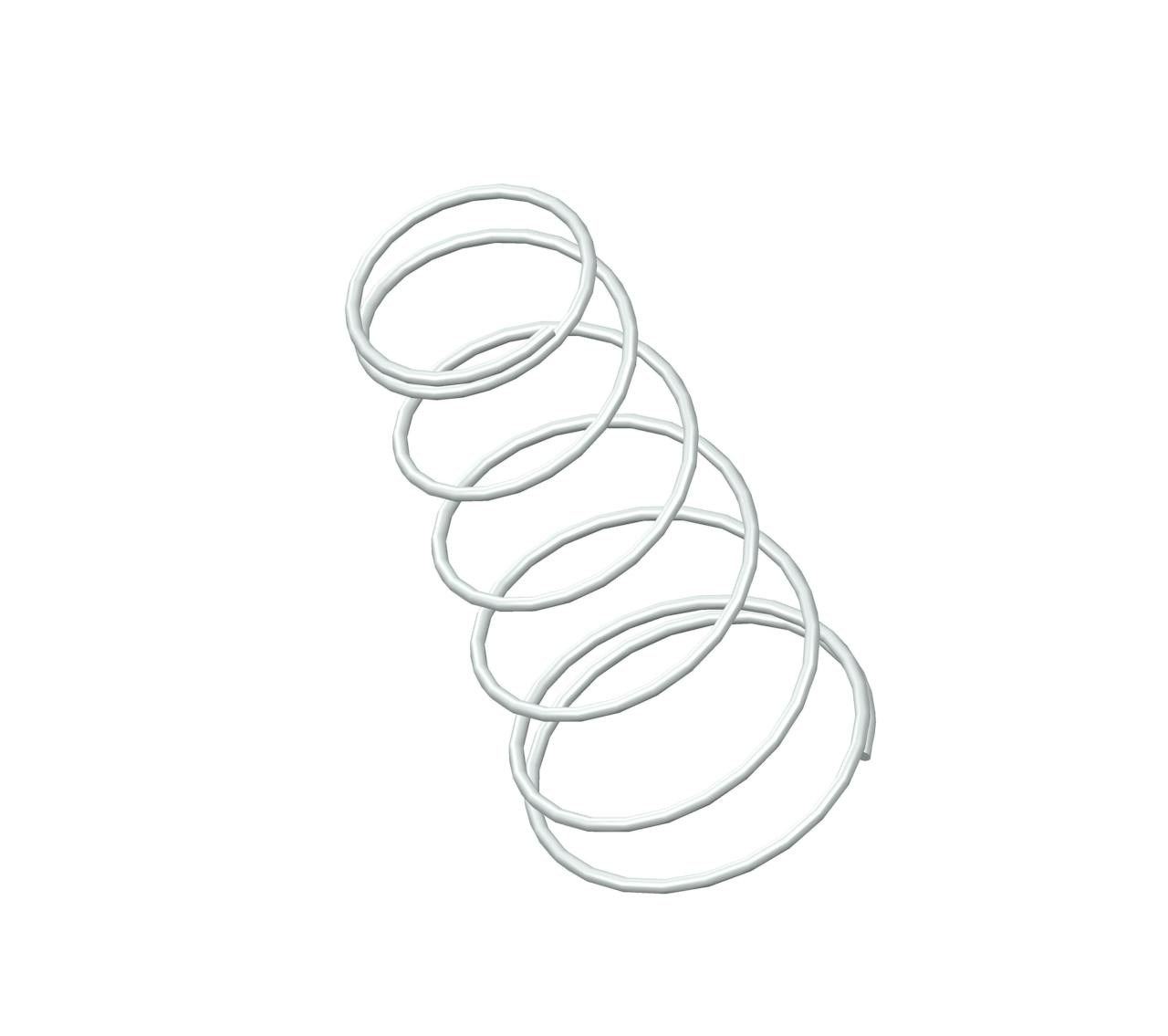

TA-2156CS - 2.38 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 6.5 total coils and Closed ends. The OD of this spring tapers from 0.796 Inch to 1.125 Inch. The spring has an I.D. of 0.704 Inch, and an average spring rate of 1.6 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 1.6 lbs/in
Brand Century Spring
Display Name TA-2156
Ends Closed
Finish None
Free Length 2.38 in
Inside Diameter 0.704 in
Large Outside Diameter 1.125 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.796 in
SKU TA-2156CS
Small Outside Diameter 0.796 in
Solid Height 0.13 in
Total Coils 6.5
Wind Direction Left
Wire Diameter 0.046 in
Specs (in metric)
Label Value
Average Rate 0.28 N/mm
Brand Century Spring
Display Name TA-2156
Ends Closed
Finish None
Free Length 60.45 mm
Inside Diameter 17.88 mm
Large Outside Diameter 28.58 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 20.22 mm
SKU TA-2156CS
Small Outside Diameter 20.22 mm
Solid Height 3.3 mm
Total Coils 6.5
Wind Direction Left
Wire Diameter 1.17 mm
