11216CS - 0.53" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

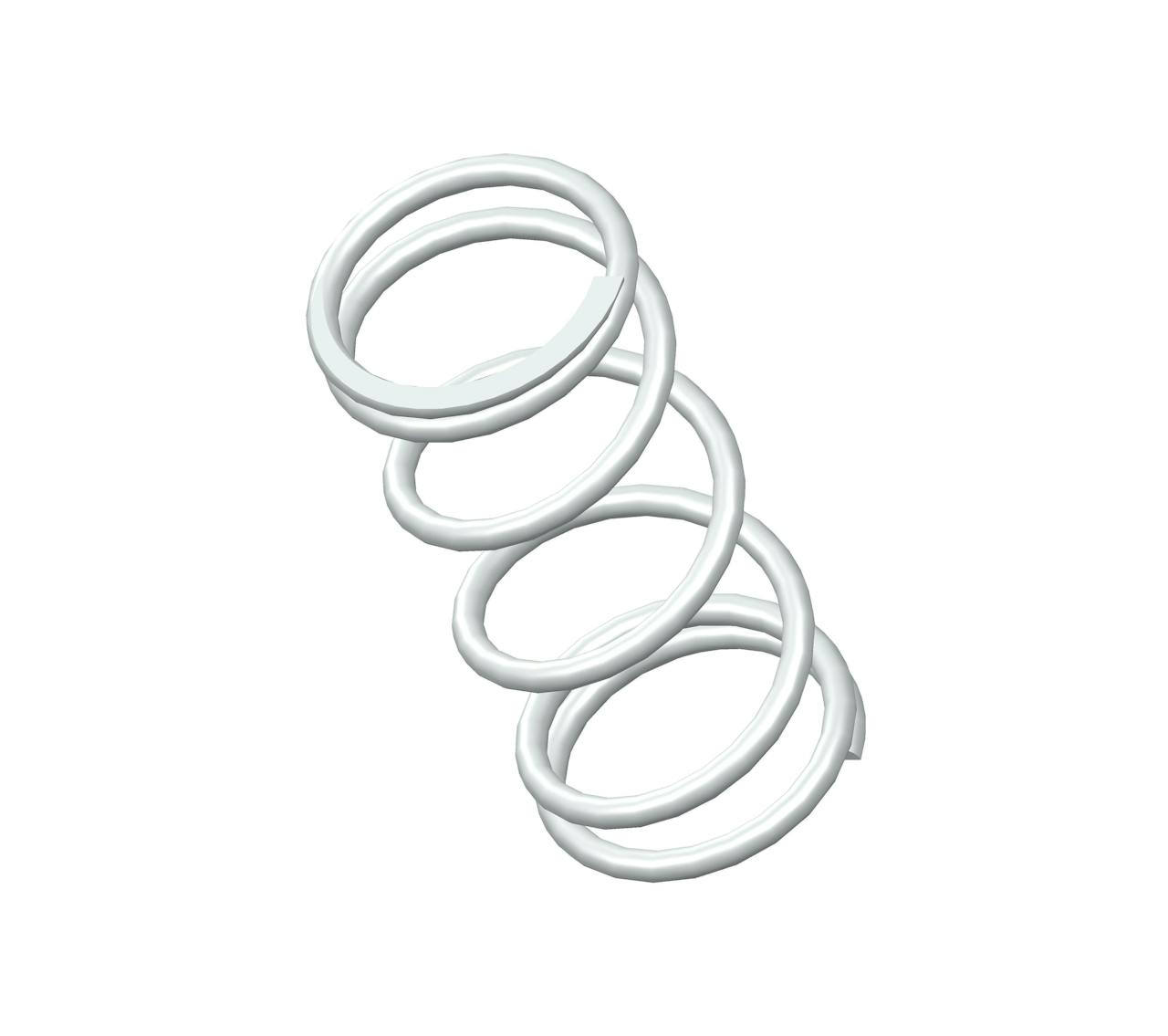

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.19".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11216
Ends Closed & Ground
Finish None
Free Length 0.53 in
Inside Diameter 0.19 in
Material 302/304 Stainless Steel
Outside Diameter 0.234 in
Part Type Standard
Rate 7.8 lbs/in
SKU 11216CS
Solid Length 0.13 in
Suggested Max Deflection 0.23 in
Suggested Max Load 1.8 lbf
Total Coils 6
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11216
Ends Closed & Ground
Finish None
Free Length 13.46 mm
Inside Diameter 4.83 mm
Material 302/304 Stainless Steel
Outside Diameter 5.94 mm
Part Type Standard
Rate 1.37 N/mm
SKU 11216CS
Solid Length 3.3 mm
Suggested Max Deflection 5.84 mm
Suggested Max Load 8.01 N
Total Coils 6
Wire Diameter 0.56 mm
The compression spring 11216CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 11216 compression spring design exhibits exceptional tensile strength and resilience.

The 11216 design is manufactured with a free length of 0.53", with an outer diameter of 0.234", an inner diameter of 0.19", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.8 lbs/in.

The 11216CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11216 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
