Maryland Precision Spring

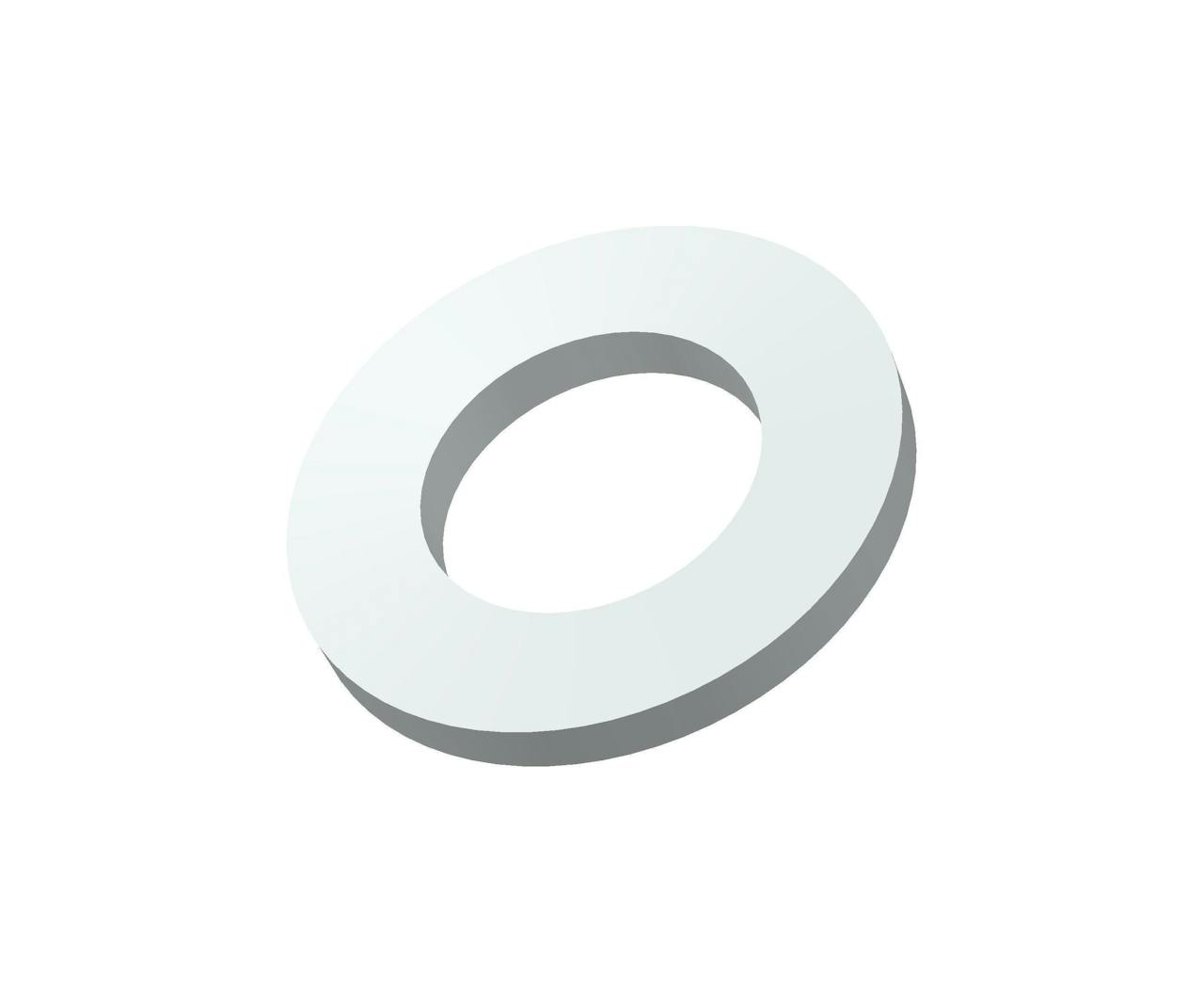

MFL-36250 - 36.8 Millimeter ID 68 Millimeter OD Stainless Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from Stainless Steel with an inside diameter of 36.8 Millimeter and an outside diameter of 68 Millimeter.

Unit System
Specs (in standard)
Label Value
Bolt Size 36
Brand Maryland Precision Spring
Display Name MFL-36250
Finish Plain
Inside Diameter 1.4488 in
Load at Flat 20669.3333 lb
Material Stainless Steel
Measurement Units Standard
Outside Diameter 2.6772 in
Outside Height 0.2953 in
SKU MFL-36250
Screw Size M36
T 0.252 in
Torque to Flat 4140.4911 lbs/in
Specs (in metric)
Label Value
Bolt Size 36
Brand Maryland Precision Spring
Display Name MFL-36250
Finish Plain
Inside Diameter 36.8 mm
Load at Flat 9373.85 kg
Material Stainless Steel
Measurement Units Standard
Outside Diameter 68 mm
Outside Height 7.5 mm
SKU MFL-36250
Screw Size M36
T 6.4 mm
Torque to Flat 725 ft-lb
