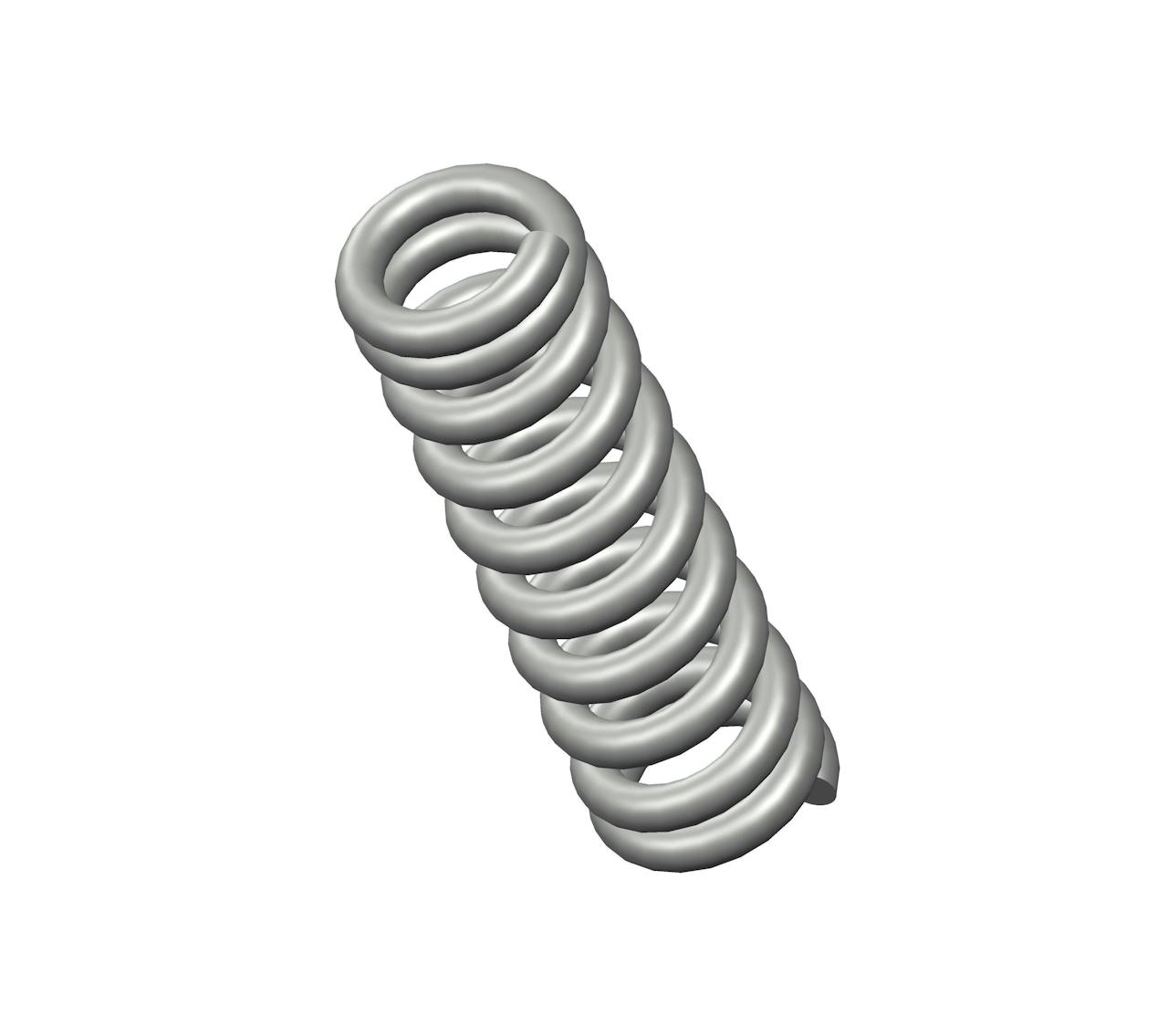

11113CS - 0.34" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 10 coils and closed ends. This spring features an O.D. of 0.094", and an I.D. of 0.058".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 11113 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.34 in |
| Inside Diameter | 0.058 in |
| Material | Music Wire |
| Outside Diameter | 0.094 in |
| Part Type | Standard |
| Rate | 43 lbs/in |
| SKU | 11113CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.08 in |
| Suggested Max Load | 3.5 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 11113 |
| Ends | Closed |
| Finish | None |
| Free Length | 8.64 mm |
| Inside Diameter | 1.47 mm |
| Material | Music Wire |
| Outside Diameter | 2.39 mm |
| Part Type | Standard |
| Rate | 7.53 N/mm |
| SKU | 11113CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 2.03 mm |
| Suggested Max Load | 15.57 N |
| Total Coils | 10 |
| Wire Diameter | 0.46 mm |
The 11113 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 11113CS compression spring is designed with a free length of 0.59" total of 8.75 coils, and a rate of 2.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 11113 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 11113CS compression spring is designed with a free length of 0.59" total of 8.75 coils, and a rate of 2.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 11113 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
