10863CS - 3.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

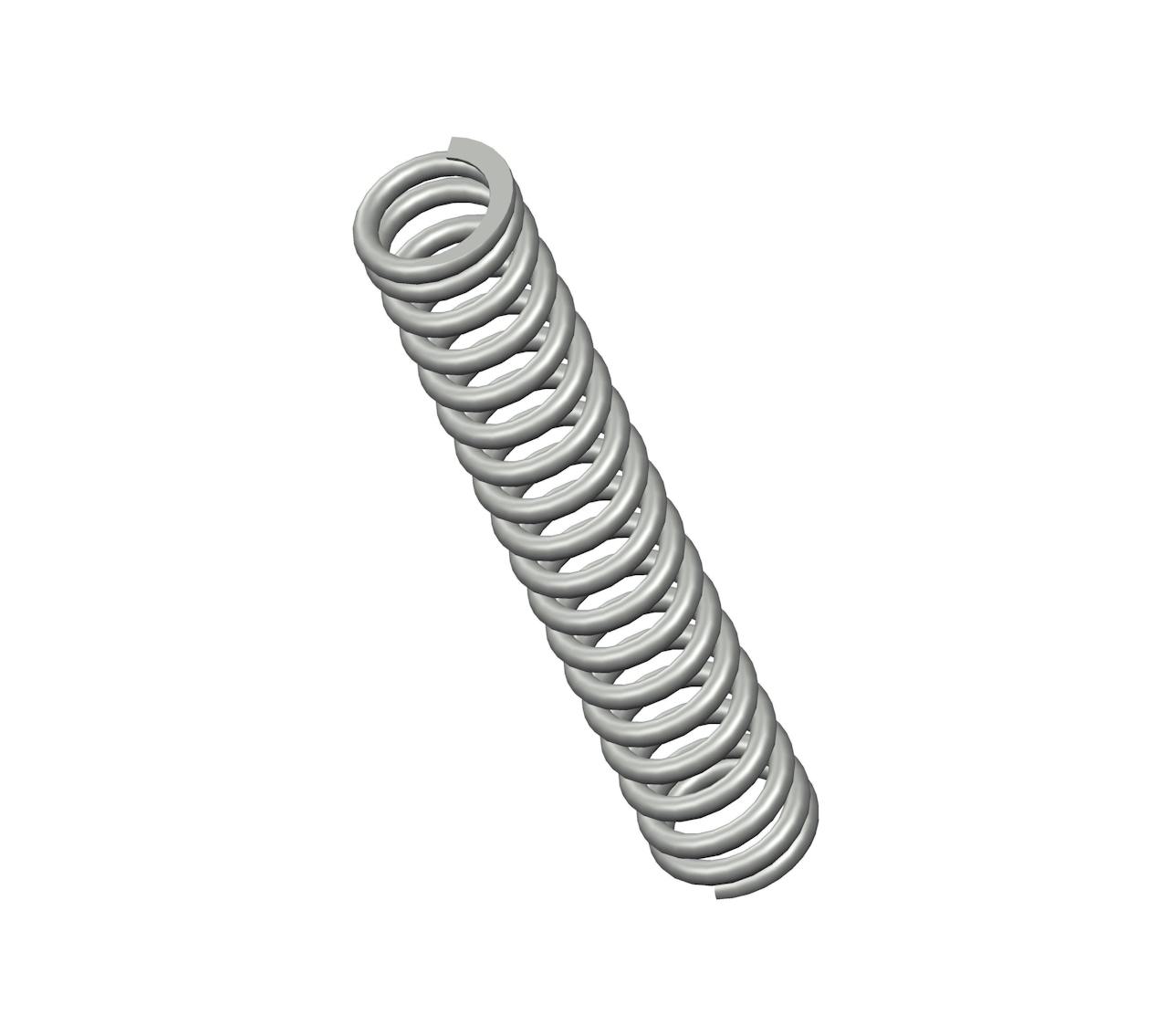

Compression spring manufactured from spring steel with 18.5 coils and closed & ground ends. This spring features an O.D. of 0.609", and an I.D. of 0.427".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10863
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 0.427 in
Material Spring Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 43 lbs/in
SKU 10863CS
Solid Length 1.68 in
Suggested Max Deflection 0.91 in
Suggested Max Load 39 lbf
Total Coils 18.5
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10863
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 10.85 mm
Material Spring Steel
Outside Diameter 15.47 mm
Part Type Standard
Rate 7.53 N/mm
SKU 10863CS
Solid Length 42.67 mm
Suggested Max Deflection 23.11 mm
Suggested Max Load 173.47 N
Total Coils 18.5
Wire Diameter 2.31 mm
The 10863CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.091" diameter spring steel, the 10863 spring design exhibits reliable strength across its 18.5 active coils, withstanding repeated compression cycles with a maximum load of 39 lbf without succumbing to fatigue.

We manufacture the 10863 design to provide a compression spring that is 3.5" long at rest and provides a consistent rate of 43 lbs/in along its recommended maximum of 0.91" deflection. For best results, your application should fully accommodate the inner (0.427") and outer (0.609") diameters of this spring and be designed for its closed & ground end configuration.
