Century Spring

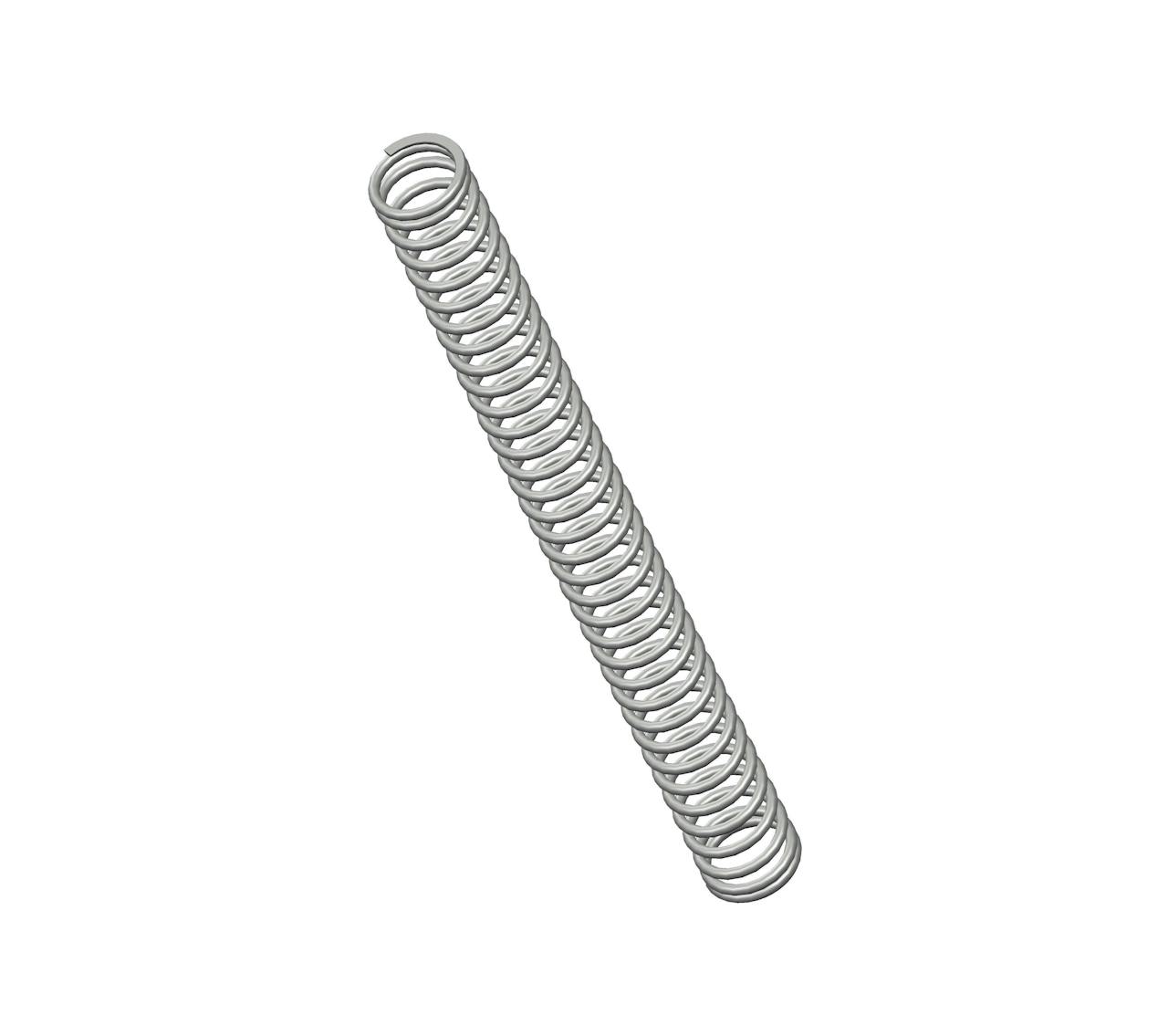

3075CS - 9" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 34.8 coils and closed & ground ends. This spring features an O.D. of 0.859", and an I.D. of 0.667".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3075
Ends Closed & Ground
Finish Zinc
Free Length 9 in
Inside Diameter 0.667 in
Material Spring Steel
Outside Diameter 0.859 in
Part Type Standard
Rate 8.4 lbs/in
SKU 3075CS
Solid Length 3.32 in
Suggested Max Deflection 4 in
Suggested Max Load 33 lbf
Total Coils 34.8
Wire Diameter 0.096 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3075
Ends Closed & Ground
Finish Zinc
Free Length 228.6 mm
Inside Diameter 16.94 mm
Material Spring Steel
Outside Diameter 21.82 mm
Part Type Standard
Rate 1.47 N/mm
SKU 3075CS
Solid Length 84.33 mm
Suggested Max Deflection 101.6 mm
Suggested Max Load 146.78 N
Total Coils 34.8
Wire Diameter 2.44 mm
The 3075 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 3075CS compression spring is designed with a free length of 6.38" total of 8 coils, and a rate of 0.68 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 3075 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
