Century Spring

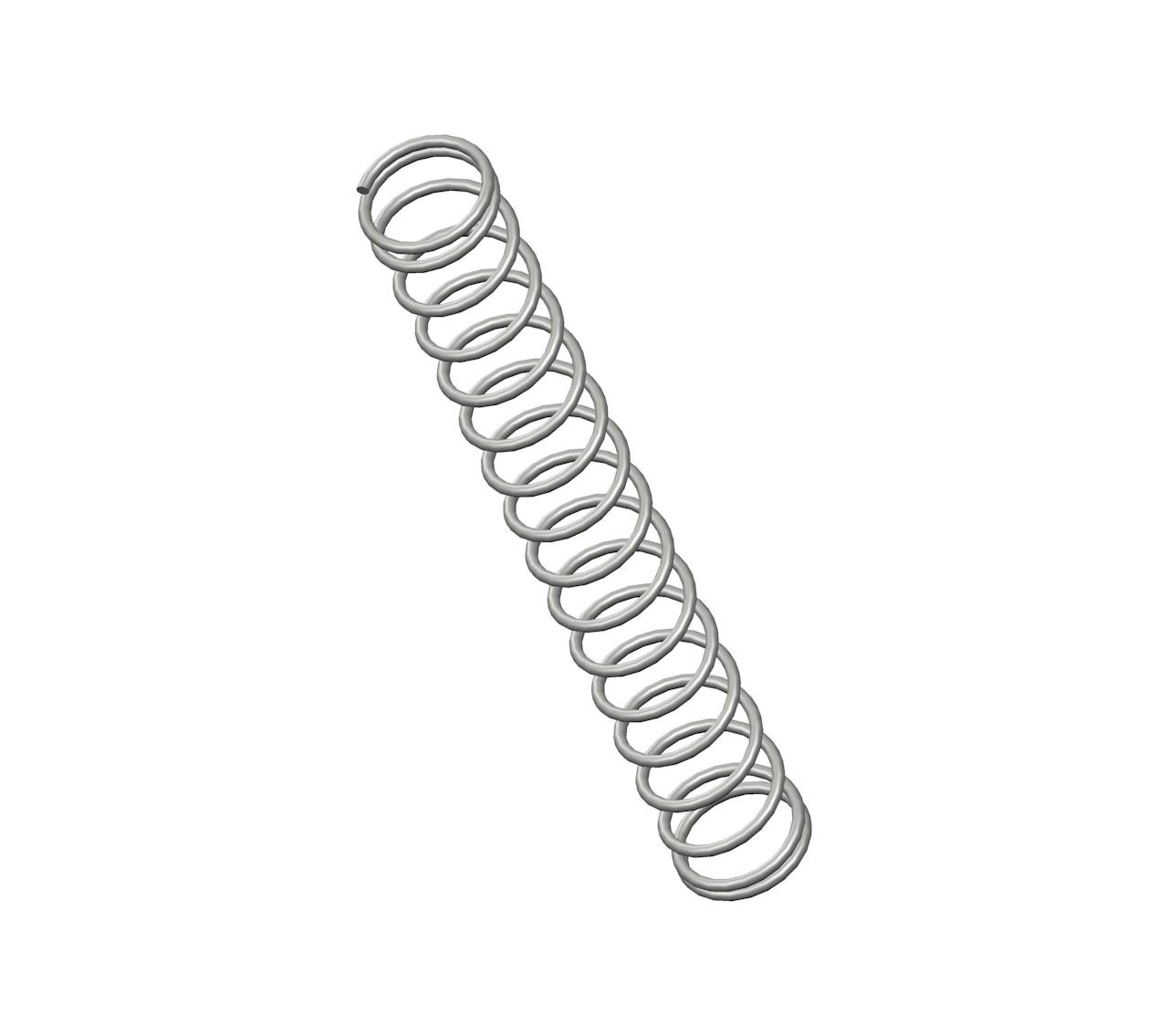

10678CS - 1.38" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 17 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.154".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10678
Ends Closed
Finish Zinc
Free Length 1.38 in
Inside Diameter 0.154 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 1.6 lbs/in
SKU 10678CS
Solid Length 0.31 in
Suggested Max Deflection 0.97 in
Suggested Max Load 1.6 lbf
Total Coils 17
Wire Diameter 0.017 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10678
Ends Closed
Finish Zinc
Free Length 35.05 mm
Inside Diameter 3.91 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.28 N/mm
SKU 10678CS
Solid Length 7.87 mm
Suggested Max Deflection 24.64 mm
Suggested Max Load 7.12 N
Total Coils 17
Wire Diameter 0.43 mm
The 10678CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.017" diameter music wire, the 10678 spring design exhibits reliable strength across its 17 active coils, withstanding repeated compression cycles with a maximum load of 1.6 lbf without succumbing to fatigue.

We manufacture the 10678 design to provide a compression spring that is 1.38" long at rest and provides a consistent rate of 1.6 lbs/in along its recommended maximum of 0.97" deflection. For best results, your application should fully accommodate the inner (0.154") and outer (0.188") diameters of this spring and be designed for its closed end configuration.
