Century Spring

10656CS - 1.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

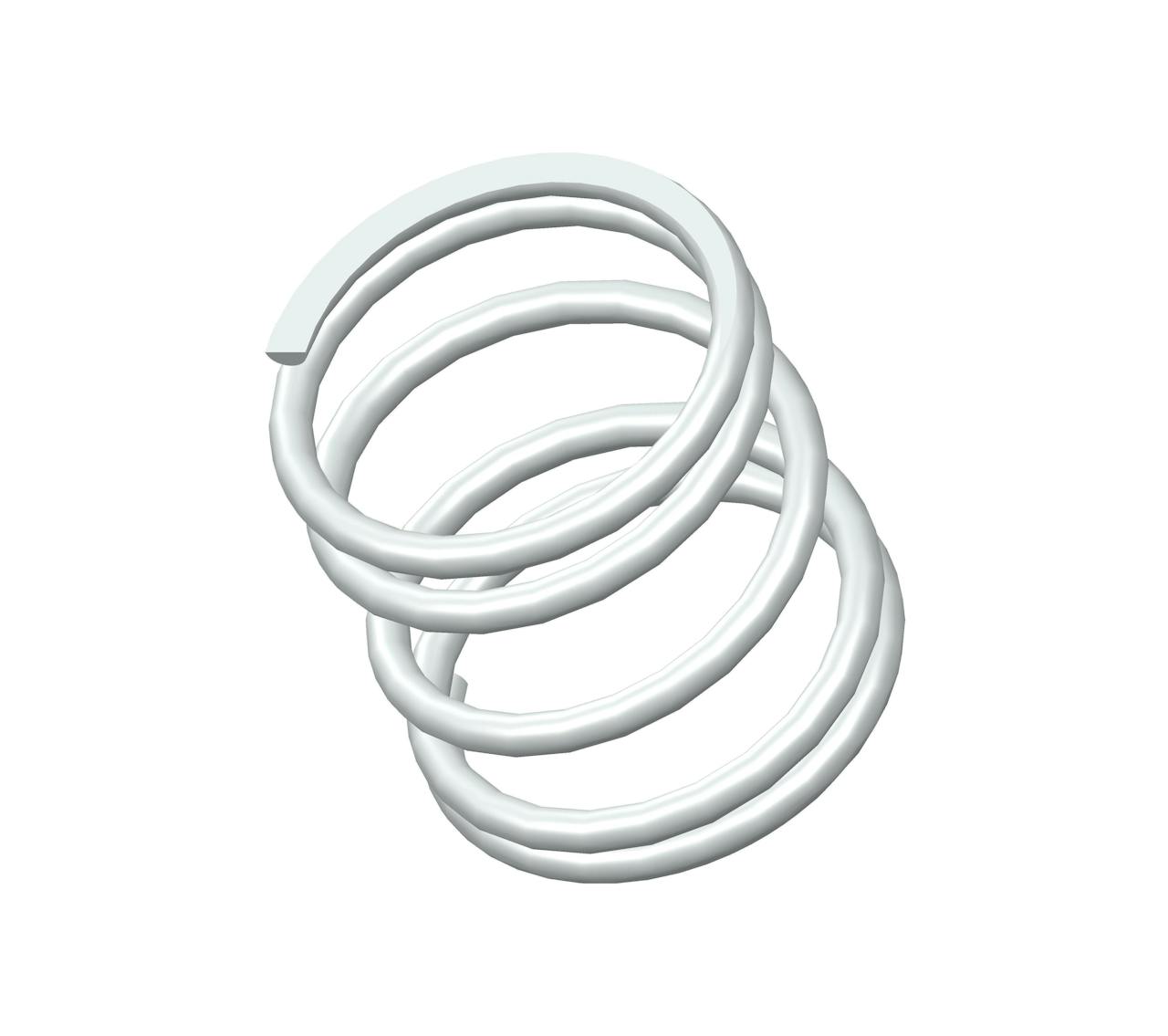

Compression spring manufactured from spring steel with 8.25 coils and closed & ground ends. This spring features an O.D. of 0.89", and an I.D. of 0.75".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10656
Ends Closed & Ground
Finish Zinc
Free Length 1.63 in
Inside Diameter 0.75 in
Material Spring Steel
Outside Diameter 0.89 in
Part Type Standard
Rate 10 lbs/in
SKU 10656CS
Solid Length 0.58 in
Suggested Max Deflection 1 in
Suggested Max Load 10 lbf
Total Coils 8.25
Wire Diameter 0.07 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10656
Ends Closed & Ground
Finish Zinc
Free Length 41.4 mm
Inside Diameter 19.05 mm
Material Spring Steel
Outside Diameter 22.61 mm
Part Type Standard
Rate 1.75 N/mm
SKU 10656CS
Solid Length 14.73 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 44.48 N
Total Coils 8.25
Wire Diameter 1.78 mm
The 10656CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.07" diameter spring steel, the 10656 spring design exhibits reliable strength across its 8.25 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the 10656 design to provide a compression spring that is 1.63" long at rest and provides a consistent rate of 10 lbs/in along its recommended maximum of 1" deflection. For best results, your application should fully accommodate the inner (0.75") and outer (0.89") diameters of this spring and be designed for its closed & ground end configuration.
