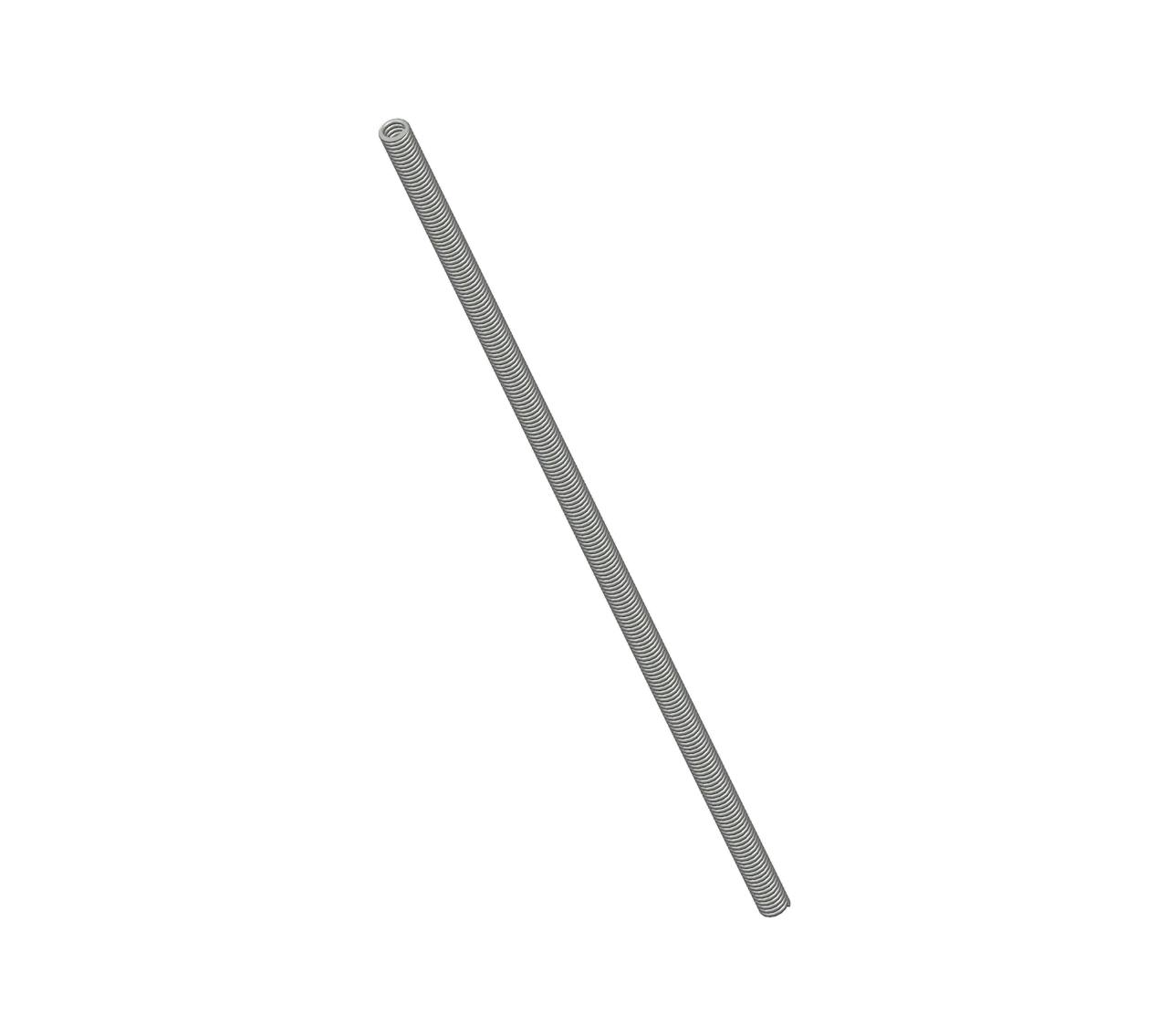

10568CS - 2.38" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 210 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.268".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10568
Ends Closed & Ground
Finish None
Free Length 2.38 in
Inside Diameter 0.268 in
Material Spring Steel
Outside Diameter 0.42 in
Part Type Standard
Rate 62 lbs/in
SKU 10568CS
Solid Length 1.59 in
Suggested Max Deflection 0.55 in
Suggested Max Load 34 lbf
Total Coils 210
Wire Diameter 0.076 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10568
Ends Closed & Ground
Finish None
Free Length 60.45 mm
Inside Diameter 6.81 mm
Material Spring Steel
Outside Diameter 10.67 mm
Part Type Standard
Rate 10.86 N/mm
SKU 10568CS
Solid Length 40.39 mm
Suggested Max Deflection 13.97 mm
Suggested Max Load 151.23 N
Total Coils 210
Wire Diameter 1.93 mm
The 10568CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.076" diameter spring steel, the 10568 spring design exhibits reliable strength across its 210 active coils, withstanding repeated compression cycles with a maximum load of 34 lbf without succumbing to fatigue.

We manufacture the 10568 design to provide a compression spring that is 2.38" long at rest and provides a consistent rate of 62 lbs/in along its recommended maximum of 0.55" deflection. For best results, your application should fully accommodate the inner (0.268") and outer (0.42") diameters of this spring and be designed for its closed & ground end configuration.
