Century Spring

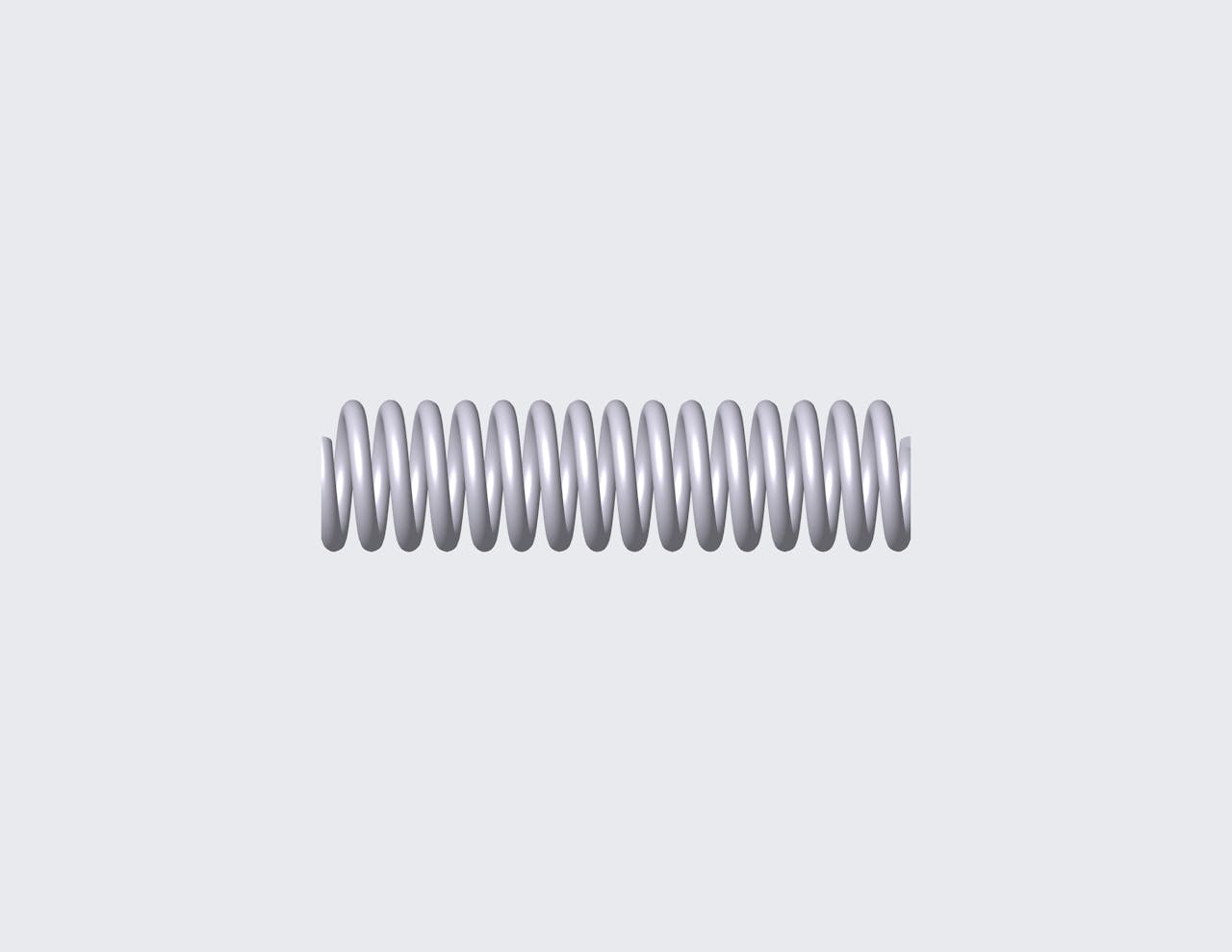

50404SCS - 1.969" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 15.1 coils and closed & ground ends. This spring features an O.D. of 0.509", and an I.D. of 0.365".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50404S
Ends Closed & Ground
Finish Passivated
Free Length 1.969 in
Inside Diameter 0.365 in
Material 316 Stainless Steel
Outside Diameter 0.509 in
Rate 30.807 lbs/in
SKU 50404SCS
Solid Length 1.088 in
Suggested Max Deflection 0.643 in
Suggested Max Load 19.798 lbf
Total Coils 15.1
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50404S
Ends Closed & Ground
Finish Passivated
Free Length 50.01 mm
Inside Diameter 9.27 mm
Material 316 Stainless Steel
Outside Diameter 12.93 mm
Rate 5.39 N/mm
SKU 50404SCS
Solid Length 27.64 mm
Suggested Max Deflection 16.33 mm
Suggested Max Load 88.06 N
Total Coils 15.1
Wire Diameter 1.83 mm
The 50404S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50404SCS compression spring is designed with a free length of 1.575" total of 12.25 coils, and a rate of 39.372 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50404S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
