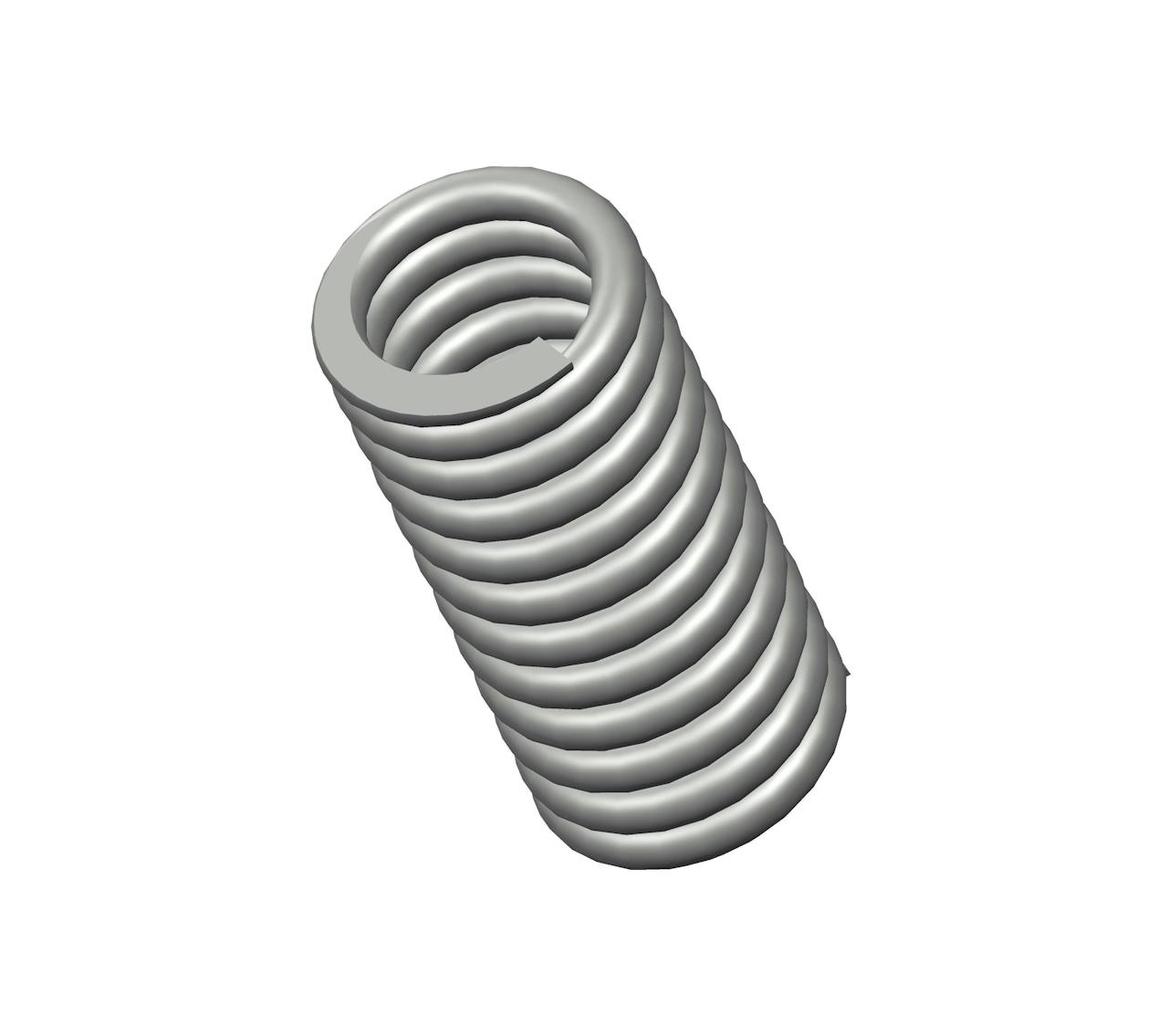

10565CS - 1.59" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 11.8 coils and closed & ground ends. This spring features an O.D. of 0.718", and an I.D. of 0.488".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10565
Ends Closed & Ground
Finish Zinc
Free Length 1.59 in
Inside Diameter 0.488 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 118 lbs/in
SKU 10565CS
Solid Length 1.35 in
Suggested Max Deflection 0.24 in
Suggested Max Load 28 lbf
Total Coils 11.8
Wire Diameter 0.115 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10565
Ends Closed & Ground
Finish Zinc
Free Length 40.39 mm
Inside Diameter 12.4 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 20.66 N/mm
SKU 10565CS
Solid Length 34.29 mm
Suggested Max Deflection 6.1 mm
Suggested Max Load 124.54 N
Total Coils 11.8
Wire Diameter 2.92 mm
The 10565CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.115" diameter spring steel, the 10565 spring design exhibits reliable strength across its 11.8 active coils, withstanding repeated compression cycles with a maximum load of 28 lbf without succumbing to fatigue.

We manufacture the 10565 design to provide a compression spring that is 1.59" long at rest and provides a consistent rate of 118 lbs/in along its recommended maximum of 0.24" deflection. For best results, your application should fully accommodate the inner (0.488") and outer (0.718") diameters of this spring and be designed for its closed & ground end configuration.
