Century Spring

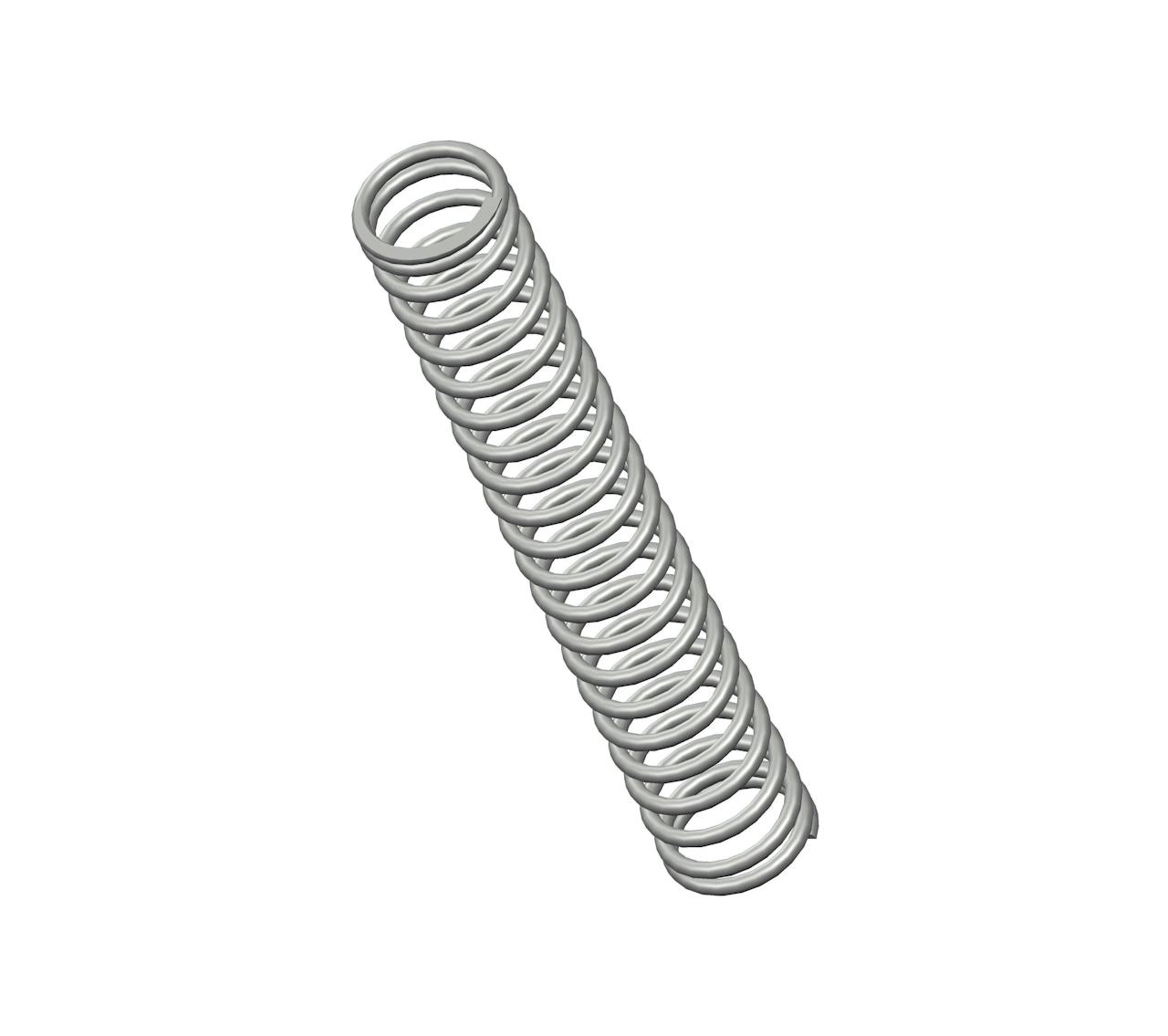

3557CS - 2.375" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 22 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.293".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3557
Ends Closed & Ground
Finish Zinc
Free Length 2.375 in
Inside Diameter 0.293 in
Material Music Wire
Outside Diameter 0.375 in
Part Type Standard
Rate 5.5 lbs/in
SKU 3557CS
Solid Length 0.9 in
Suggested Max Deflection 1.5 in
Suggested Max Load 8 lbf
Total Coils 22
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3557
Ends Closed & Ground
Finish Zinc
Free Length 60.33 mm
Inside Diameter 7.44 mm
Material Music Wire
Outside Diameter 9.53 mm
Part Type Standard
Rate 0.96 N/mm
SKU 3557CS
Solid Length 22.86 mm
Suggested Max Deflection 38.1 mm
Suggested Max Load 35.58 N
Total Coils 22
Wire Diameter 1.04 mm
The 3557CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.041" diameter music wire, the 3557 spring design exhibits reliable strength across its 22 active coils, withstanding repeated compression cycles with a maximum load of 8 lbf without succumbing to fatigue.

We manufacture the 3557 design to provide a compression spring that is 2.375" long at rest and provides a consistent rate of 5.5 lbs/in along its recommended maximum of 1.5" deflection. For best results, your application should fully accommodate the inner (0.293") and outer (0.375") diameters of this spring and be designed for its closed & ground end configuration.
