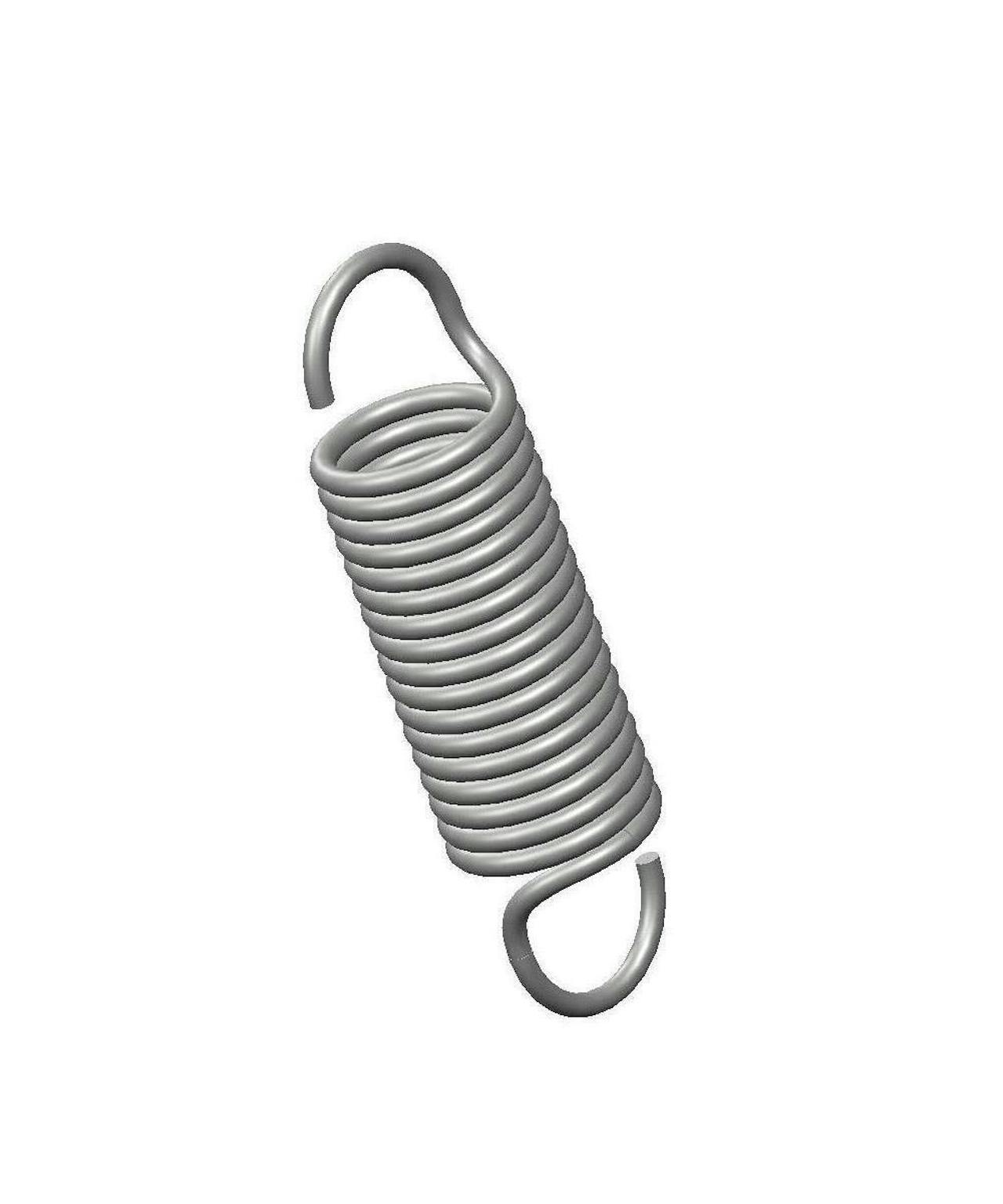

ZZ4-22CS - 0.5 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.125 Inch and an initial tension of 0.2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | ZZ4-22 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.2 lb |
| Length | 0.5 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 2.5 lbs/in |
| SKU | ZZ4-22CS |
| Sugg Max Deflection | 0.51 in |
| Sugg Max Load | 1.4 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.015 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | ZZ4-22 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.09 kg |
| Length | 12.7 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 0.44 N/mm |
| SKU | ZZ4-22CS |
| Sugg Max Deflection | 12.95 mm |
| Sugg Max Load | 6.23 N |
| Wind Direction | Left |
| Wire Diameter | 0.38 mm |
