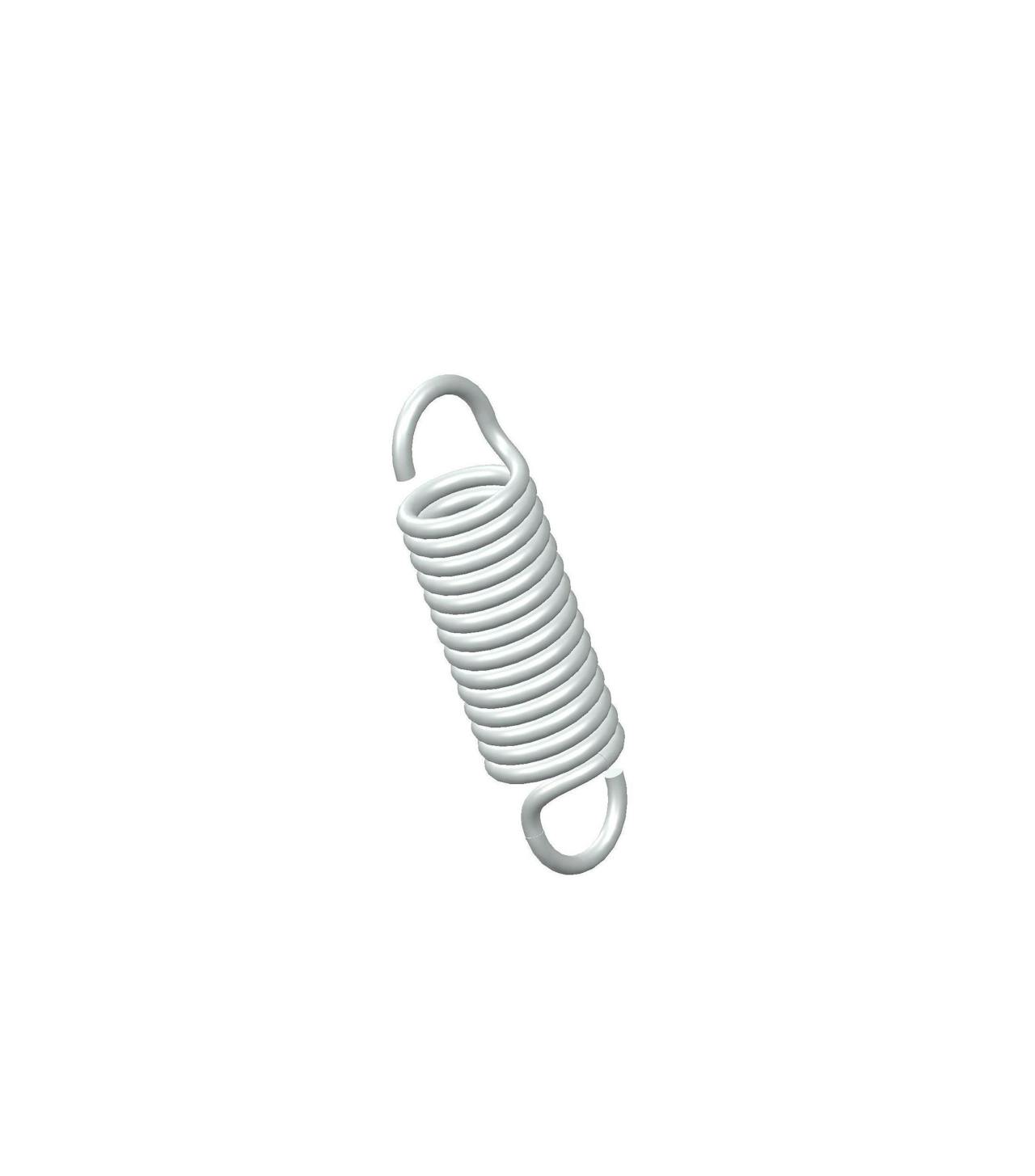

ZZ2-31CS - 0.69 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.172 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ2-31
Ends Machine Hook
Finish None
Initial Tension 0.7 lb
Length 0.69 in
Material 302/304 Stainless Steel
Outside Diameter 0.172 in
Part Type Standard
Rate 9.6 lbs/in
SKU ZZ2-31CS
Sugg Max Deflection 0.27 in
Sugg Max Load 3.3 lbf
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ2-31
Ends Machine Hook
Finish None
Initial Tension 0.32 kg
Length 17.53 mm
Material 302/304 Stainless Steel
Outside Diameter 4.37 mm
Part Type Standard
Rate 1.68 N/mm
SKU ZZ2-31CS
Sugg Max Deflection 6.86 mm
Sugg Max Load 14.68 N
Wire Diameter 0.64 mm
