Century Spring

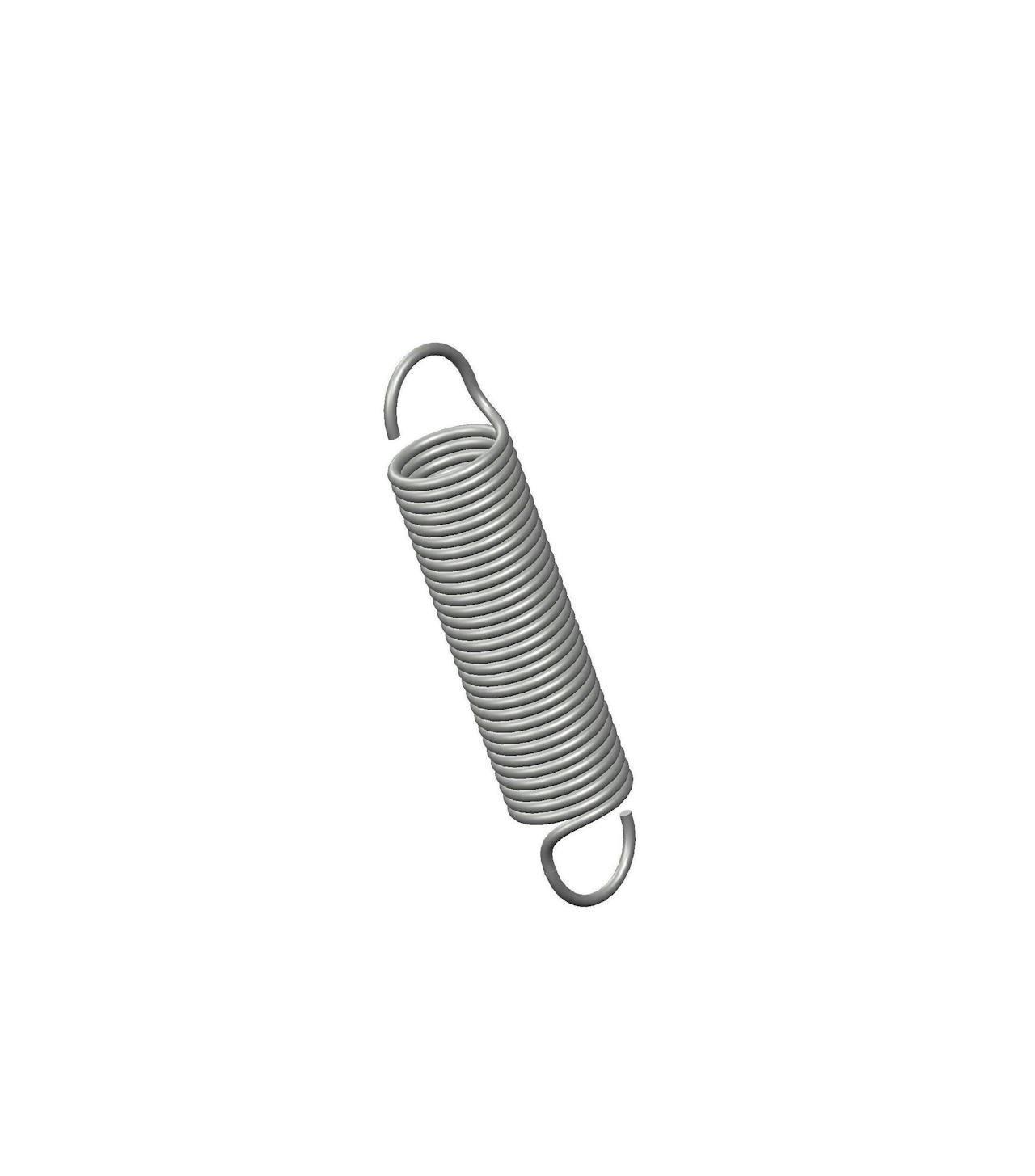

ZZ2-23CS - 0.78 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.156 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ2-23
Ends Machine Hook
Finish None
Initial Tension 0.1 lb
Length 0.78 in
Material Music Wire
Outside Diameter 0.156 in
Part Type Standard
Rate 1.1 lbs/in
SKU ZZ2-23CS
Sugg Max Deflection 1.1 in
Sugg Max Load 1.4 lbf
Wind Direction Left
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ2-23
Ends Machine Hook
Finish None
Initial Tension 0.05 kg
Length 19.81 mm
Material Music Wire
Outside Diameter 3.96 mm
Part Type Standard
Rate 0.19 N/mm
SKU ZZ2-23CS
Sugg Max Deflection 27.94 mm
Sugg Max Load 6.23 N
Wind Direction Left
Wire Diameter 0.41 mm
