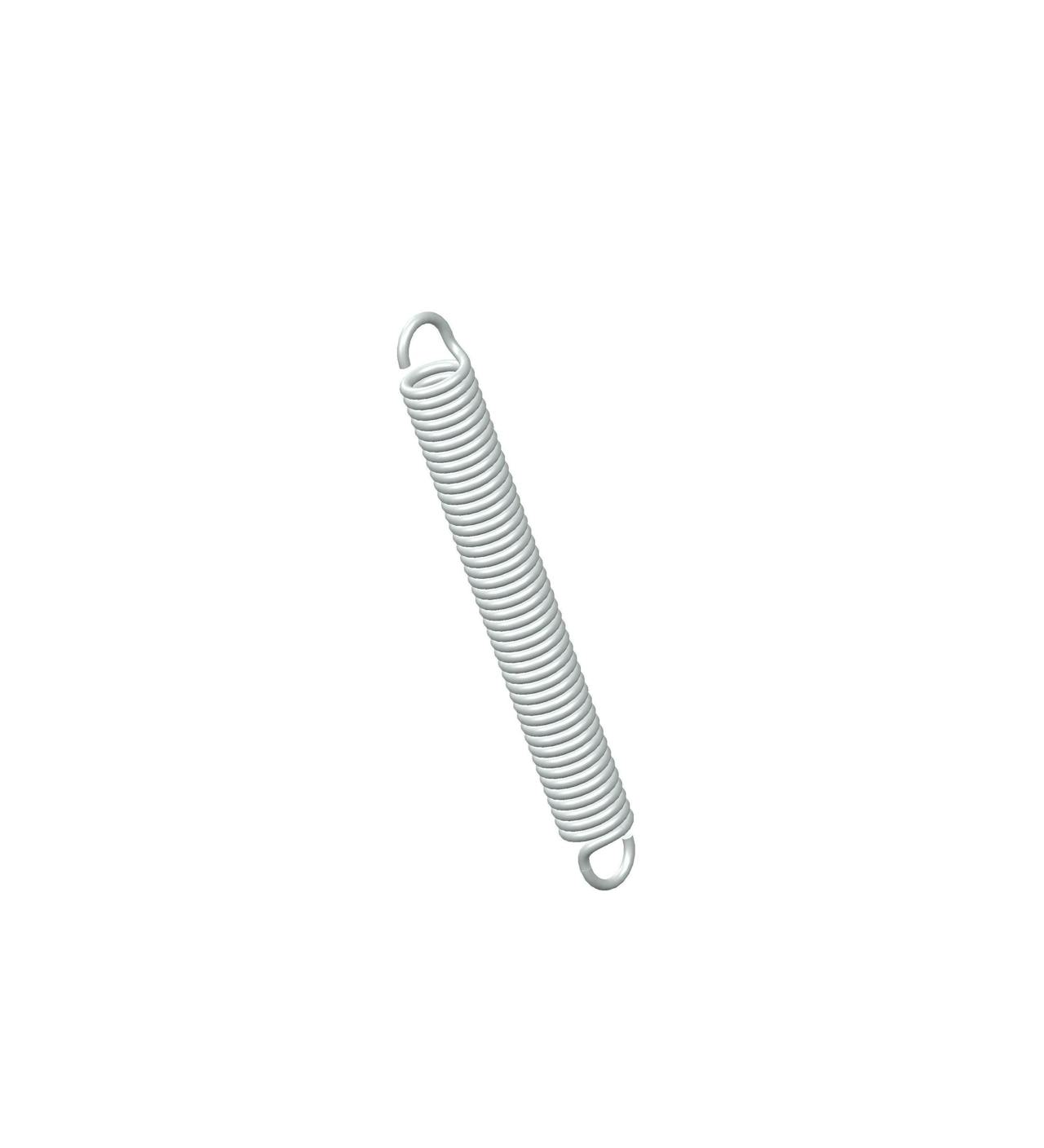

ZZ1-56CS - 1.09 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ1-56
Ends Machine Hook
Finish None
Initial Tension 0.5 lb
Length 1.09 in
Material 302/304 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 4.4 lbs/in
SKU ZZ1-56CS
Sugg Max Deflection 0.43 in
Sugg Max Load 2.4 lbf
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ1-56
Ends Machine Hook
Finish None
Initial Tension 0.23 kg
Length 27.69 mm
Material 302/304 Stainless Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.77 N/mm
SKU ZZ1-56CS
Sugg Max Deflection 10.92 mm
Sugg Max Load 10.68 N
Wire Diameter 0.51 mm
