YY-58CS - 0.69" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

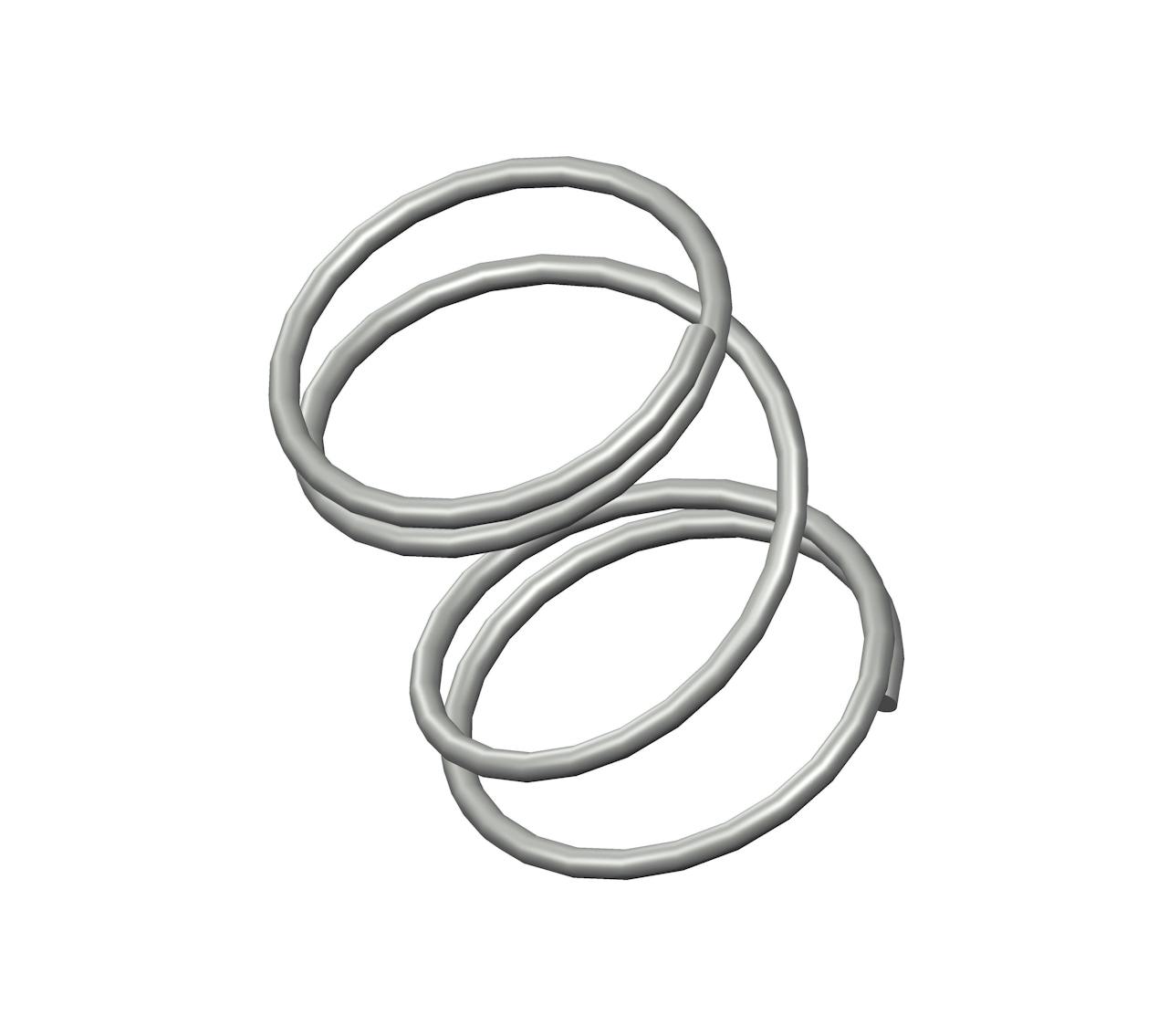

Compression spring manufactured from spring steel with 4 coils and closed ends. This spring features an O.D. of 0.531", and an I.D. of 0.463".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name YY-58
Ends Closed
Finish Gold Iridite
Free Length 0.69 in
Inside Diameter 0.463 in
Material Spring Steel
Outside Diameter 0.531 in
Part Type Standard
Rate 7.8 lbs/in
SKU YY-58CS
Solid Length 0.17 in
Suggested Max Deflection 0.39 in
Suggested Max Load 3 lbf
Total Coils 4
Wire Diameter 0.034 in
The compression spring YY-58CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the YY-58 compression spring design exhibits exceptional tensile strength and resilience.

The YY-58 design is manufactured with a free length of 0.69", with an outer diameter of 0.531", an inner diameter of 0.463", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.8 lbs/in.

The YY-58CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring YY-58 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
