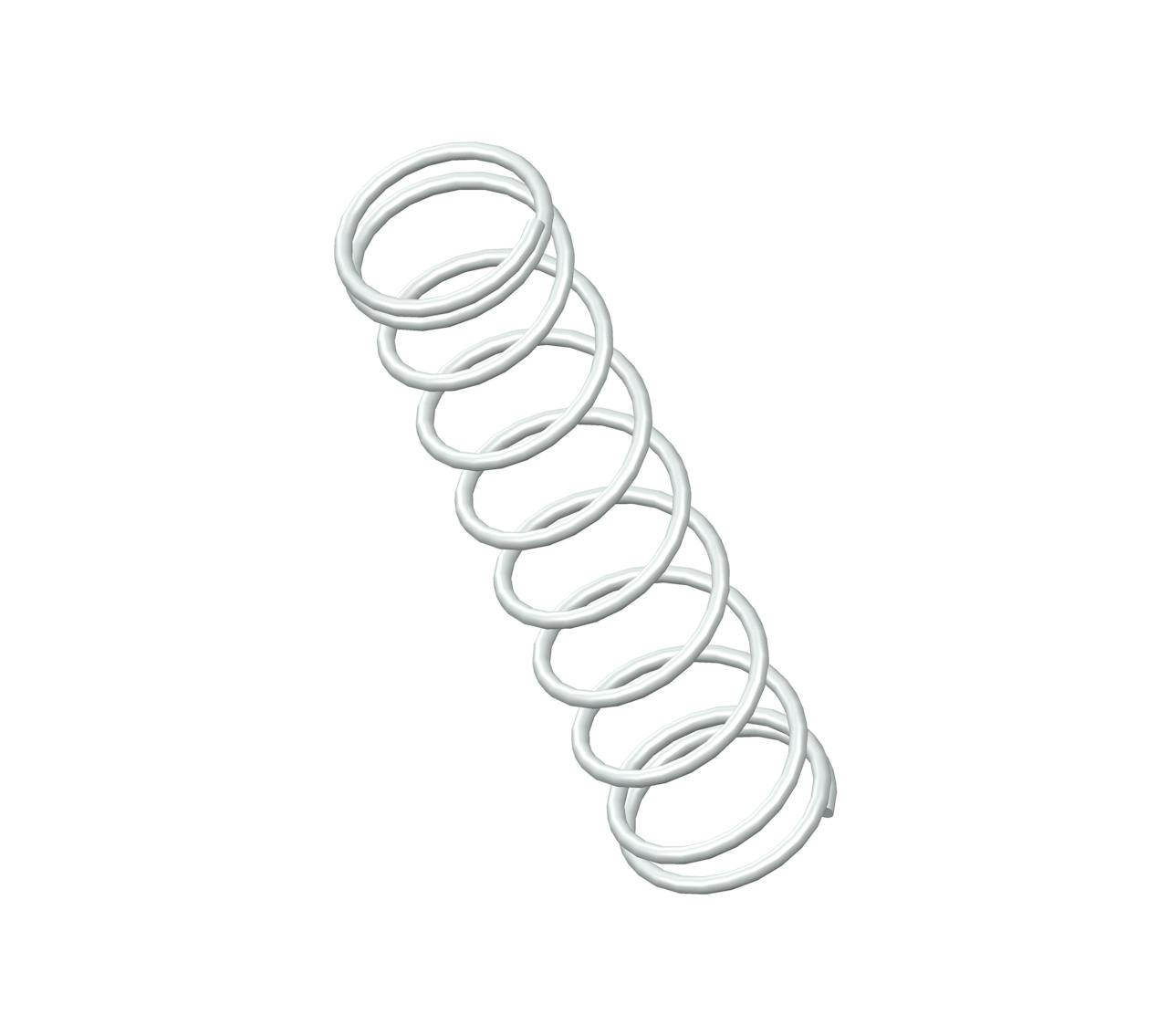

YY-3CS - 1.06" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.21".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | YY-3 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.06 in |
| Inside Diameter | 0.21 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 2.1 lbs/in |
| SKU | YY-3CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.62 in |
| Suggested Max Load | 1.3 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | YY-3 |
| Ends | Closed |
| Finish | None |
| Free Length | 26.92 mm |
| Inside Diameter | 5.33 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 0.37 N/mm |
| SKU | YY-3CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 15.75 mm |
| Suggested Max Load | 5.78 N |
| Total Coils | 10 |
| Wire Diameter | 0.51 mm |
The compression spring YY-3CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the YY-3 compression spring design exhibits exceptional tensile strength and resilience.
The YY-3 design is manufactured with a free length of 1.06", with an outer diameter of 0.25", an inner diameter of 0.21", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.1 lbs/in.
The YY-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring YY-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The YY-3 design is manufactured with a free length of 1.06", with an outer diameter of 0.25", an inner diameter of 0.21", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.1 lbs/in.
The YY-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring YY-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
