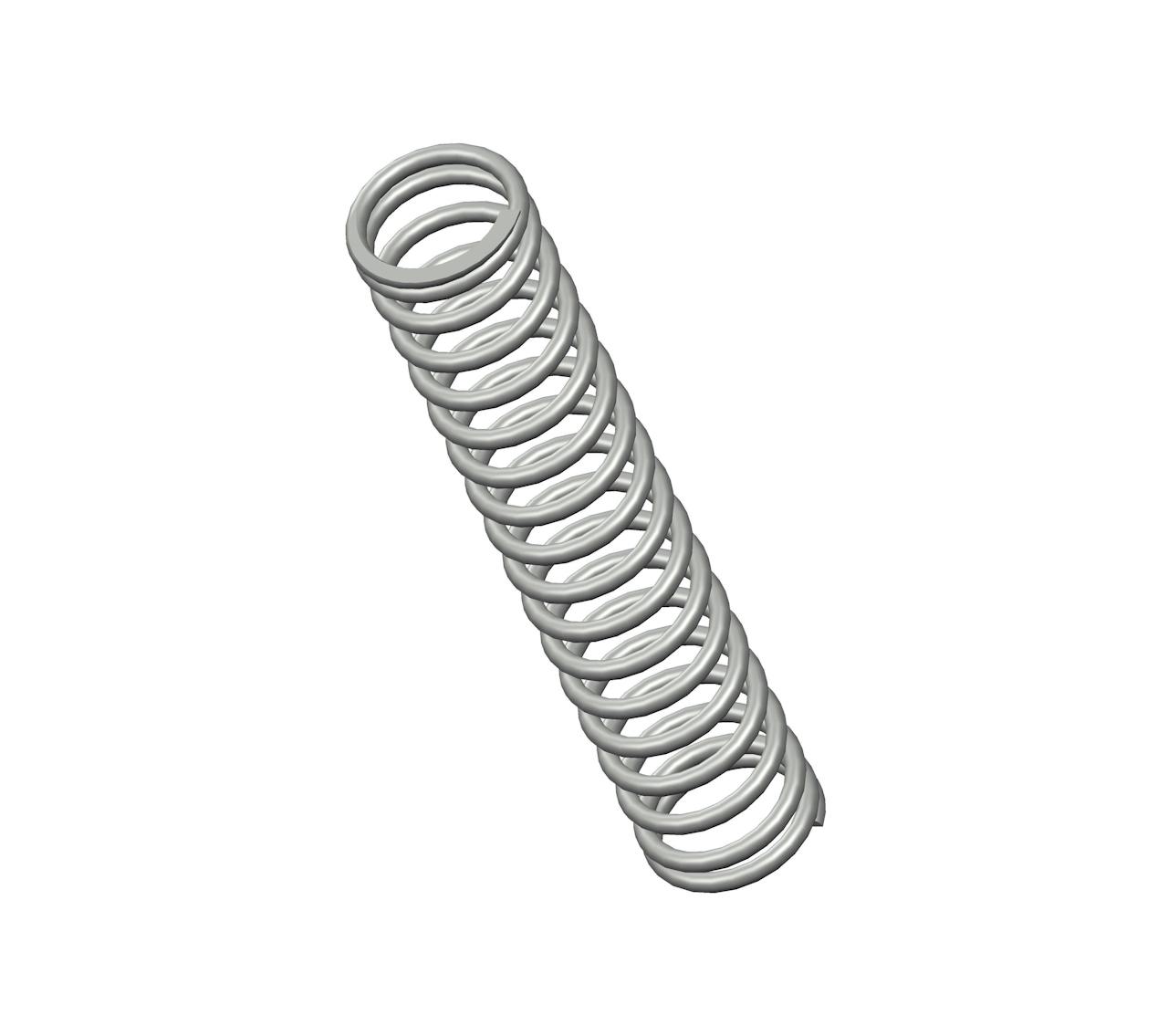

WW-59CS - 1.63" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 18 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.242".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | WW-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.63 in |
| Inside Diameter | 0.242 in |
| Material | Spring Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | WW-59CS |
| Solid Length | 0.63 in |
| Suggested Max Deflection | 0.83 in |
| Suggested Max Load | 5.2 lbf |
| Total Coils | 18 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | WW-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 41.4 mm |
| Inside Diameter | 6.15 mm |
| Material | Spring Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | WW-59CS |
| Solid Length | 16 mm |
| Suggested Max Deflection | 21.08 mm |
| Suggested Max Load | 23.13 N |
| Total Coils | 18 |
| Wire Diameter | 0.89 mm |
The compression spring WW-59CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the WW-59 compression spring design exhibits exceptional tensile strength and resilience.
The WW-59 design is manufactured with a free length of 1.63", with an outer diameter of 0.312", an inner diameter of 0.242", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The WW-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring WW-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The WW-59 design is manufactured with a free length of 1.63", with an outer diameter of 0.312", an inner diameter of 0.242", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The WW-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring WW-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
