Century Spring

WW-36CS - 0.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

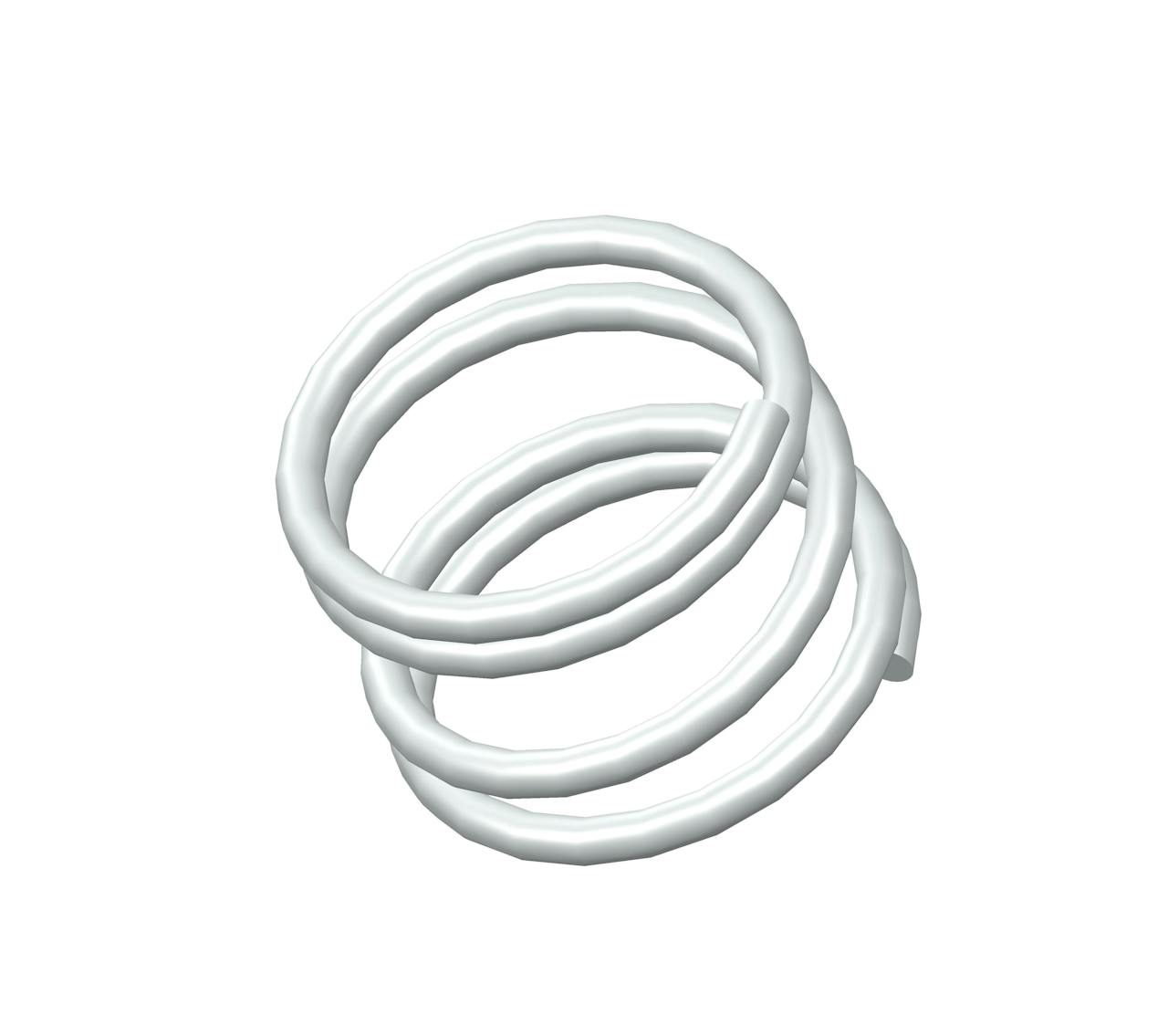

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed ends. This spring features an O.D. of 0.609", and an I.D. of 0.501".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name WW-36
Ends Closed
Finish None
Free Length 0.5 in
Inside Diameter 0.501 in
Material 302/304 Stainless Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 31 lbs/in
SKU WW-36CS
Solid Length 0.27 in
Suggested Max Deflection 0.23 in
Suggested Max Load 7.1 lbf
Total Coils 4
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name WW-36
Ends Closed
Finish None
Free Length 12.7 mm
Inside Diameter 12.73 mm
Material 302/304 Stainless Steel
Outside Diameter 15.47 mm
Part Type Standard
Rate 5.43 N/mm
SKU WW-36CS
Solid Length 6.86 mm
Suggested Max Deflection 5.84 mm
Suggested Max Load 31.58 N
Total Coils 4
Wire Diameter 1.37 mm
The WW-36 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The WW-36CS compression spring is designed with a free length of 1" total of 6 coils, and a rate of 7.6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The WW-36 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
