Century Spring

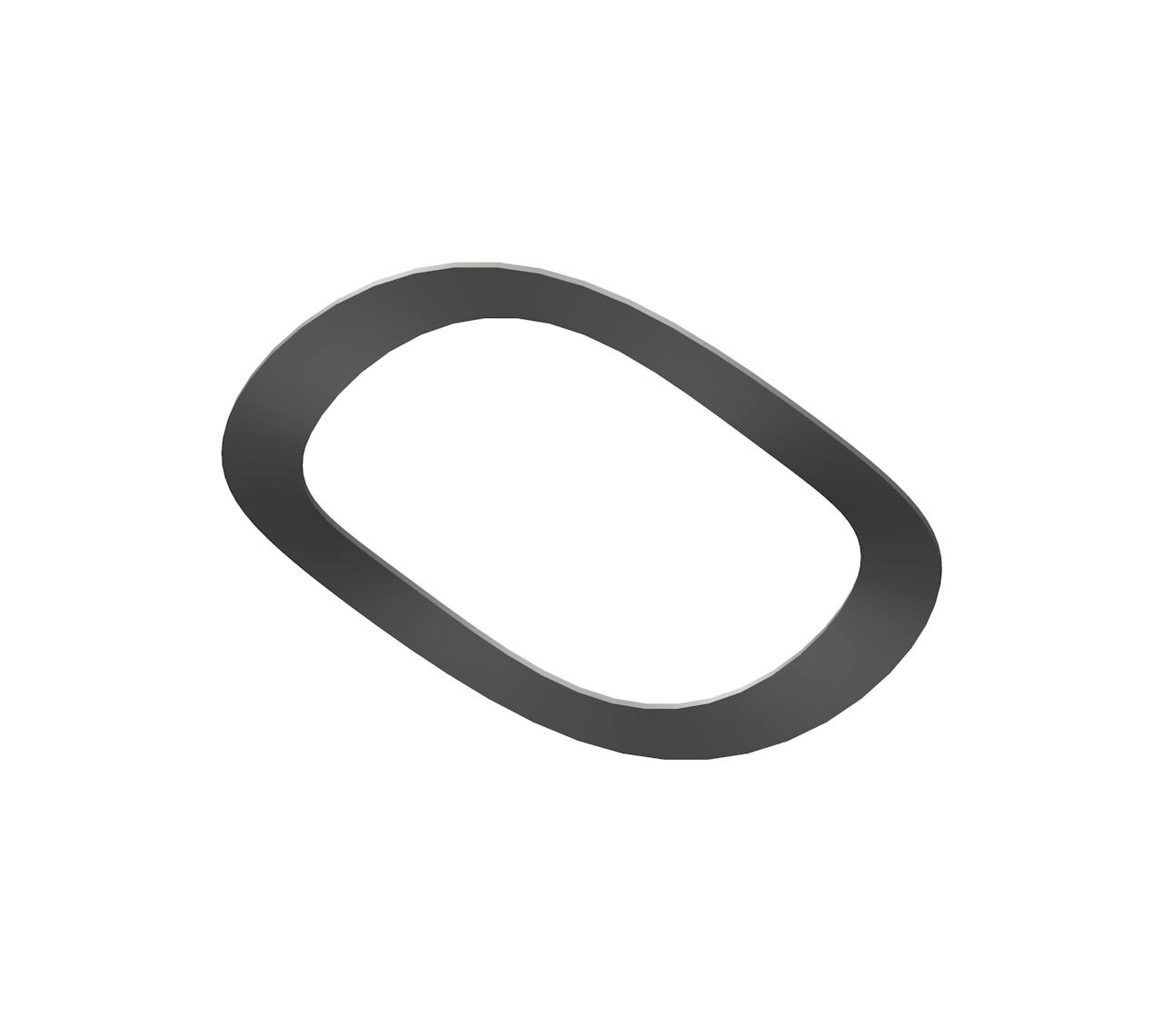

WAV-25091CS - 5.672 Inch ID 7.325 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 5.672 Inch and an outside diameter of 7.325 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 305 lb
Display Name WAV-25091
Finish None
Inside Diameter 5.672 in
Material Spring Steel
Maximum Deflection at 100% Height 0.269 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 7.325 in
Outside Height 0.575 in
SKU WAV-25091CS
T 0.065 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 138.32 kg
Display Name WAV-25091
Finish None
Inside Diameter 144.07 mm
Material Spring Steel
Maximum Deflection at 100% Height 6.83 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 186.06 mm
Outside Height 14.61 mm
SKU WAV-25091CS
T 1.65 mm
