Century Spring

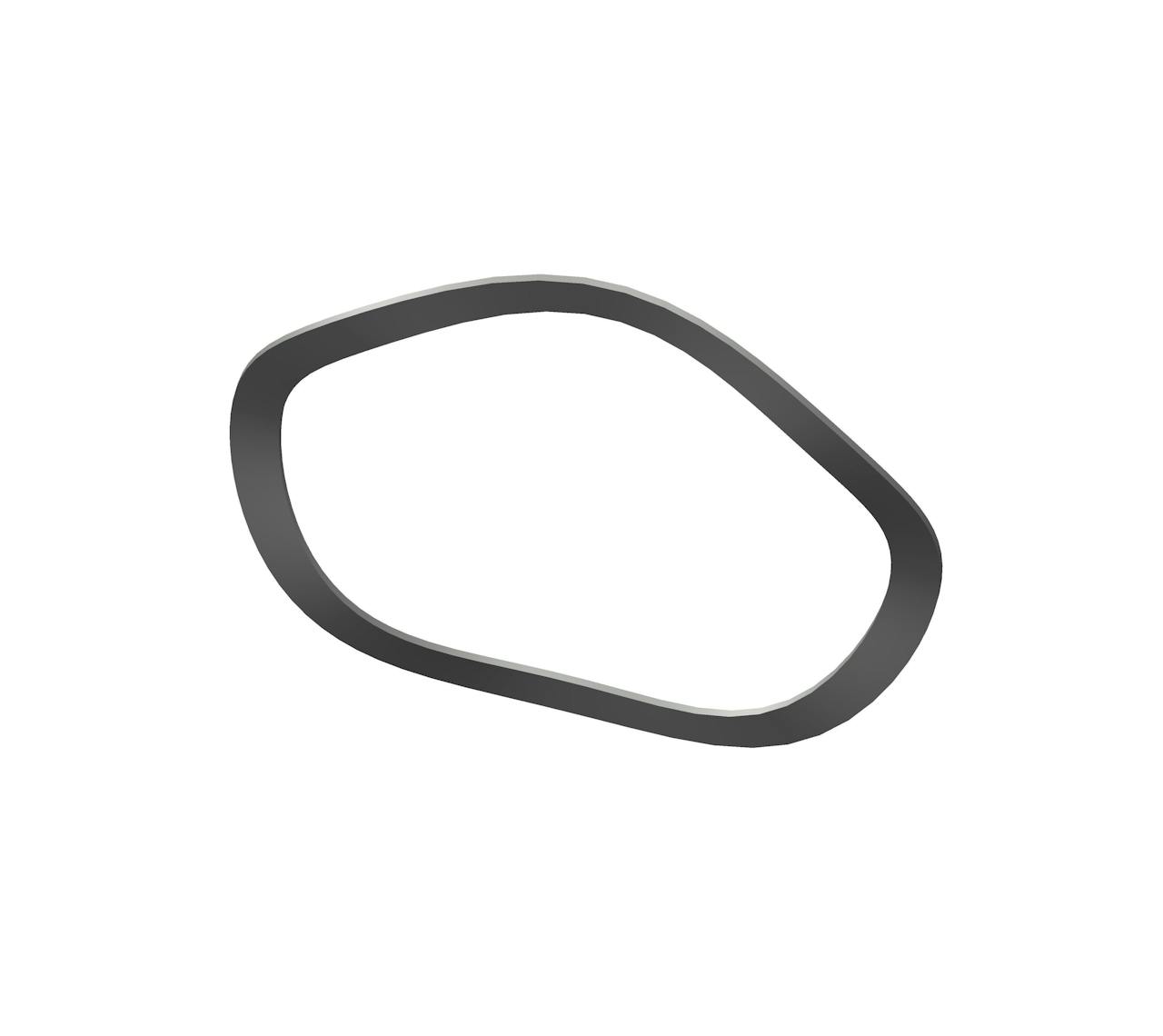

WAV-25040CS - 1.25 Inch ID 1.453 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 1.25 Inch and an outside diameter of 1.453 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 28.6 lb
Display Name WAV-25040
Finish None
Inside Diameter 1.25 in
Material Spring Steel
Maximum Deflection at 100% Height 0.043 in
Measurement Units Standard
Number of Waves 4
Outside Diameter 1.453 in
Outside Height 0.09 in
SKU WAV-25040CS
T 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 12.97 kg
Display Name WAV-25040
Finish None
Inside Diameter 31.75 mm
Material Spring Steel
Maximum Deflection at 100% Height 1.09 mm
Measurement Units Standard
Number of Waves 4
Outside Diameter 36.91 mm
Outside Height 2.29 mm
SKU WAV-25040CS
T 0.41 mm
