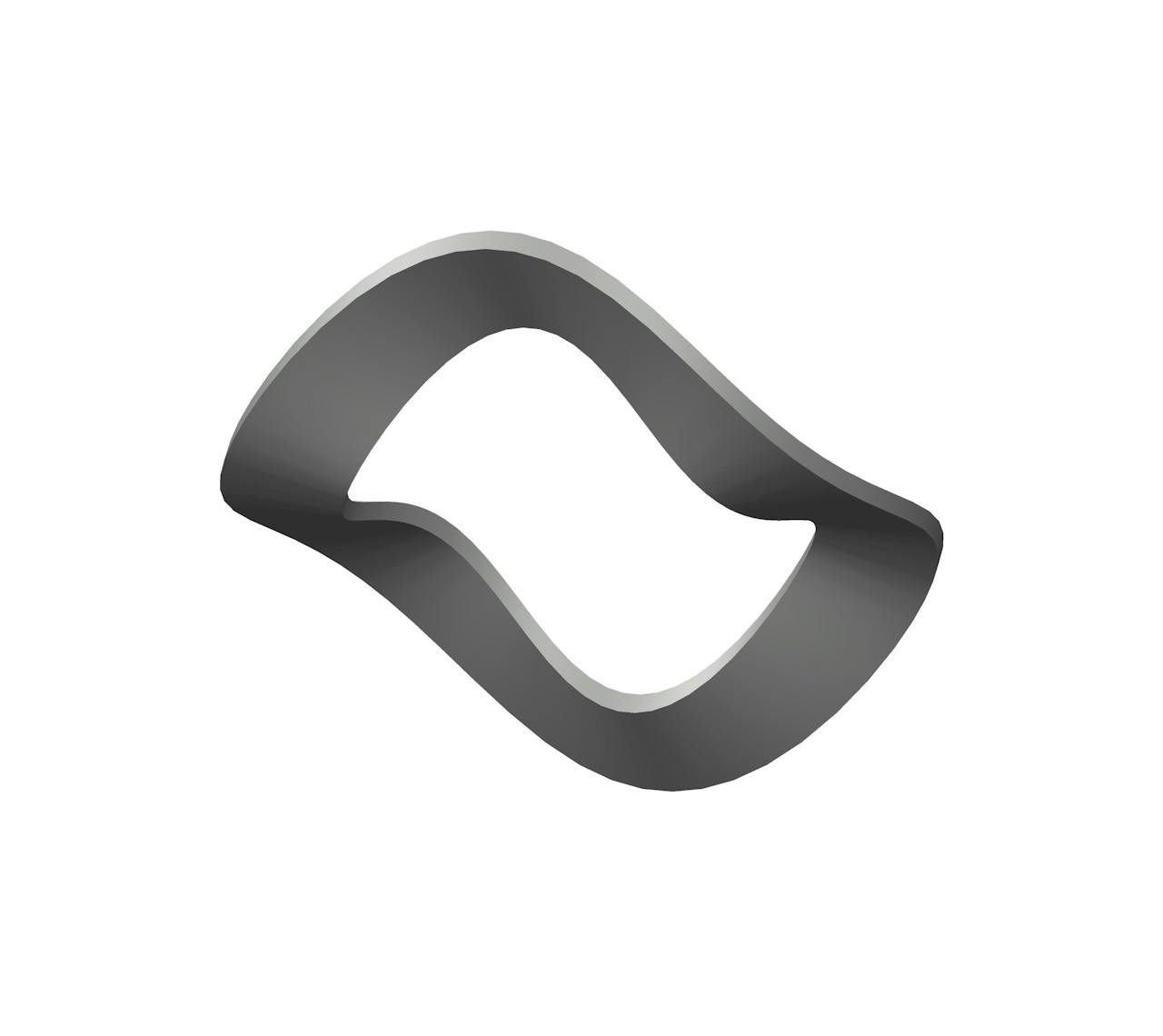

WAV-24987CS - 0.098 Inch ID 0.152 Inch OD Wave Disc Spring

Inventory:
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.098 Inch and an outside diameter of 0.152 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 4 lb
Display Name WAV-24987
Finish None
Inside Diameter 0.098 in
Material Spring Steel
Maximum Deflection at 100% Height 0.002 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.152 in
Outside Height 0.032 in
SKU WAV-24987CS
T 0.005 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 1.81 kg
Display Name WAV-24987
Finish None
Inside Diameter 2.49 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.05 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 3.86 mm
Outside Height 0.81 mm
SKU WAV-24987CS
T 0.13 mm
