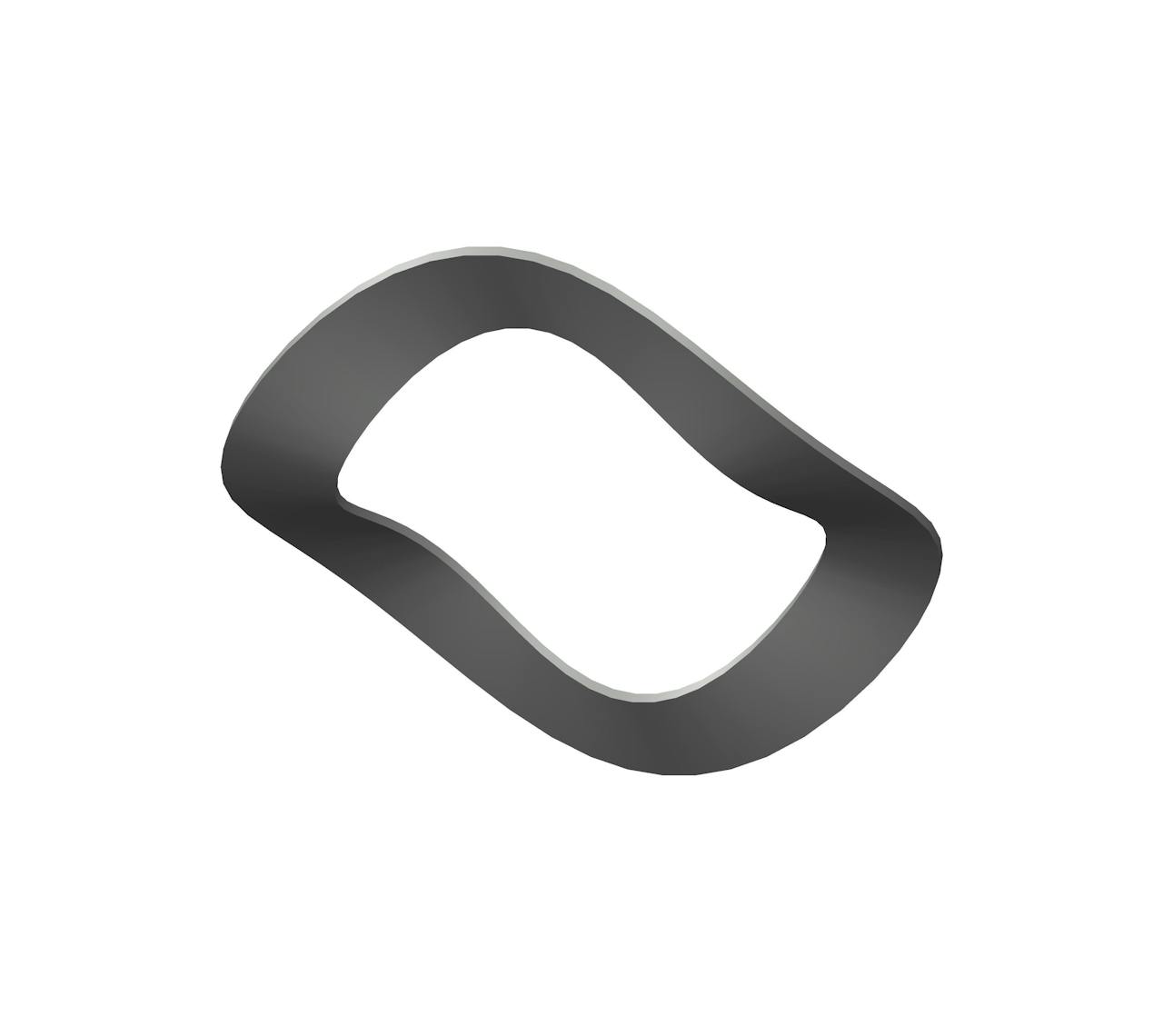

WAV-24887CS - 0.441 Inch ID 0.655 Inch OD Wave Disc Spring

Inventory:
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.441 Inch and an outside diameter of 0.655 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 13.7 lb
Display Name WAV-24887
Finish None
Inside Diameter 0.441 in
Material Spring Steel
Maximum Deflection at 100% Height 0.02 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.655 in
Outside Height 0.094 in
SKU WAV-24887CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 6.21 kg
Display Name WAV-24887
Finish None
Inside Diameter 11.2 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.51 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 16.64 mm
Outside Height 2.39 mm
SKU WAV-24887CS
T 0.25 mm
