Century Spring

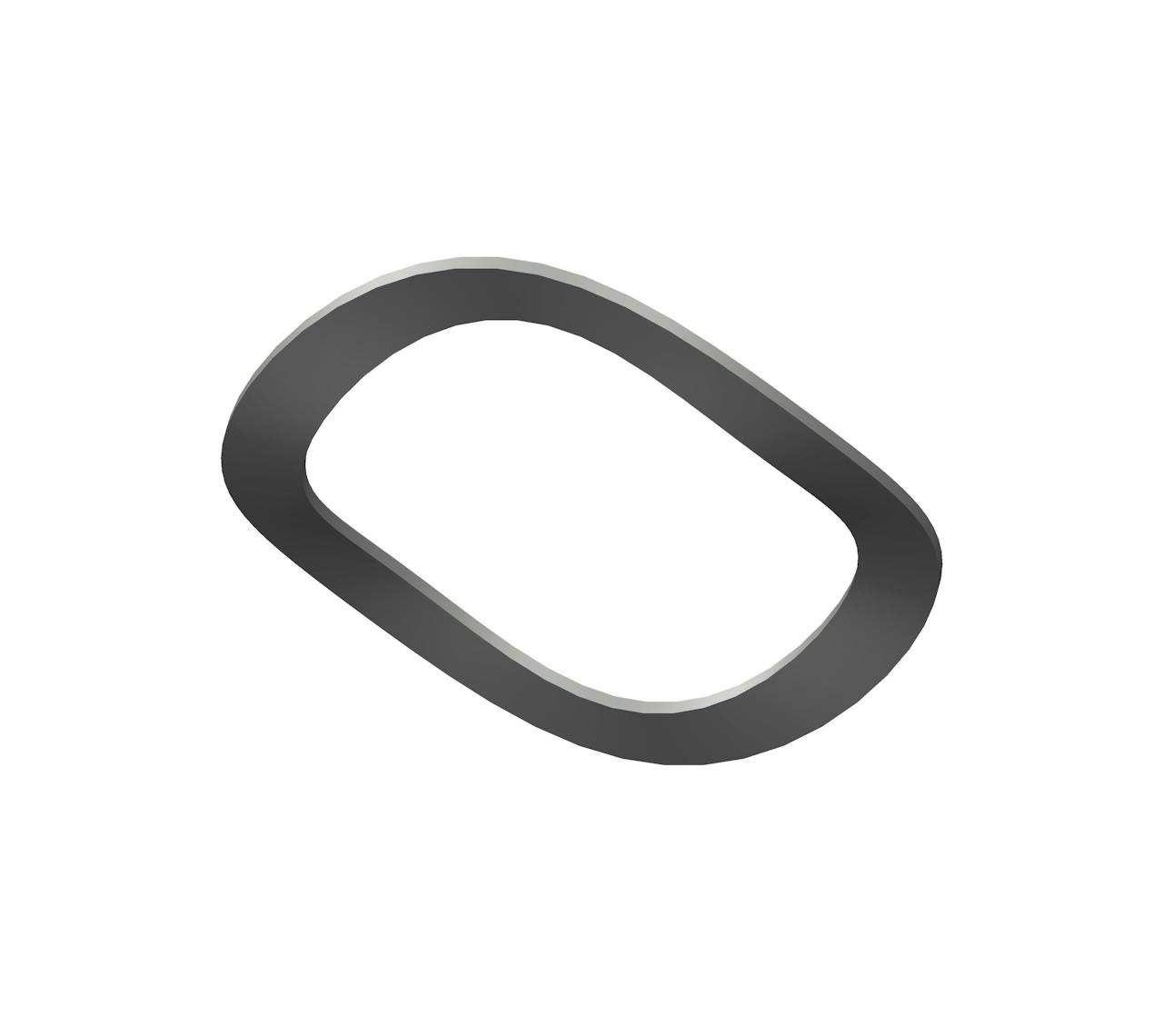

WAV-24859CS - 0.385 Inch ID 0.5 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.385 Inch and an outside diameter of 0.5 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 6.3 lb
Display Name WAV-24859
Finish None
Inside Diameter 0.385 in
Material Spring Steel
Maximum Deflection at 100% Height 0.013 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.5 in
Outside Height 0.05 in
SKU WAV-24859CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 2.86 kg
Display Name WAV-24859
Finish None
Inside Diameter 9.78 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.33 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 12.7 mm
Outside Height 1.27 mm
SKU WAV-24859CS
T 0.25 mm
