Century Spring

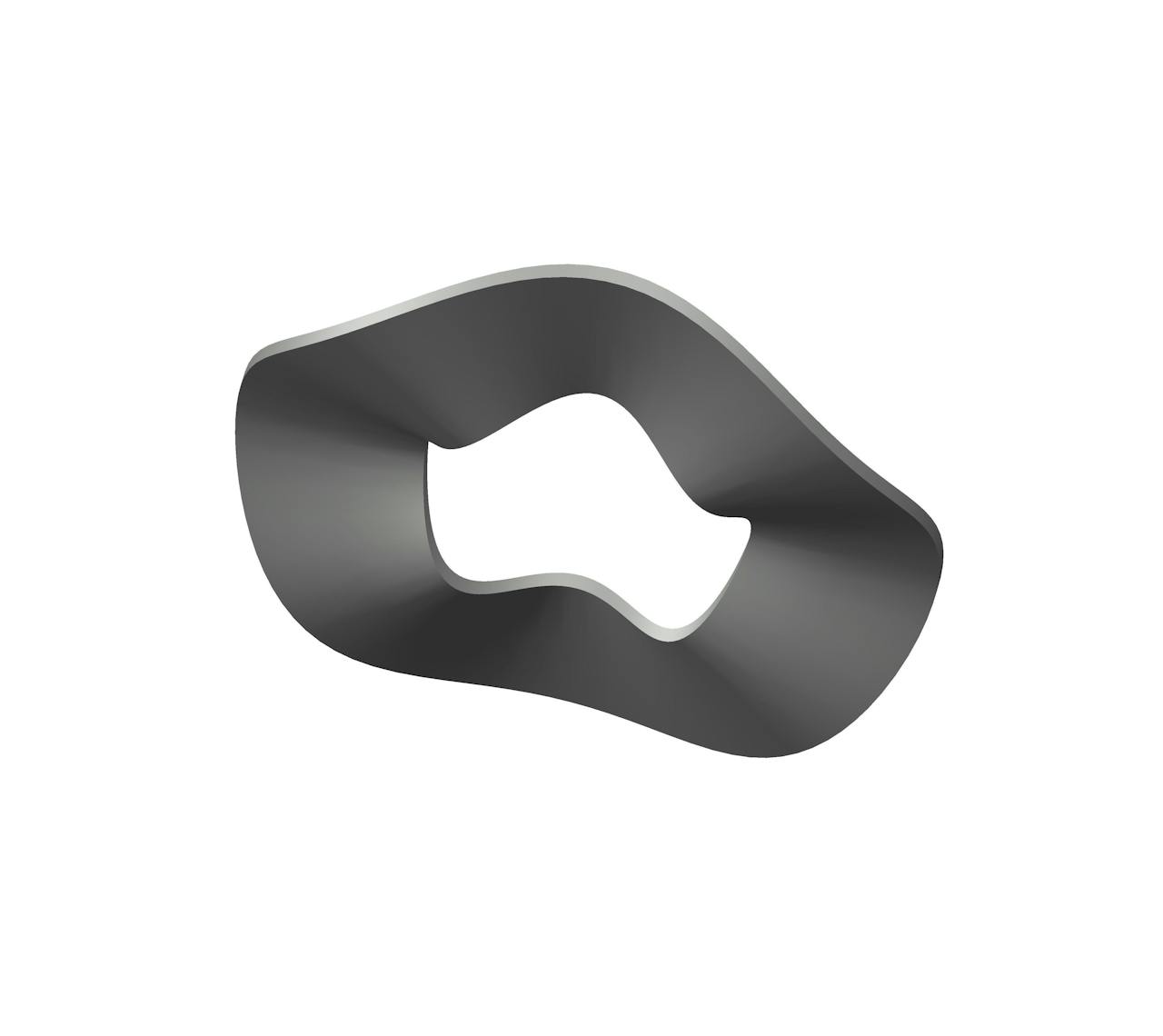

WAV-24795CS - 0.203 Inch ID 0.438 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.203 Inch and an outside diameter of 0.438 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name WAV-24795
Finish None
Inside Diameter 0.203 in
Material Spring Steel
Maximum Deflection at 100% Height 0.004 in
Measurement Units Standard
Number of Waves 4
Outside Diameter 0.438 in
Outside Height 0.05 in
SKU WAV-24795CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name WAV-24795
Finish None
Inside Diameter 5.16 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.1 mm
Measurement Units Standard
Number of Waves 4
Outside Diameter 11.13 mm
Outside Height 1.27 mm
SKU WAV-24795CS
T 0.25 mm
