Century Spring

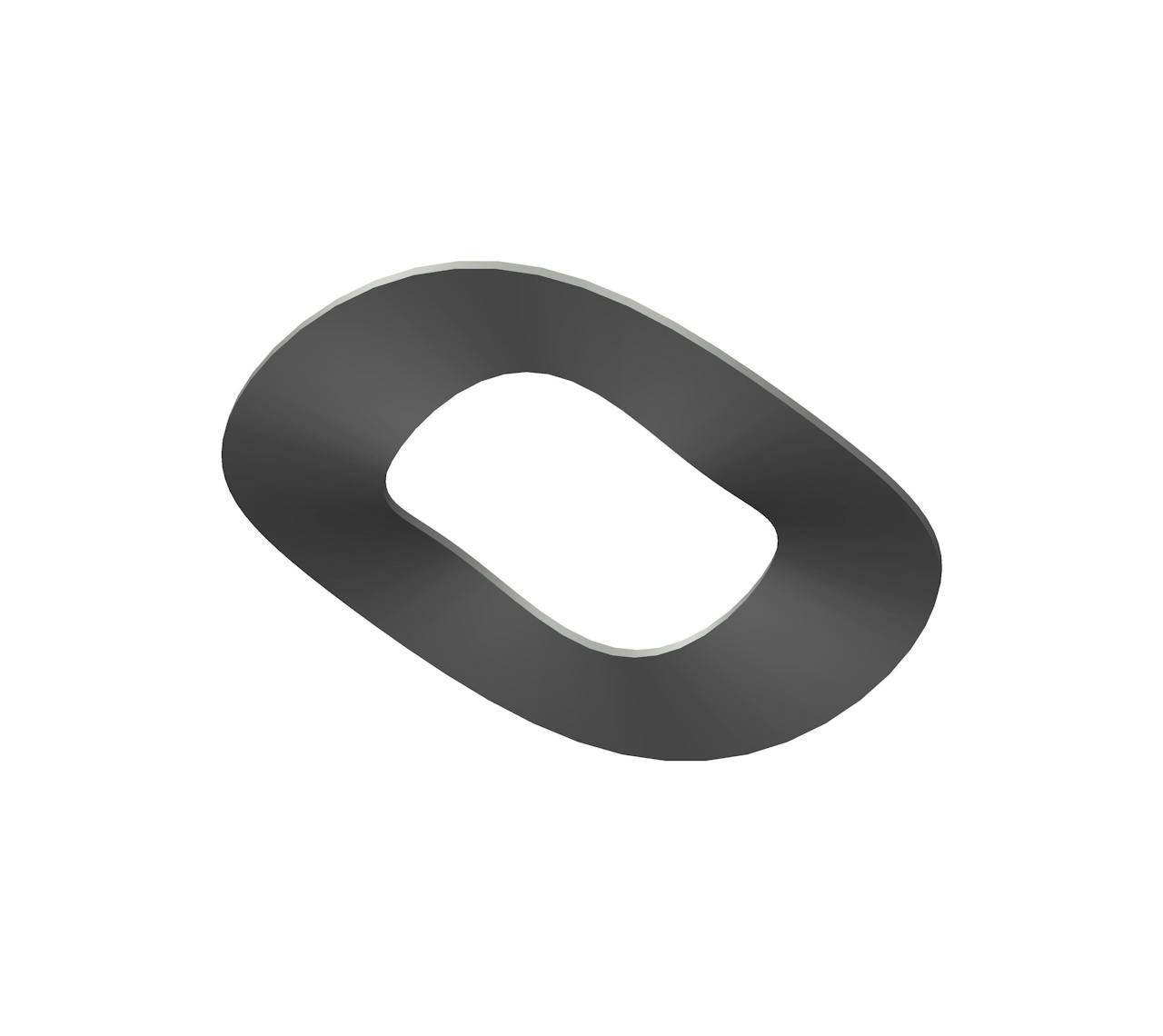

WAV-24791CS - 0.203 Inch ID 0.375 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.203 Inch and an outside diameter of 0.375 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 6.3 lb
Display Name WAV-24791
Finish None
Inside Diameter 0.203 in
Material Spring Steel
Maximum Deflection at 100% Height 0.011 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.375 in
Outside Height 0.031 in
SKU WAV-24791CS
T 0.005 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 2.86 kg
Display Name WAV-24791
Finish None
Inside Diameter 5.16 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.28 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 9.53 mm
Outside Height 0.79 mm
SKU WAV-24791CS
T 0.13 mm
