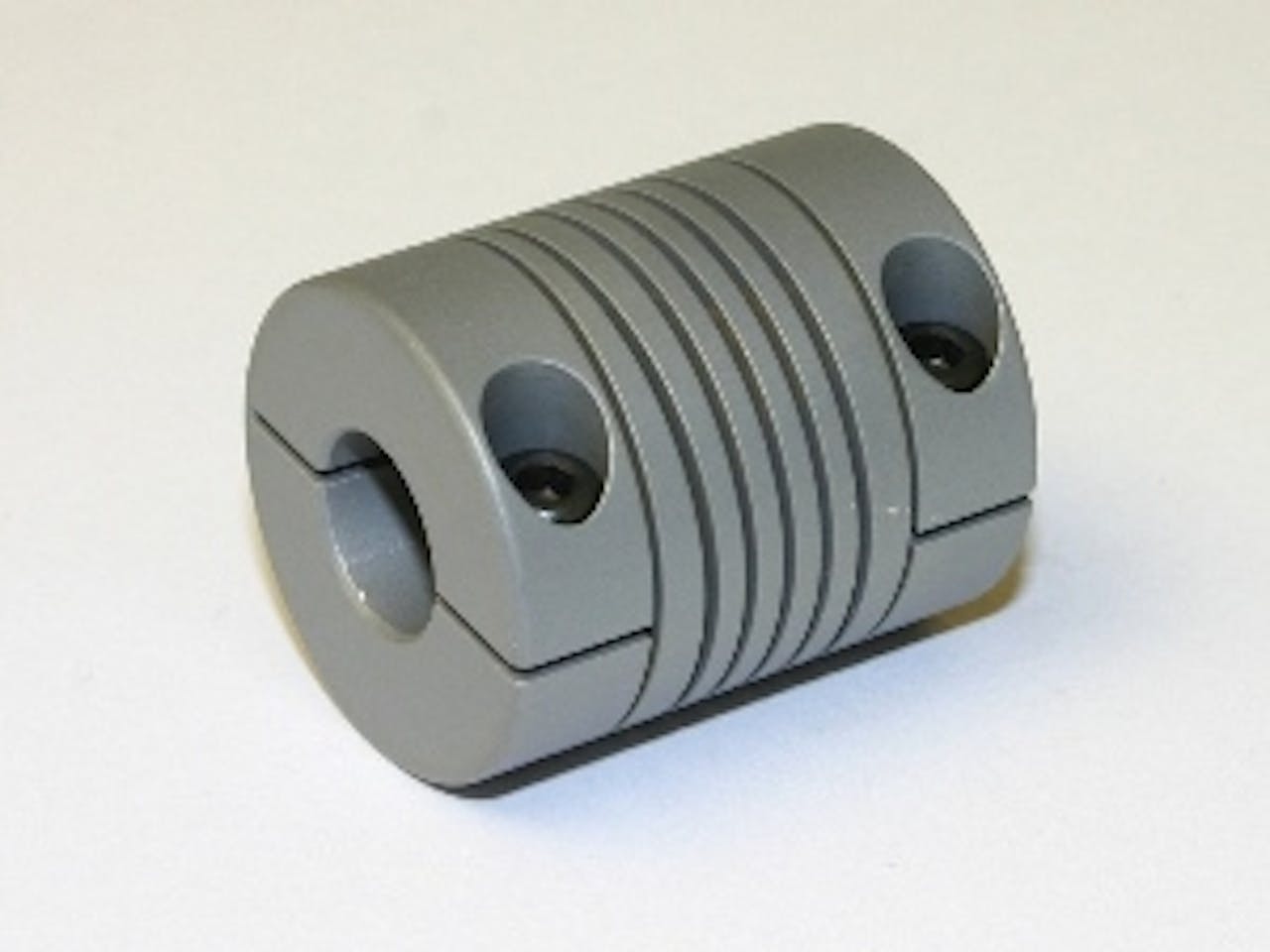

WAC20-4mm-4mm - 28 Millimeter 7075-T6 Aluminum Alloy Flexible Shaft Coupling

Machined coupling manufactured from 7075-T6 Aluminum Alloy with Integral Clamp end attachments. This 28 Millimeter flexible shaft coupling has a 20 Millimeter O.D. and 4 Millimeter and 4 Millimeter bores.

Download CAD
Unit System
Specs (in standard)
Label Value
Angular Misalignment 5 deg
Axial Motion 0.0098 in
Bore Size 0.1575 in
Bore Size 2 0.1575 in
Brand Helical Products
Center Line 0.1496 in
Display Name WAC20-4mm-4mm
End Type Integral Clamp
Finish Clear Anodized
Hex Size 0.0984 in
Inertia 0.0955 lbin/sec sq
Length 1.1024 in
Material 7075-T6 Aluminum Alloy
Max Torque 7.4243 lbs/in
Model Number WAC20-4mm-4mm
Non-Reversing Torque 3.7122 lbs/in
Operating Temperature 199.4 F
Outside Diameter 0.7874 in
Parallel Offset 0.0098 in
Rate (Rotational) 0.607 lbf/deg
Rated Speed 10000 rpm
Reversing Torque 1.8846 lbs/in
SKU WAC20-4mm-4mm
Screw Size M3x.5
Seating Torque 11.422 lbs/in
Series WAC
Specs (in metric)
Label Value
Angular Misalignment 5 deg
Axial Motion 0.25 mm
Bore Size 4 mm
Bore Size 2 4 mm
Brand Helical Products
Center Line 3.8 mm
Display Name WAC20-4mm-4mm
End Type Integral Clamp
Finish Clear Anodized
Hex Size 2.5 mm
Inertia 0.11 kgcm/sec sq
Length 28 mm
Material 7075-T6 Aluminum Alloy
Max Torque 1.3 N-m
Model Number WAC20-4mm-4mm
Non-Reversing Torque 0.65 N-m
Operating Temperature 93 C
Outside Diameter 20 mm
Parallel Offset 0.25 mm
Rate (Rotational) 2.7 N/deg
Rated Speed 10000 rpm
Reversing Torque 0.33 N-m
SKU WAC20-4mm-4mm
Screw Size M3x.5
Seating Torque 2 N-m
Series WAC
