W-100CS - 1.19" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

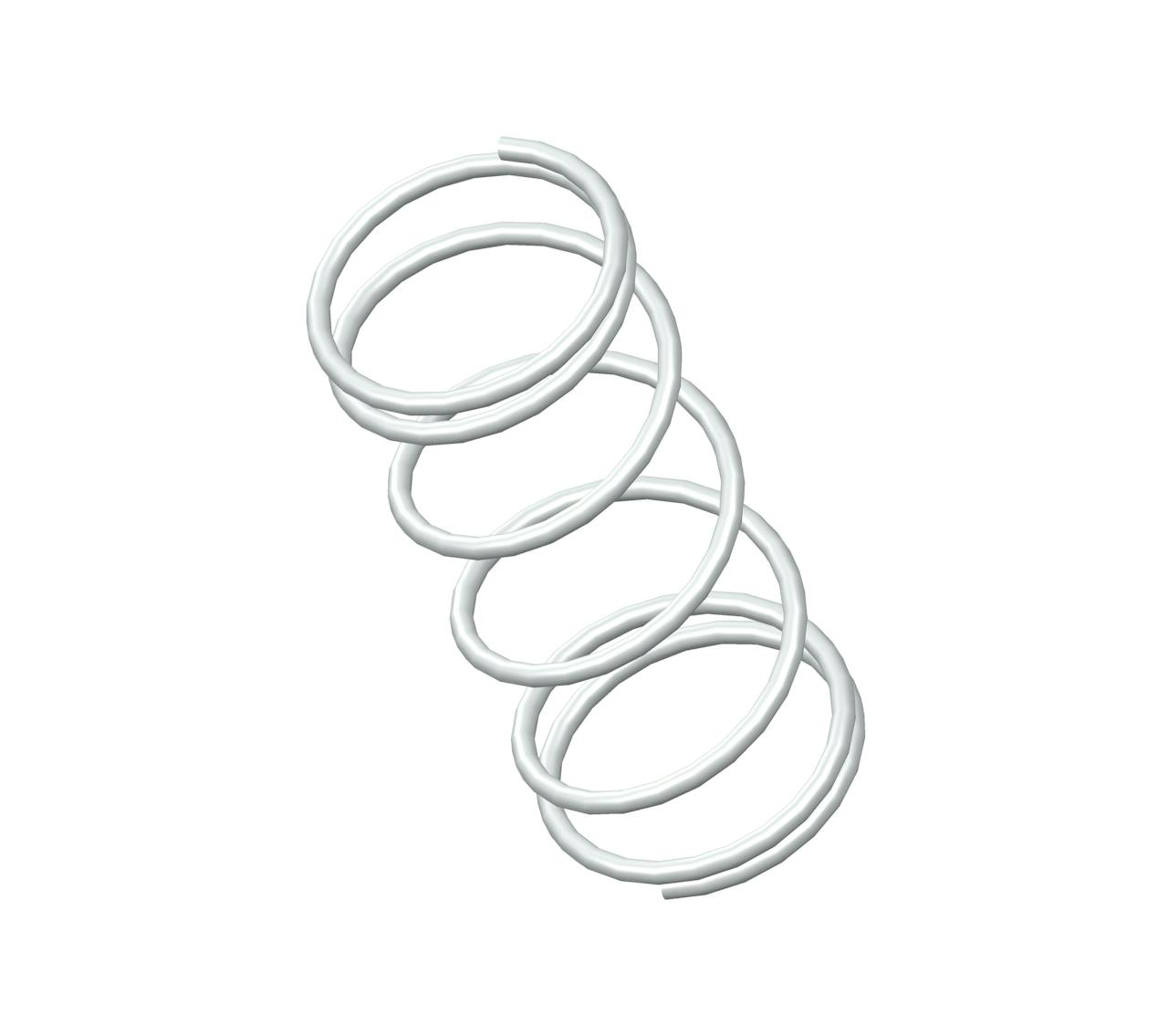

Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.43".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name W-100
Ends Closed
Finish None
Free Length 1.19 in
Inside Diameter 0.43 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 4.1 lbs/in
SKU W-100CS
Solid Length 0.26 in
Suggested Max Deflection 0.76 in
Suggested Max Load 3.1 lbf
Total Coils 6.5
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name W-100
Ends Closed
Finish None
Free Length 30.23 mm
Inside Diameter 10.92 mm
Material 302/304 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.72 N/mm
SKU W-100CS
Solid Length 6.6 mm
Suggested Max Deflection 19.3 mm
Suggested Max Load 13.79 N
Total Coils 6.5
Wire Diameter 0.89 mm
The W-100CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.035" diameter 302/304 stainless steel, the W-100 spring design exhibits reliable strength across its 6.5 active coils, withstanding repeated compression cycles with a maximum load of 3.1 lbf without succumbing to fatigue.

We manufacture the W-100 design to provide a compression spring that is 1.19" long at rest and provides a consistent rate of 4.1 lbs/in along its recommended maximum of 0.76" deflection. For best results, your application should fully accommodate the inner (0.43") and outer (0.5") diameters of this spring and be designed for its closed end configuration.
