Century Spring

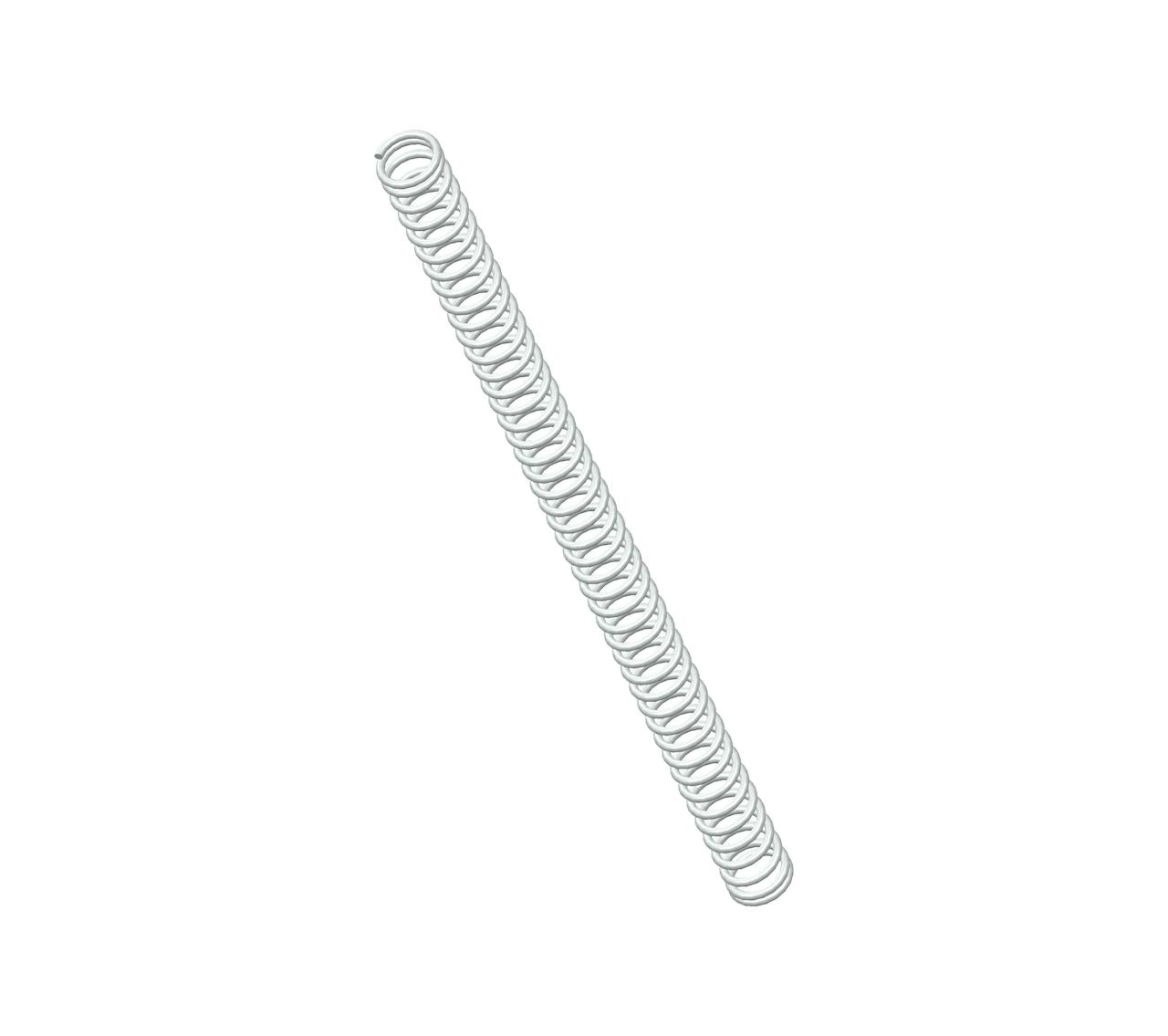

VV-54CS - 3.13" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 45 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.14".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name VV-54
Ends Closed
Finish None
Free Length 3.13 in
Inside Diameter 0.14 in
Material 302/304 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 2.2 lbs/in
SKU VV-54CS
Solid Length 1.1 in
Suggested Max Deflection 1.3 in
Suggested Max Load 2.9 lbf
Total Coils 45
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name VV-54
Ends Closed
Finish None
Free Length 79.5 mm
Inside Diameter 3.56 mm
Material 302/304 Stainless Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.39 N/mm
SKU VV-54CS
Solid Length 27.94 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 12.9 N
Total Coils 45
Wire Diameter 0.61 mm
The VV-54CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.024" diameter 302/304 stainless steel, the VV-54 spring design exhibits reliable strength across its 45 active coils, withstanding repeated compression cycles with a maximum load of 2.9 lbf without succumbing to fatigue.

We manufacture the VV-54 design to provide a compression spring that is 3.13" long at rest and provides a consistent rate of 2.2 lbs/in along its recommended maximum of 1.3" deflection. For best results, your application should fully accommodate the inner (0.14") and outer (0.188") diameters of this spring and be designed for its closed end configuration.
