VV-38CS - 0.81" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

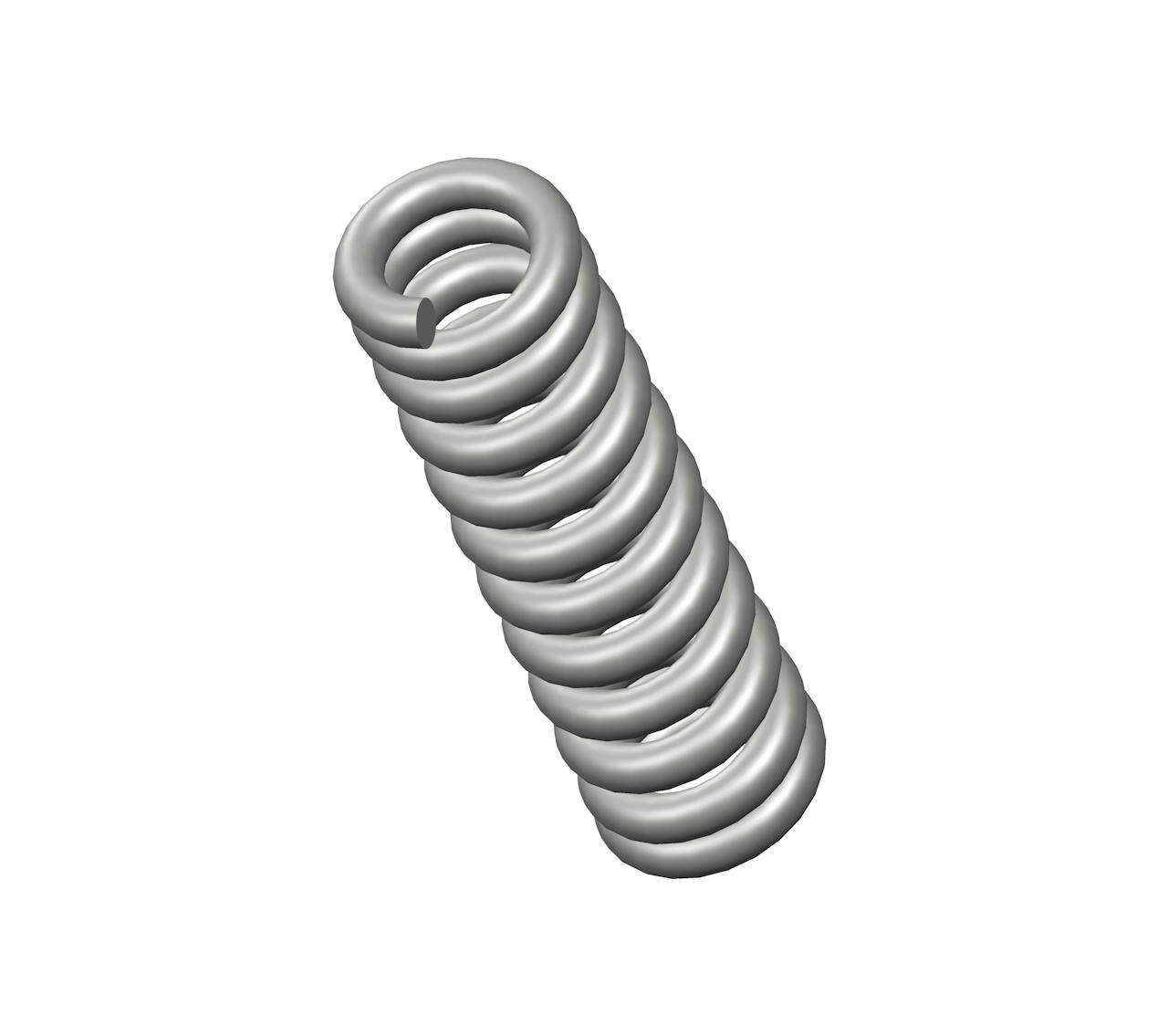

Compression spring manufactured from spring steel with 11.5 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.129".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name VV-38
Ends Closed
Finish Zinc
Free Length 0.81 in
Inside Diameter 0.129 in
Material Spring Steel
Outside Diameter 0.219 in
Part Type Standard
Rate 118 lbs/in
SKU VV-38CS
Solid Length 0.56 in
Suggested Max Deflection 0.13 in
Suggested Max Load 15 lbf
Total Coils 11.5
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name VV-38
Ends Closed
Finish Zinc
Free Length 20.57 mm
Inside Diameter 3.28 mm
Material Spring Steel
Outside Diameter 5.56 mm
Part Type Standard
Rate 20.66 N/mm
SKU VV-38CS
Solid Length 14.22 mm
Suggested Max Deflection 3.3 mm
Suggested Max Load 66.72 N
Total Coils 11.5
Wire Diameter 1.14 mm
The VV-38CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.045" diameter spring steel, the VV-38 spring design exhibits reliable strength across its 11.5 active coils, withstanding repeated compression cycles with a maximum load of 15 lbf without succumbing to fatigue.

We manufacture the VV-38 design to provide a compression spring that is 0.81" long at rest and provides a consistent rate of 118 lbs/in along its recommended maximum of 0.13" deflection. For best results, your application should fully accommodate the inner (0.129") and outer (0.219") diameters of this spring and be designed for its closed end configuration.
