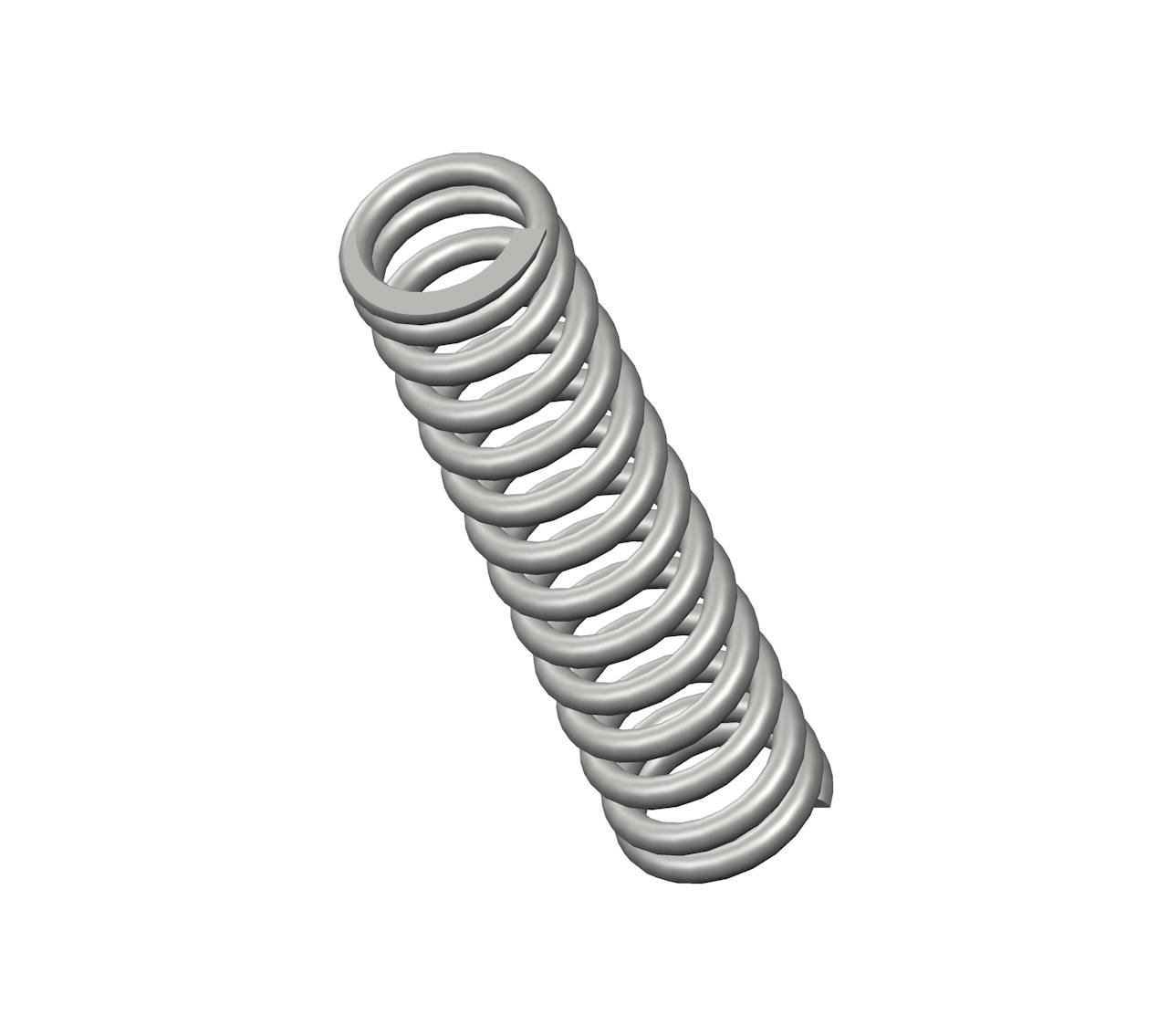

VV-29CS - 2" Hard Drawn Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from hard drawn with 14 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.34".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name VV-29
Ends Closed & Ground
Finish Zinc
Free Length 2 in
Inside Diameter 0.34 in
Material Spring Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 46 lbs/in
SKU VV-29CS
Solid Length 1.01 in
Suggested Max Deflection 0.55 in
Suggested Max Load 26 lbf
Total Coils 14
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name VV-29
Ends Closed & Ground
Finish Zinc
Free Length 50.8 mm
Inside Diameter 8.64 mm
Material Spring Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 8.05 N/mm
SKU VV-29CS
Solid Length 25.65 mm
Suggested Max Deflection 13.97 mm
Suggested Max Load 115.65 N
Total Coils 14
Wire Diameter 1.83 mm
The VV-29CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter hard drawn, the VV-29 spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 26 lbf without succumbing to fatigue.

We manufacture the VV-29 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 46 lbs/in along its recommended maximum of 0.55" deflection. For best results, your application should fully accommodate the inner (0.34") and outer (0.484") diameters of this spring and be designed for its closed & ground end configuration.
