V-63CS - 0.56" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

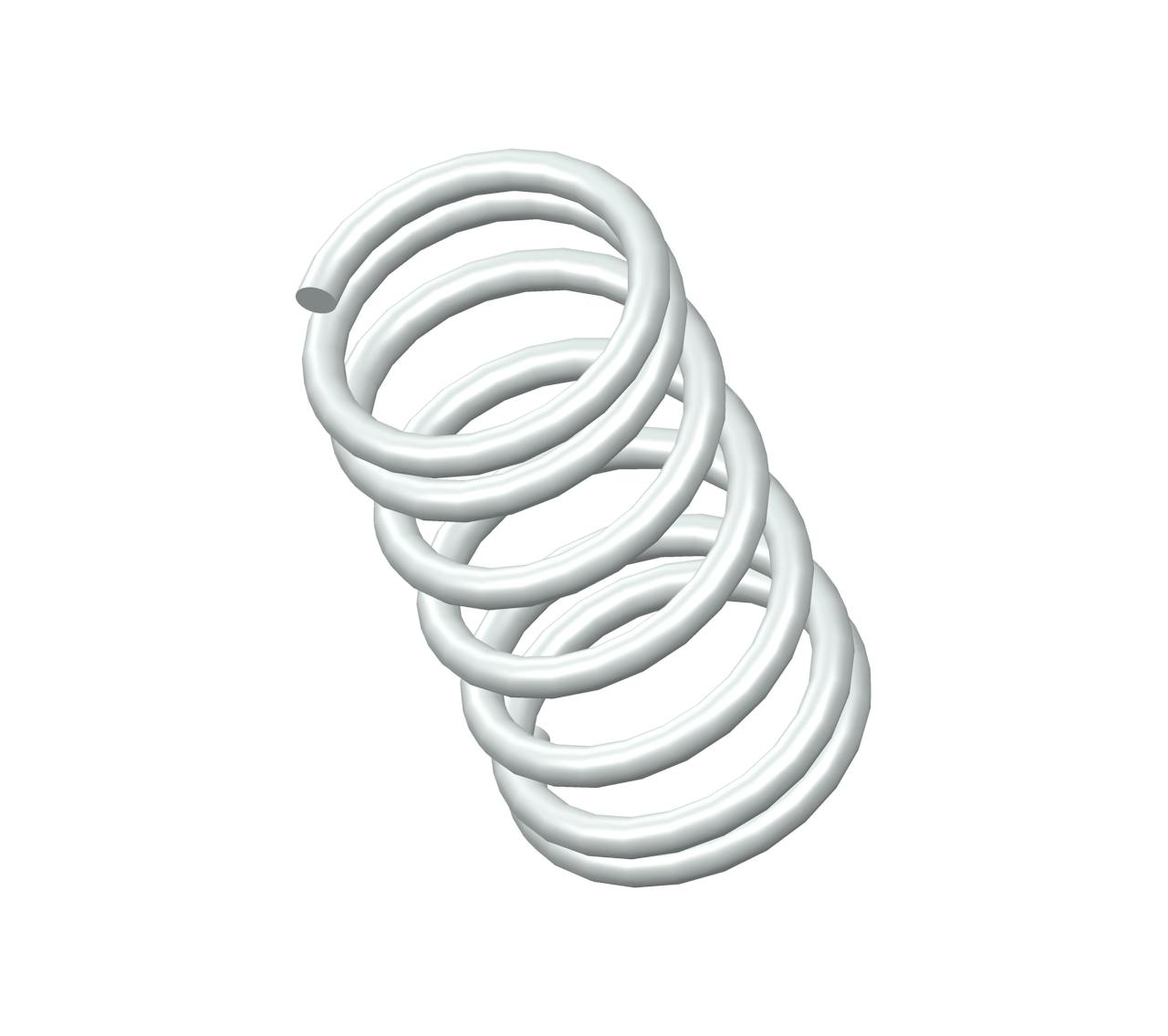

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.232".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | V-63 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.56 in |
| Inside Diameter | 0.232 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | V-63CS |
| Solid Length | 0.26 in |
| Suggested Max Deflection | 0.29 in |
| Suggested Max Load | 4.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | V-63 |
| Ends | Closed |
| Finish | None |
| Free Length | 14.22 mm |
| Inside Diameter | 5.89 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | V-63CS |
| Solid Length | 6.6 mm |
| Suggested Max Deflection | 7.37 mm |
| Suggested Max Load | 18.24 N |
| Total Coils | 7 |
| Wire Diameter | 0.81 mm |
The compression spring V-63CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the V-63 compression spring design exhibits exceptional tensile strength and resilience.
The V-63 design is manufactured with a free length of 0.56", with an outer diameter of 0.296", an inner diameter of 0.232", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The V-63CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring V-63 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
