Century Spring

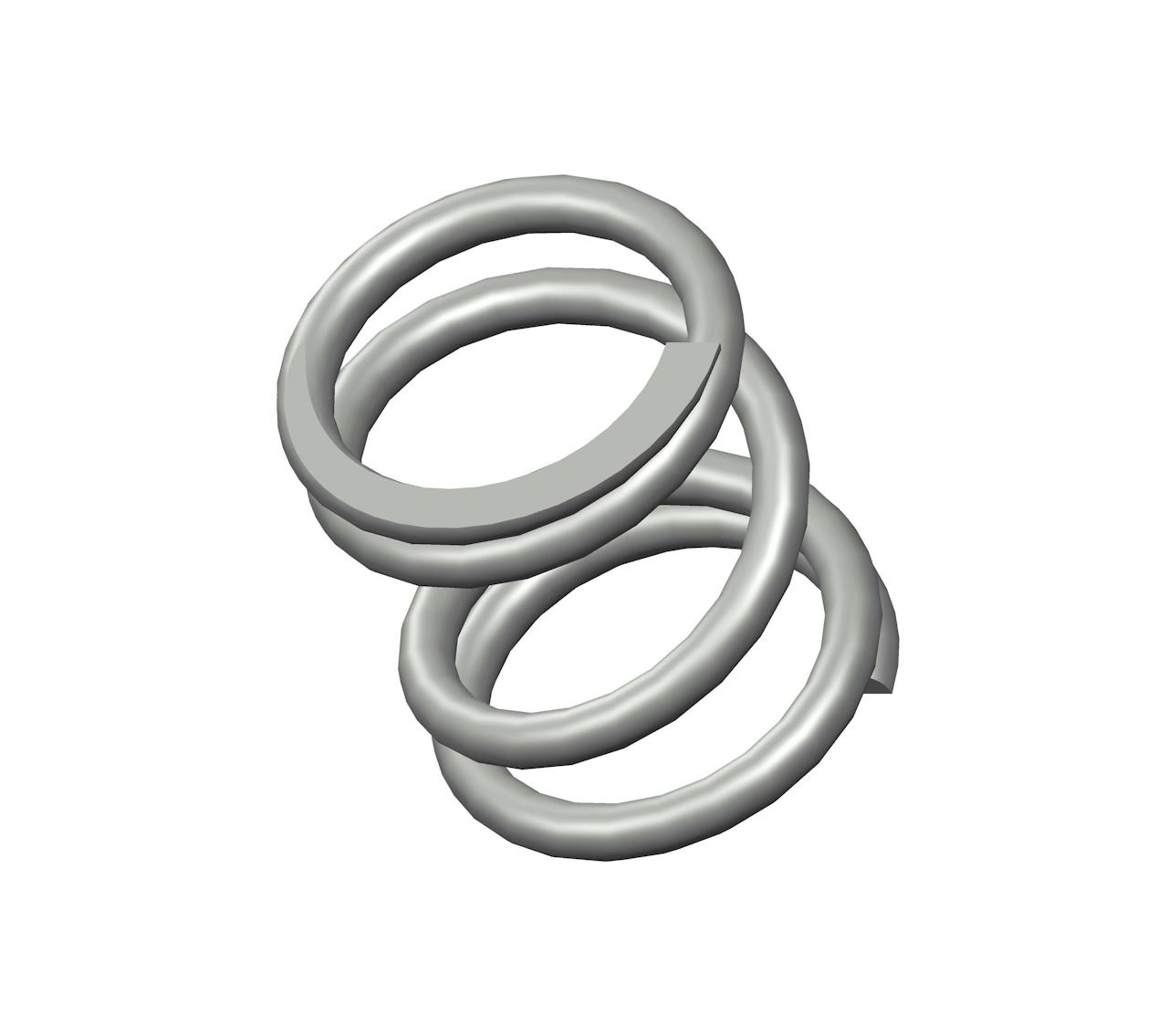

V-38CS - 0.44" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.285".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name V-38
Ends Closed & Ground
Finish Zinc
Free Length 0.44 in
Inside Diameter 0.285 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 82 lbs/in
SKU V-38CS
Solid Length 0.18 in
Suggested Max Deflection 0.11 in
Suggested Max Load 9.2 lbf
Total Coils 4
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name V-38
Ends Closed & Ground
Finish Zinc
Free Length 11.18 mm
Inside Diameter 7.24 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 14.36 N/mm
SKU V-38CS
Solid Length 4.57 mm
Suggested Max Deflection 2.79 mm
Suggested Max Load 40.92 N
Total Coils 4
Wire Diameter 1.14 mm
The compression spring V-38CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the V-38 compression spring design exhibits exceptional tensile strength and resilience.

The V-38 design is manufactured with a free length of 0.44", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 82 lbs/in.

The V-38CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring V-38 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
