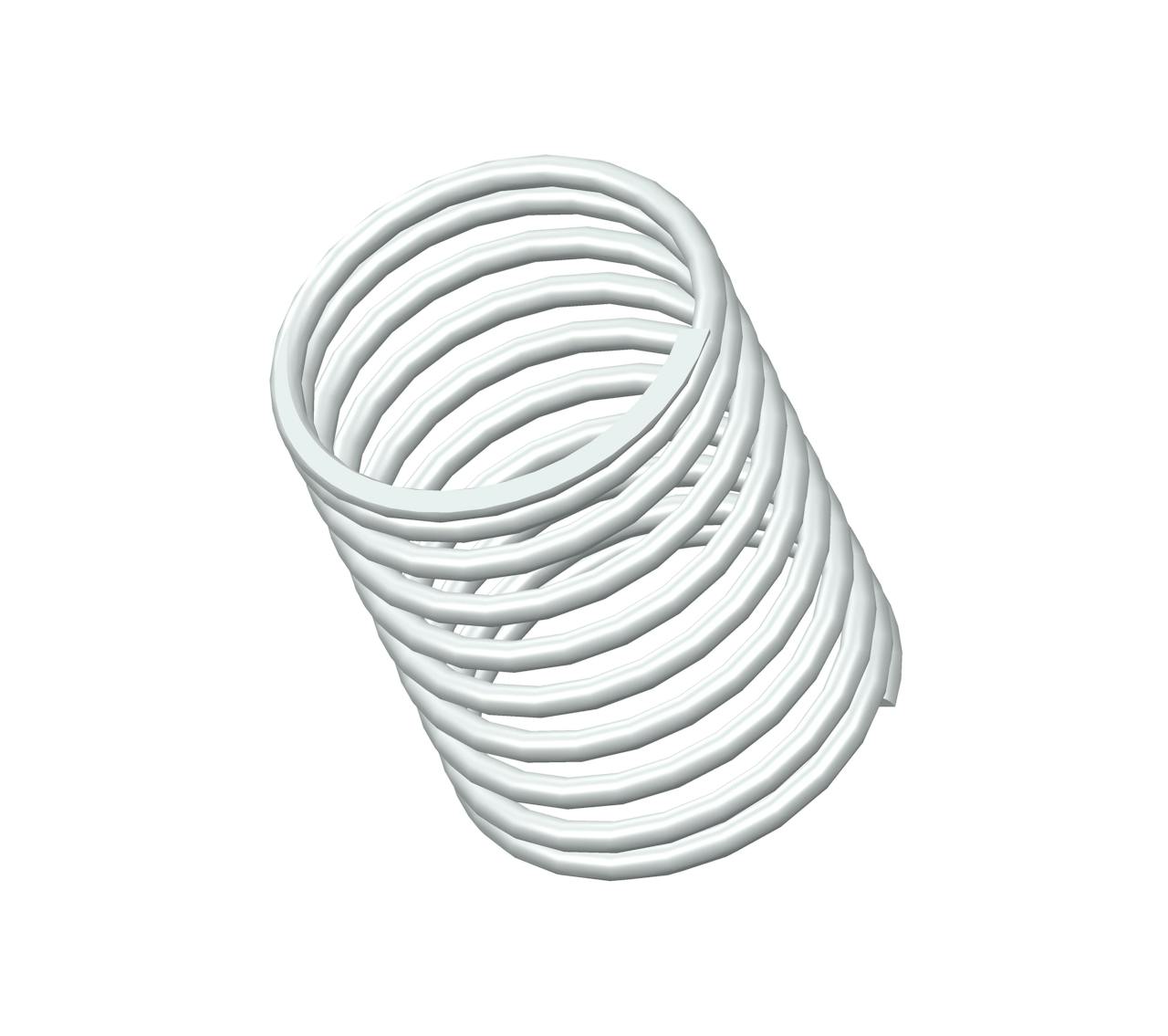

V-15CS - 0.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.256".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | V-15 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.38 in |
| Inside Diameter | 0.256 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 1.2 lbs/in |
| SKU | V-15CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.18 in |
| Suggested Max Load | 0.21 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | V-15 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 9.65 mm |
| Inside Diameter | 6.5 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 0.21 N/mm |
| SKU | V-15CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 4.57 mm |
| Suggested Max Load | 0.93 N |
| Total Coils | 10 |
| Wire Diameter | 0.51 mm |
The compression spring V-15CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the V-15 compression spring design exhibits exceptional tensile strength and resilience.
The V-15 design is manufactured with a free length of 0.38", with an outer diameter of 0.296", an inner diameter of 0.256", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.2 lbs/in.
The V-15CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring V-15 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
