U-97CS - 0.56" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

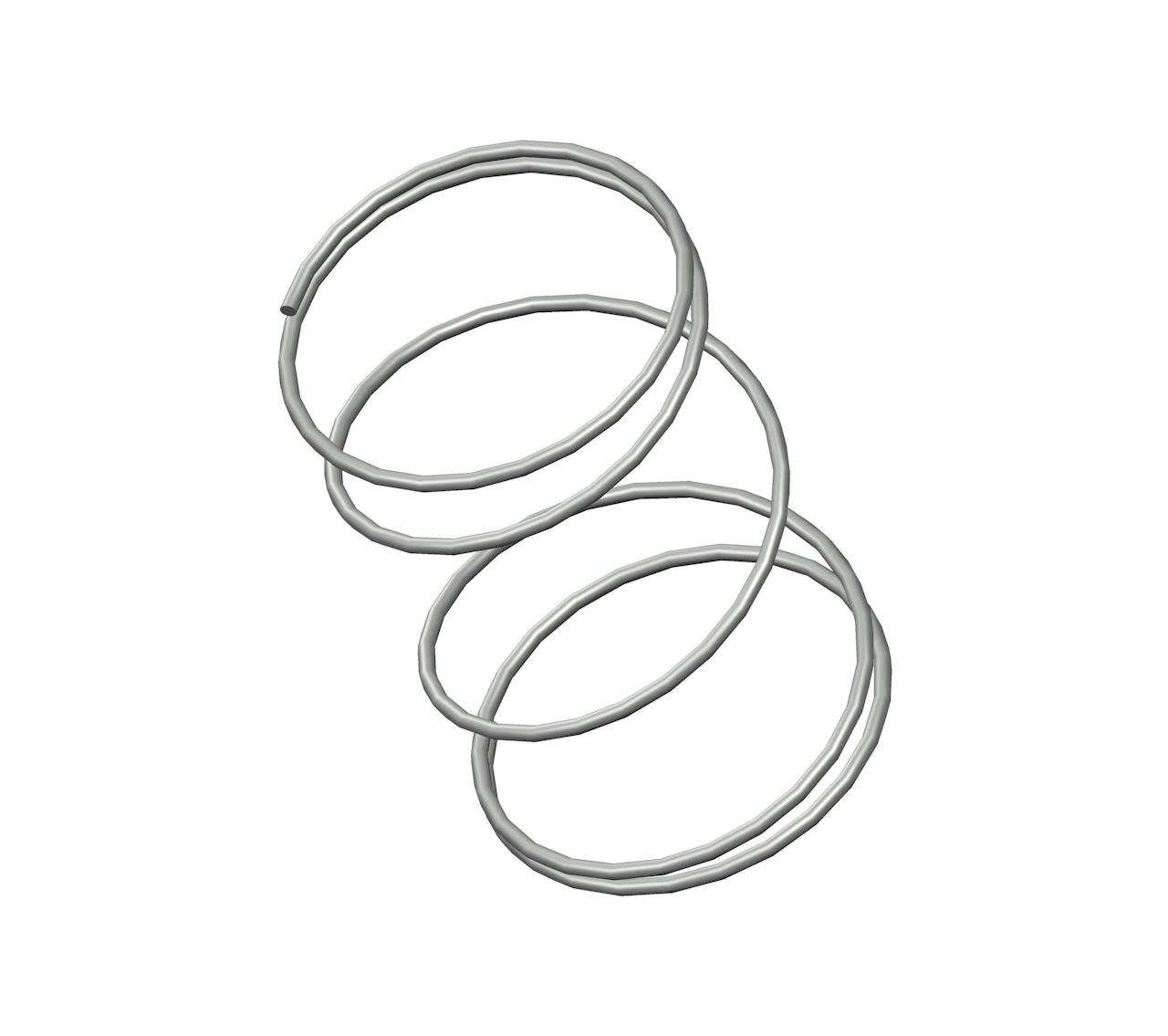

Compression spring manufactured from music wire with 5 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.332".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-97 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.56 in |
| Inside Diameter | 0.332 in |
| Material | Music Wire |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 0.45 lbs/in |
| SKU | U-97CS |
| Solid Length | 0.08 in |
| Suggested Max Deflection | 0.48 in |
| Suggested Max Load | 0.21 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-97 |
| Ends | Closed |
| Finish | None |
| Free Length | 14.22 mm |
| Inside Diameter | 8.43 mm |
| Material | Music Wire |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 0.08 N/mm |
| SKU | U-97CS |
| Solid Length | 2.03 mm |
| Suggested Max Deflection | 12.19 mm |
| Suggested Max Load | 0.93 N |
| Total Coils | 5 |
| Wire Diameter | 0.36 mm |
The compression spring U-97CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the U-97 compression spring design exhibits exceptional tensile strength and resilience.
The U-97 design is manufactured with a free length of 0.56", with an outer diameter of 0.36", an inner diameter of 0.332", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.45 lbs/in.
The U-97CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-97 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
