U-84CS - 0.61" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

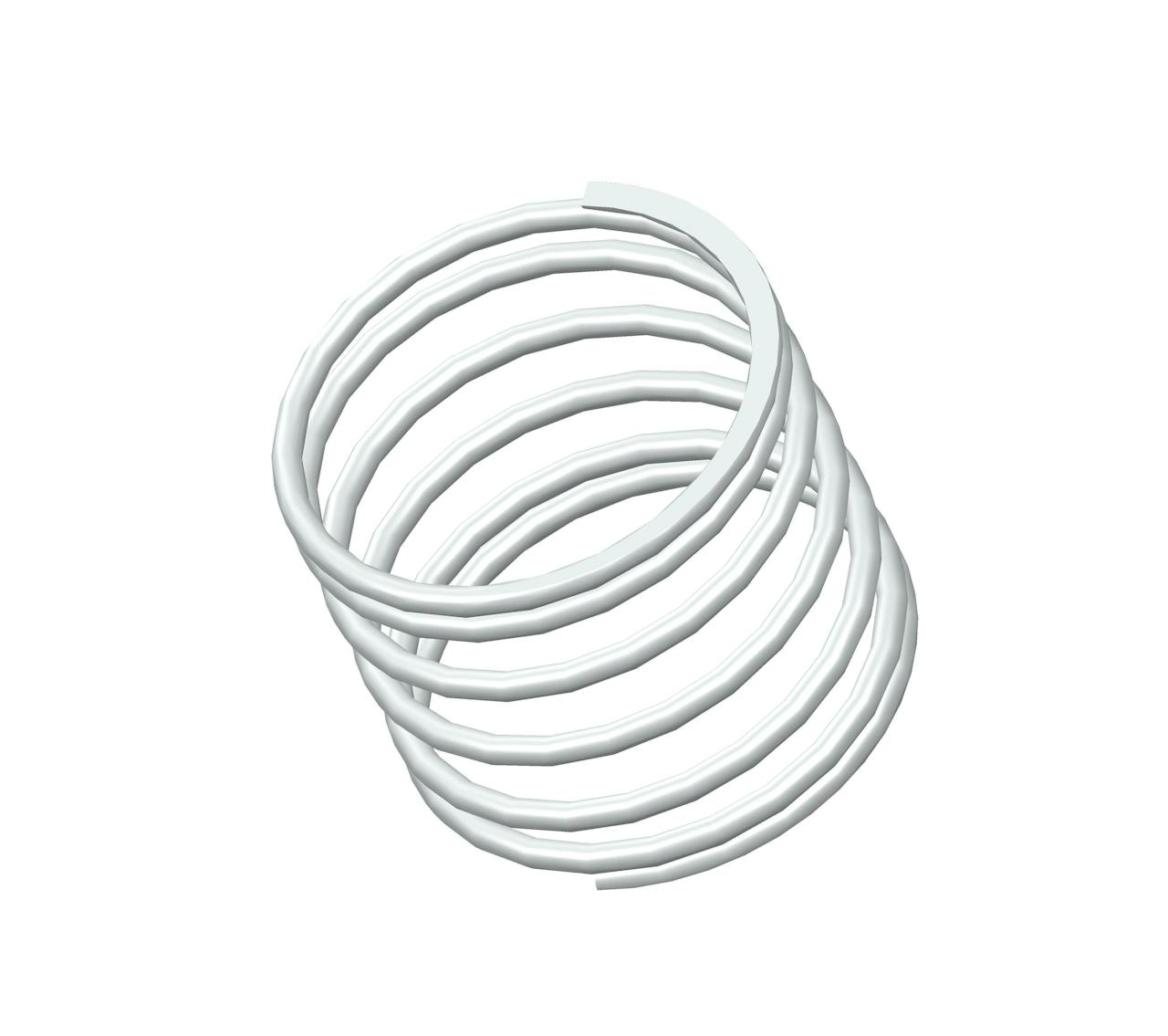

Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed ends. This spring features an O.D. of 0.719", and an I.D. of 0.637".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-84 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.61 in |
| Inside Diameter | 0.637 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.719 in |
| Part Type | Standard |
| Rate | 2.5 lbs/in |
| SKU | U-84CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.34 in |
| Suggested Max Load | 0.86 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-84 |
| Ends | Closed |
| Finish | None |
| Free Length | 15.49 mm |
| Inside Diameter | 16.18 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 18.26 mm |
| Part Type | Standard |
| Rate | 0.44 N/mm |
| SKU | U-84CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 8.64 mm |
| Suggested Max Load | 3.83 N |
| Total Coils | 6.5 |
| Wire Diameter | 1.04 mm |
The compression spring U-84CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the U-84 compression spring design exhibits exceptional tensile strength and resilience.
The U-84 design is manufactured with a free length of 0.61", with an outer diameter of 0.719", an inner diameter of 0.637", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.5 lbs/in.
The U-84CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-84 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The U-84 design is manufactured with a free length of 0.61", with an outer diameter of 0.719", an inner diameter of 0.637", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.5 lbs/in.
The U-84CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-84 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
